Woolen spinning and nonwowen
Streichgarn und Nonwoven

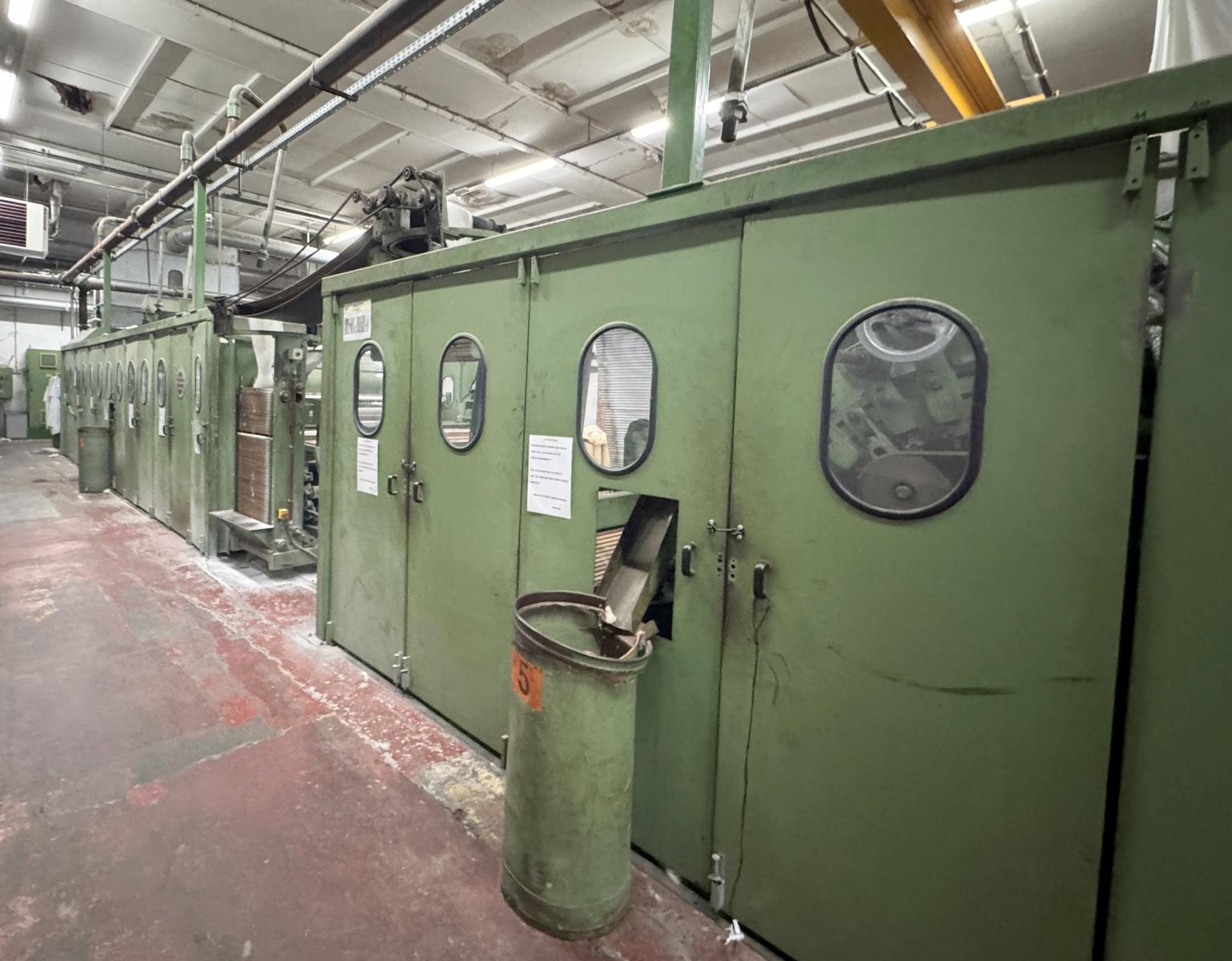

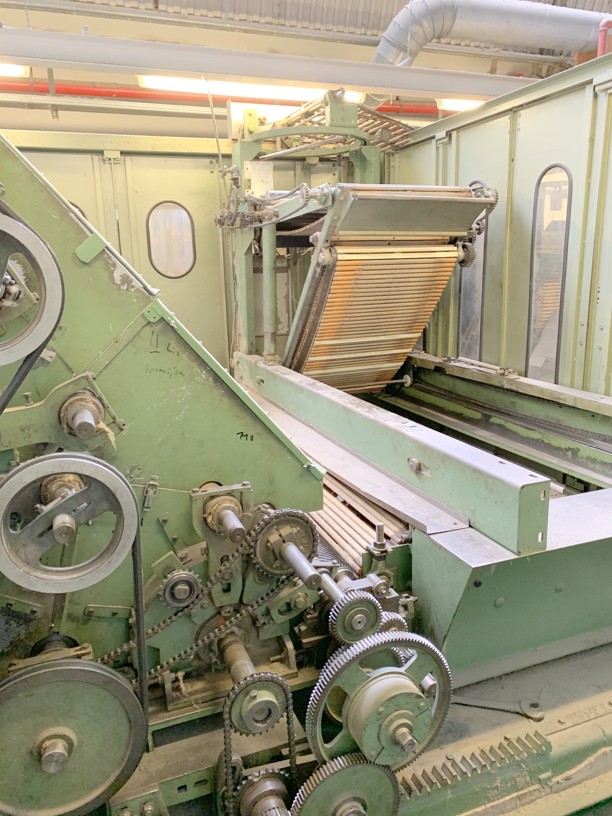

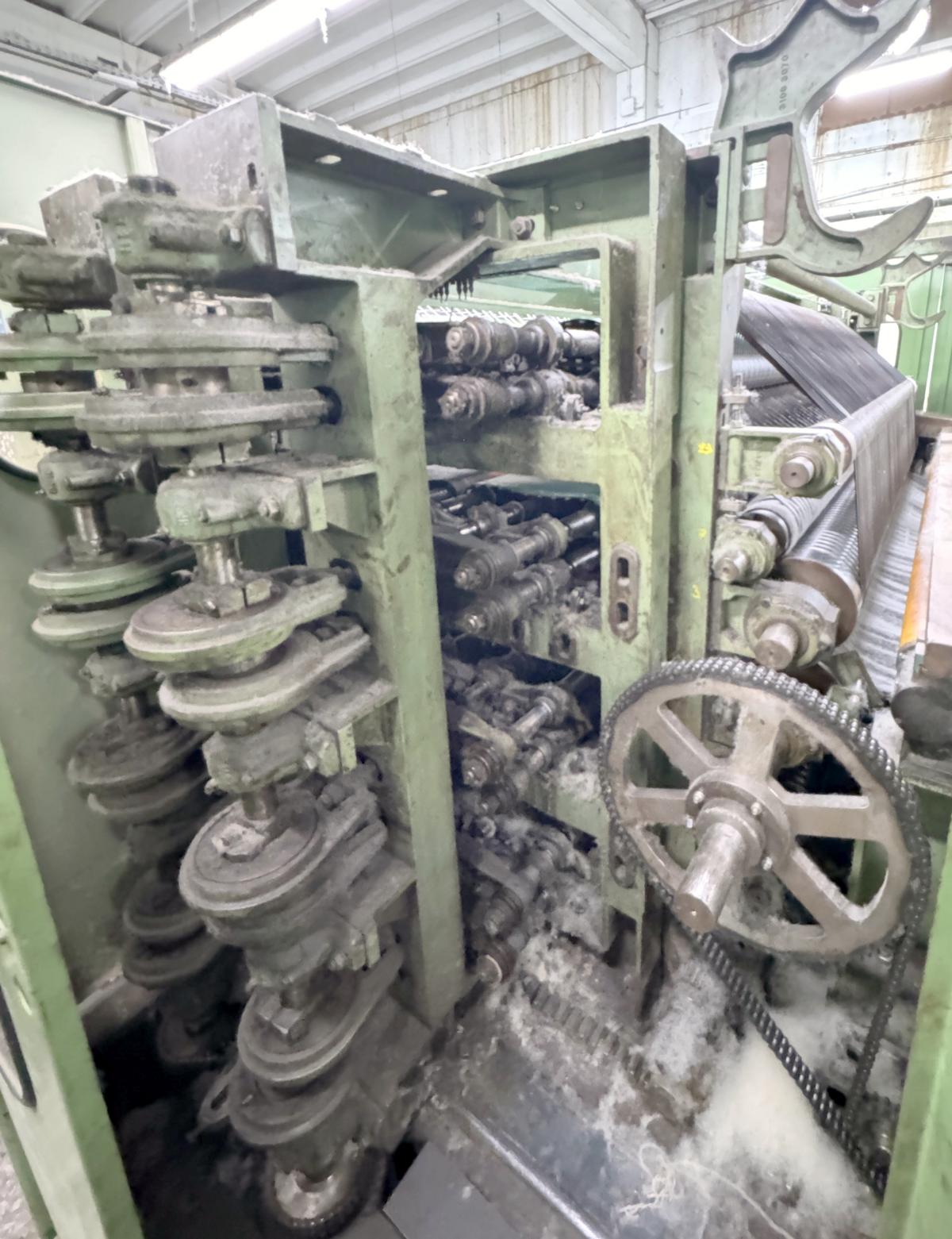

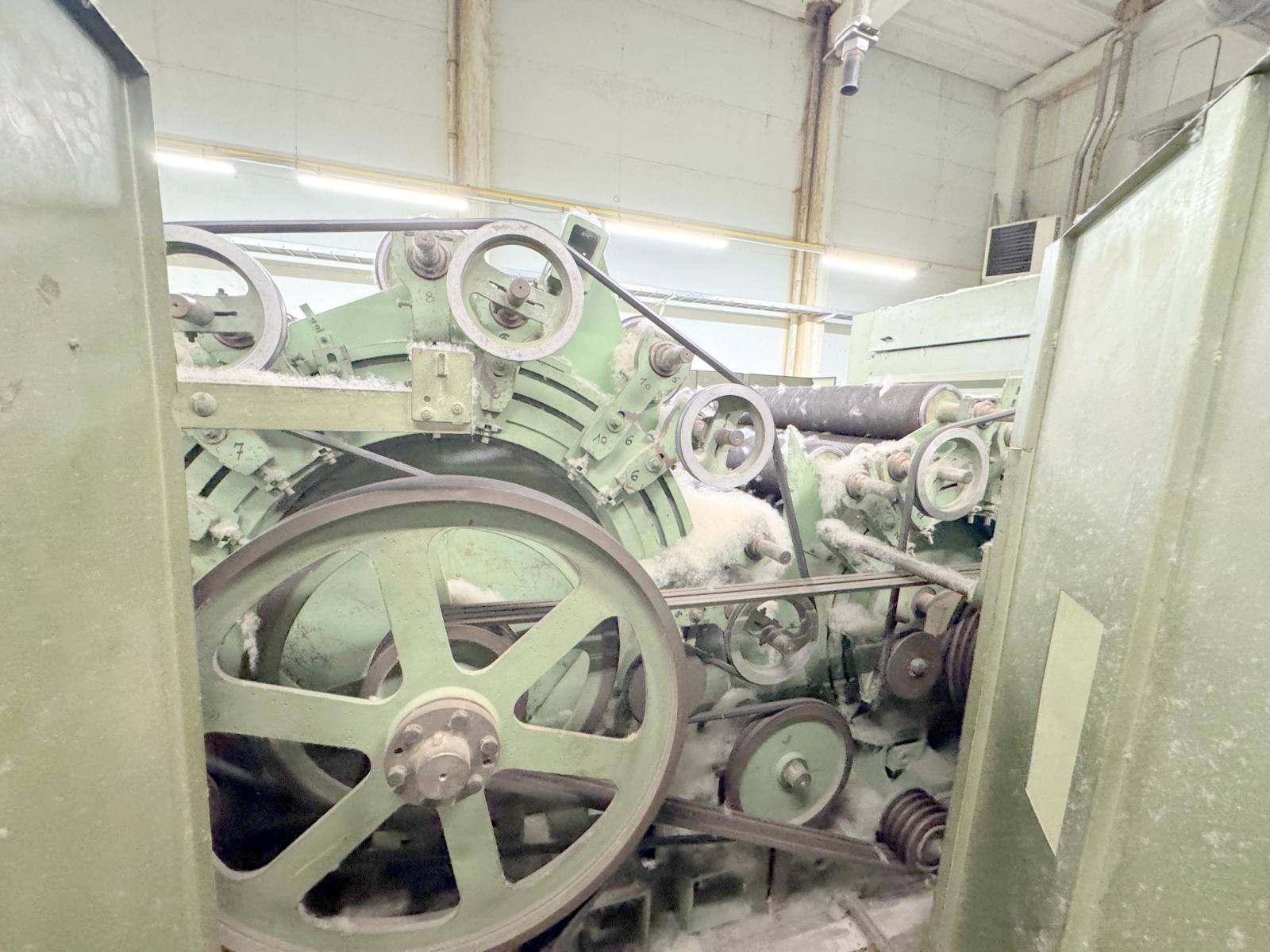

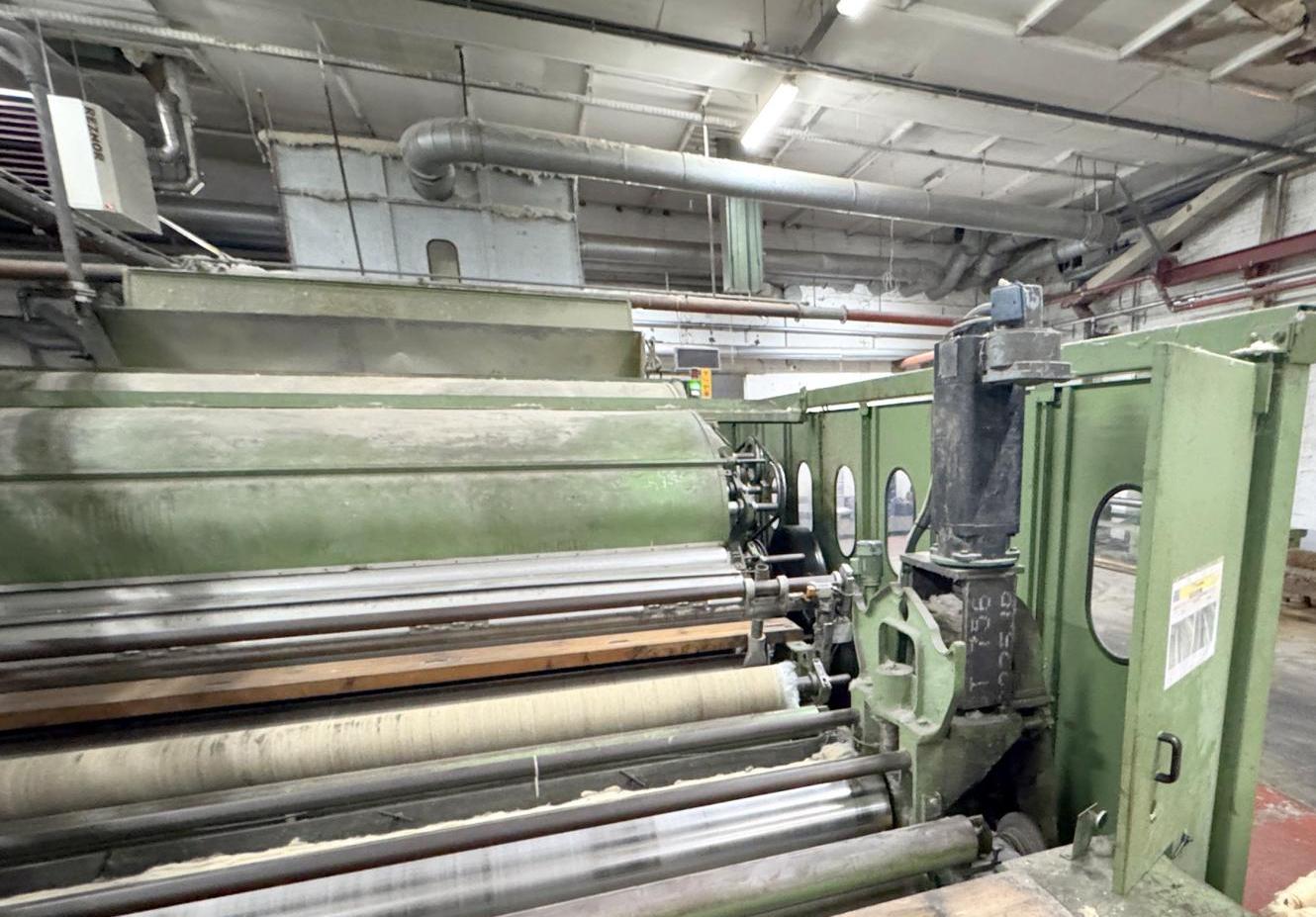

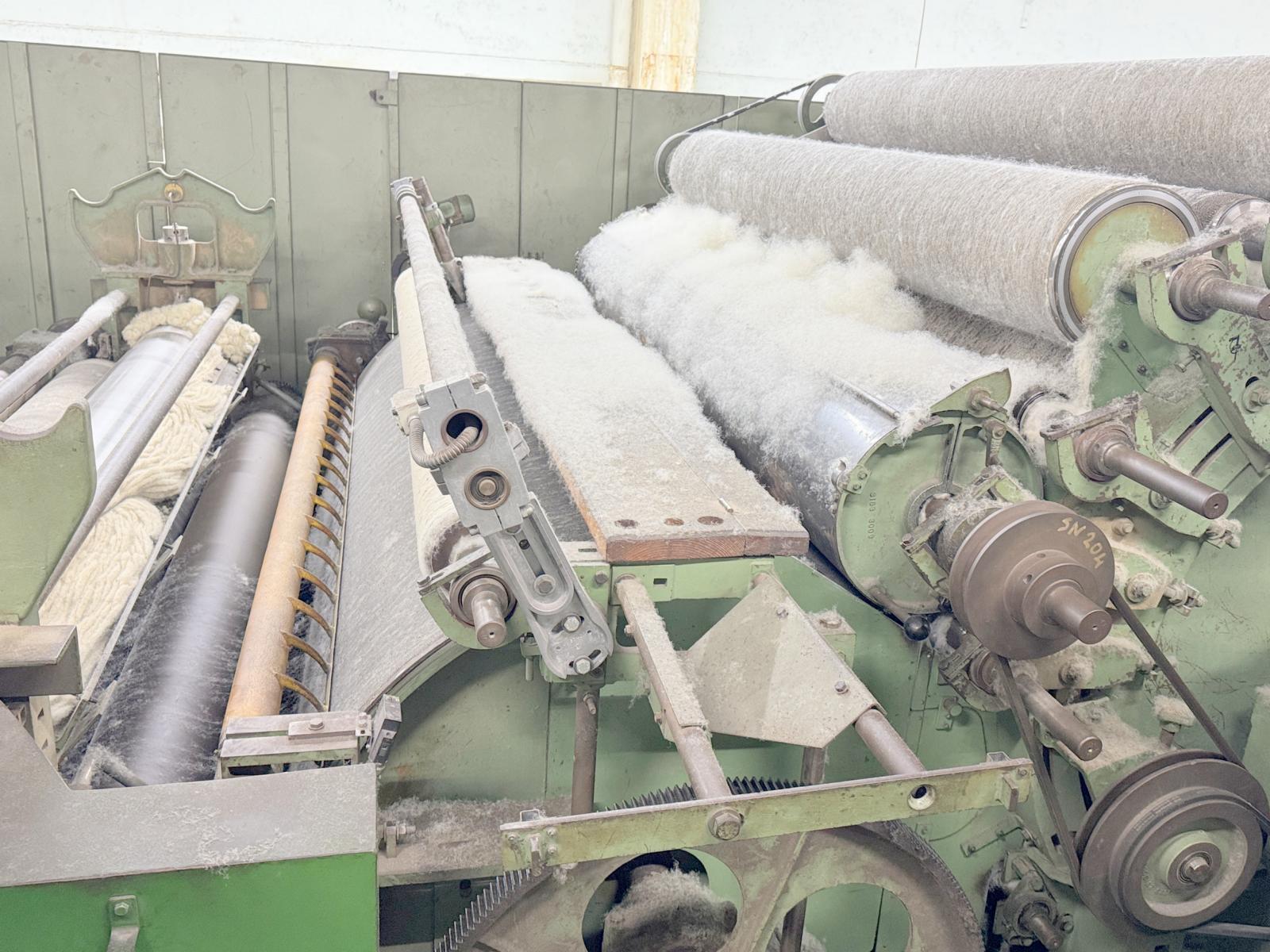

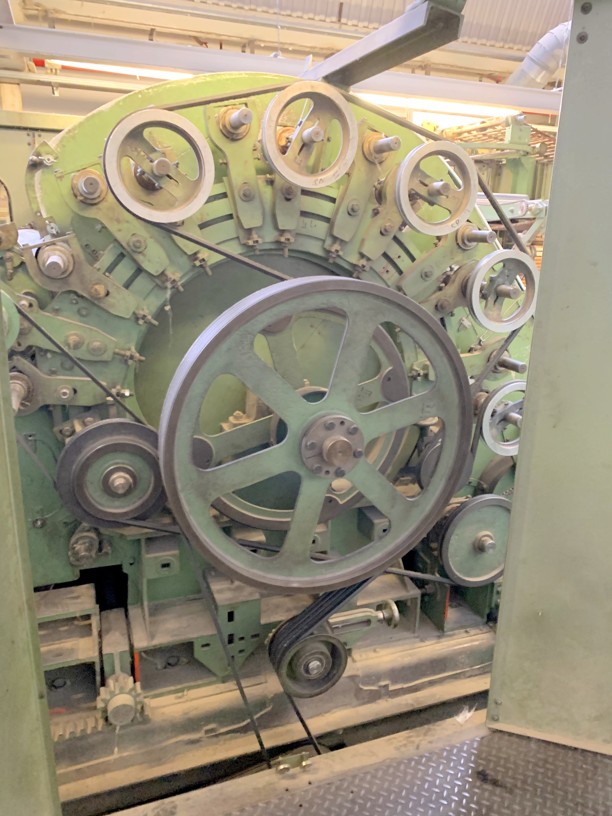

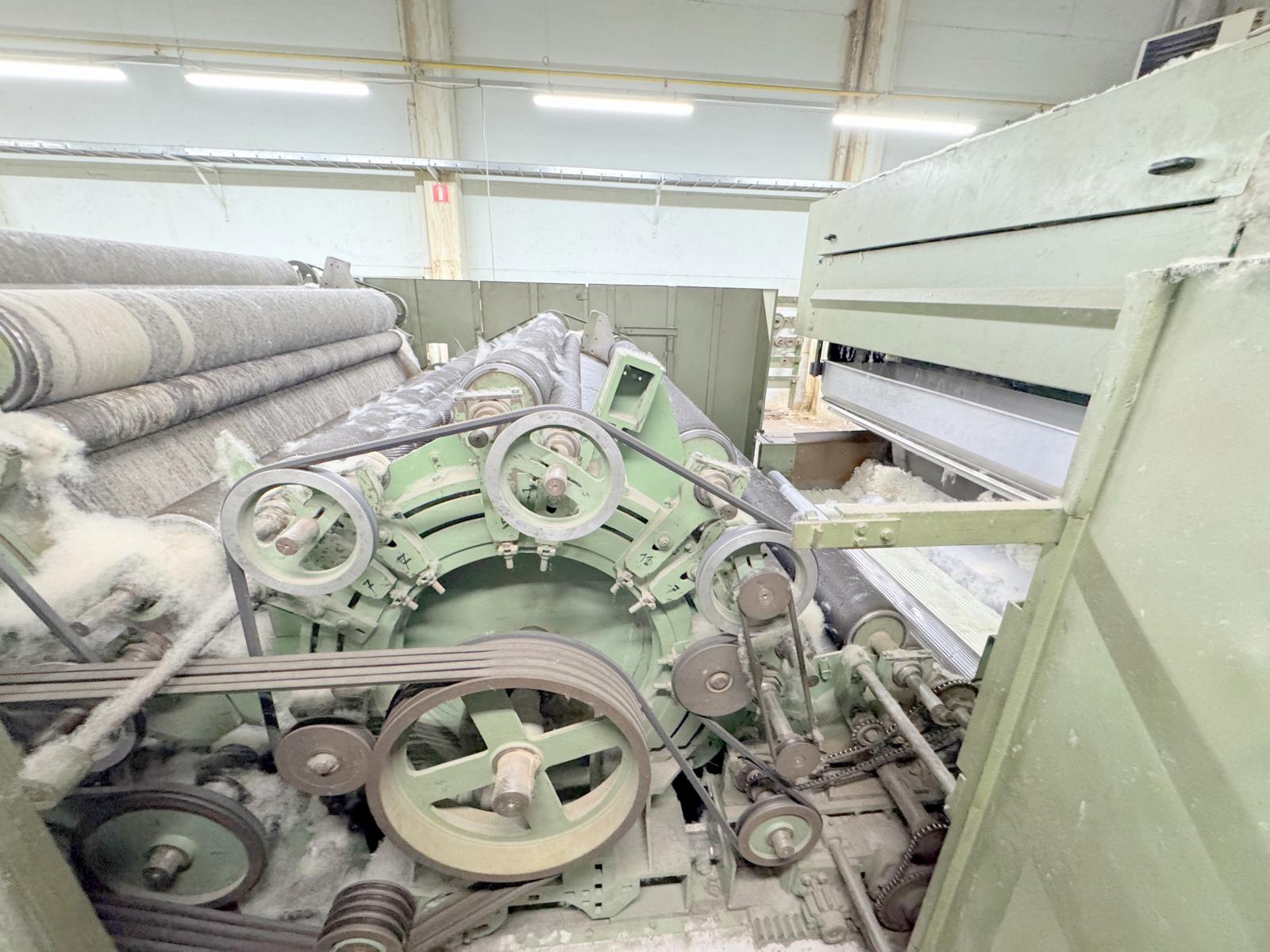

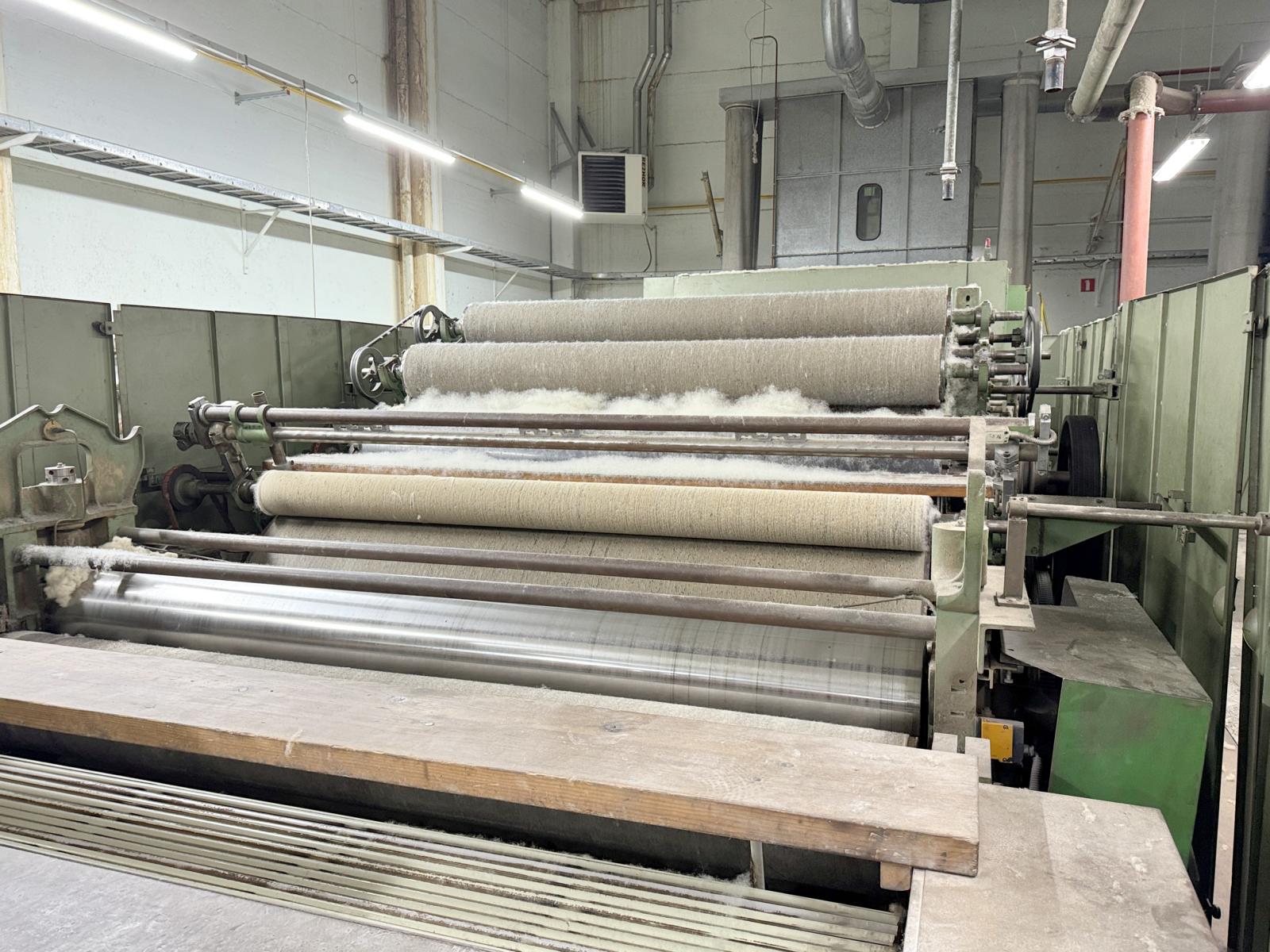

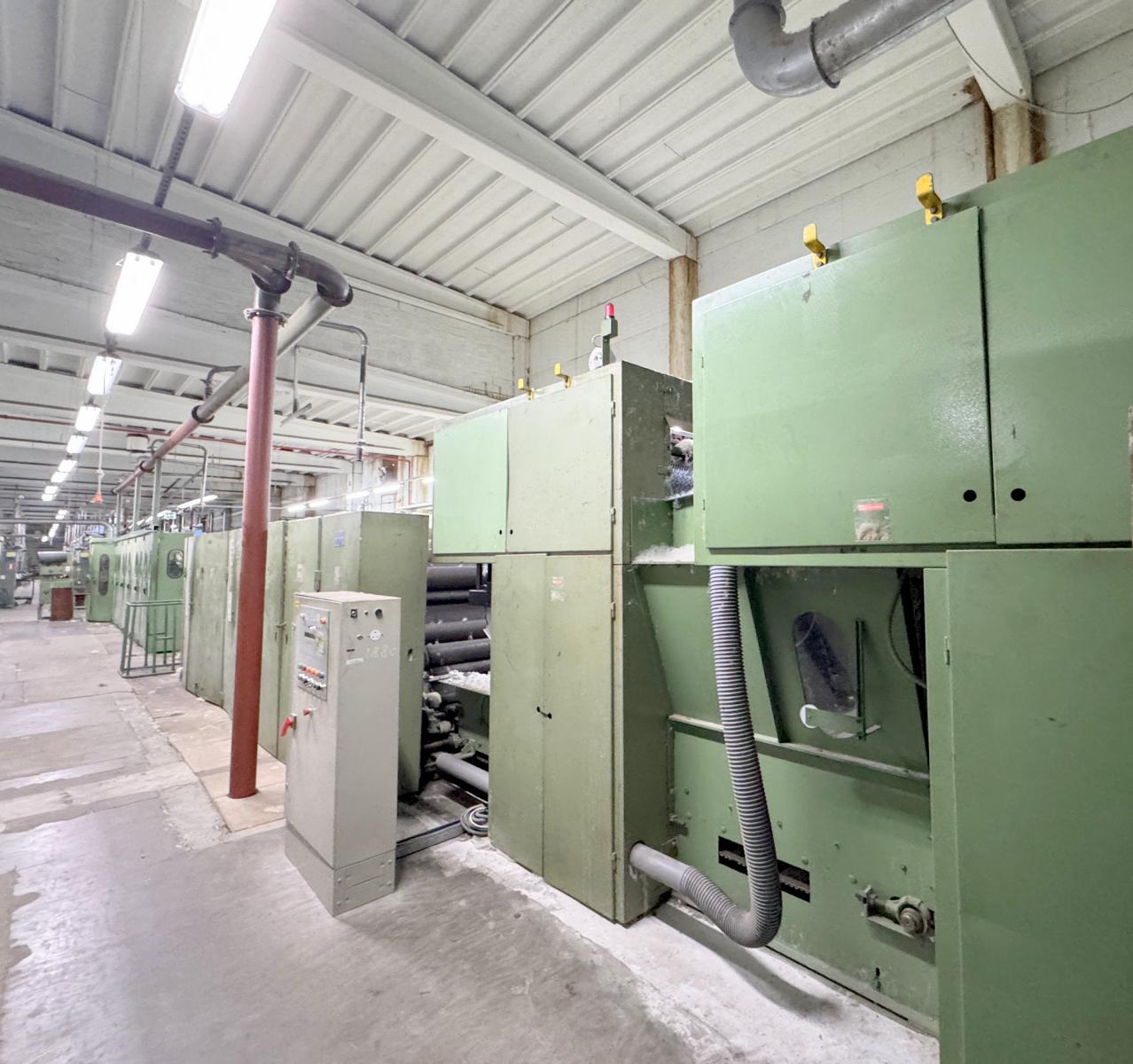

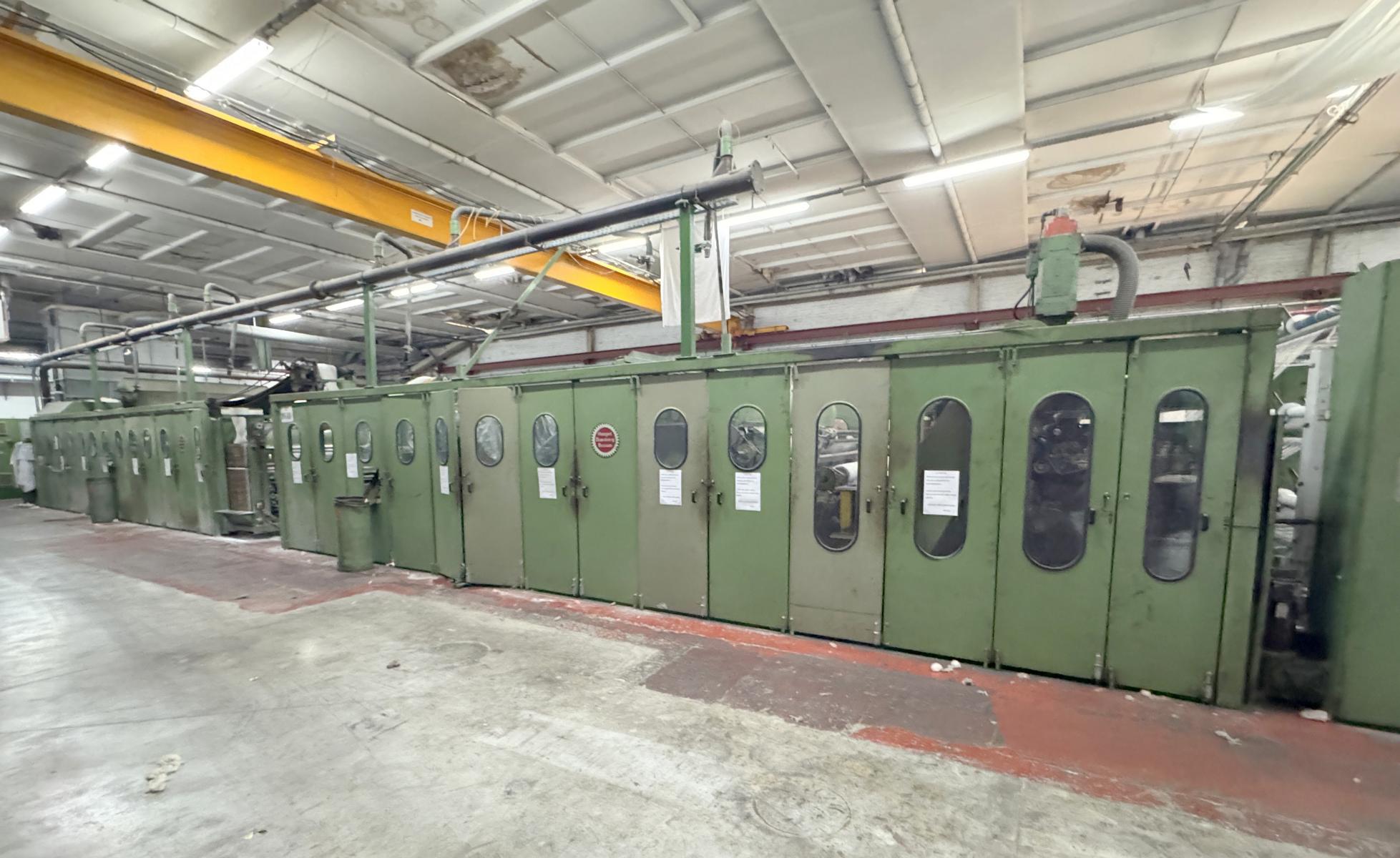

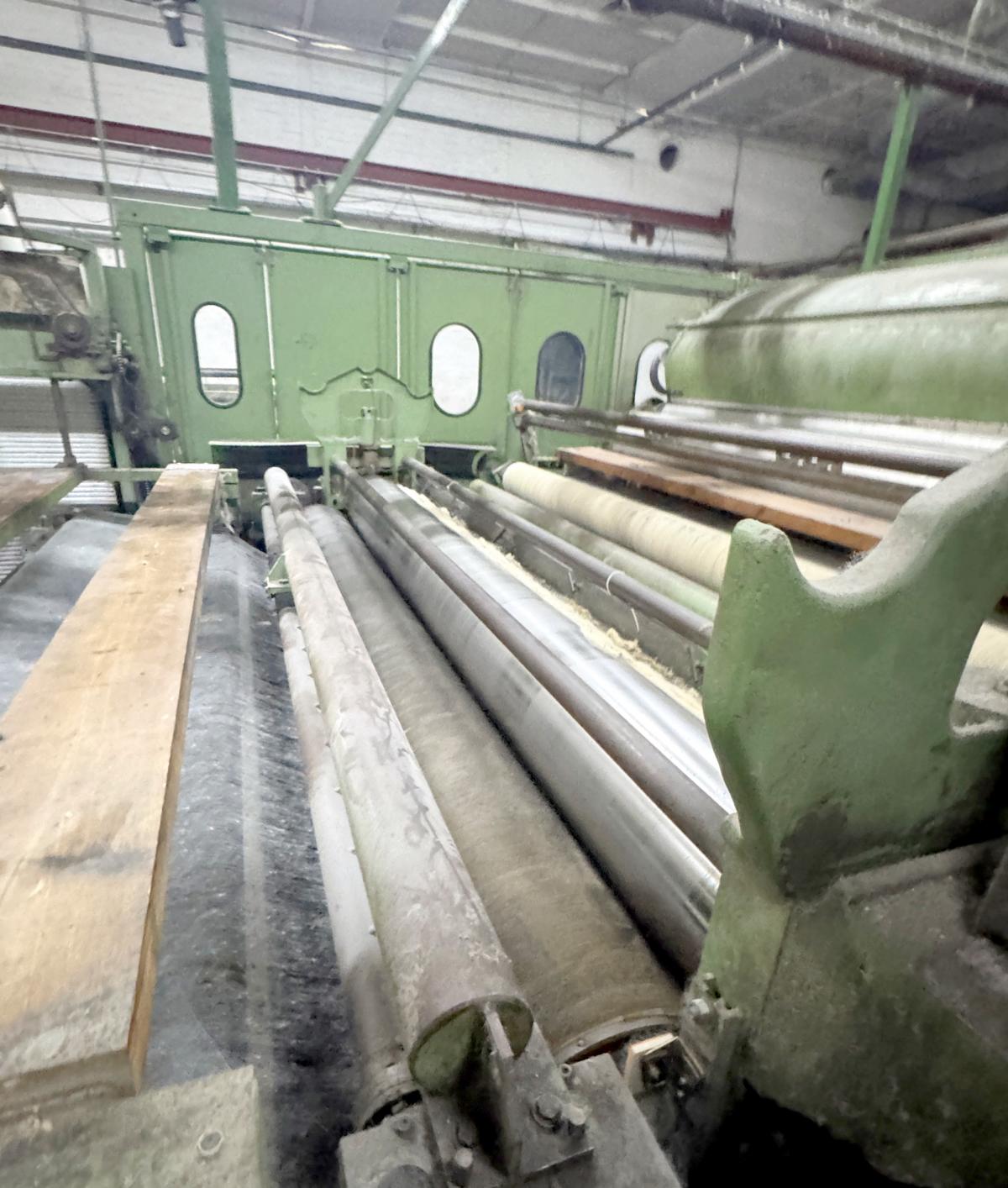

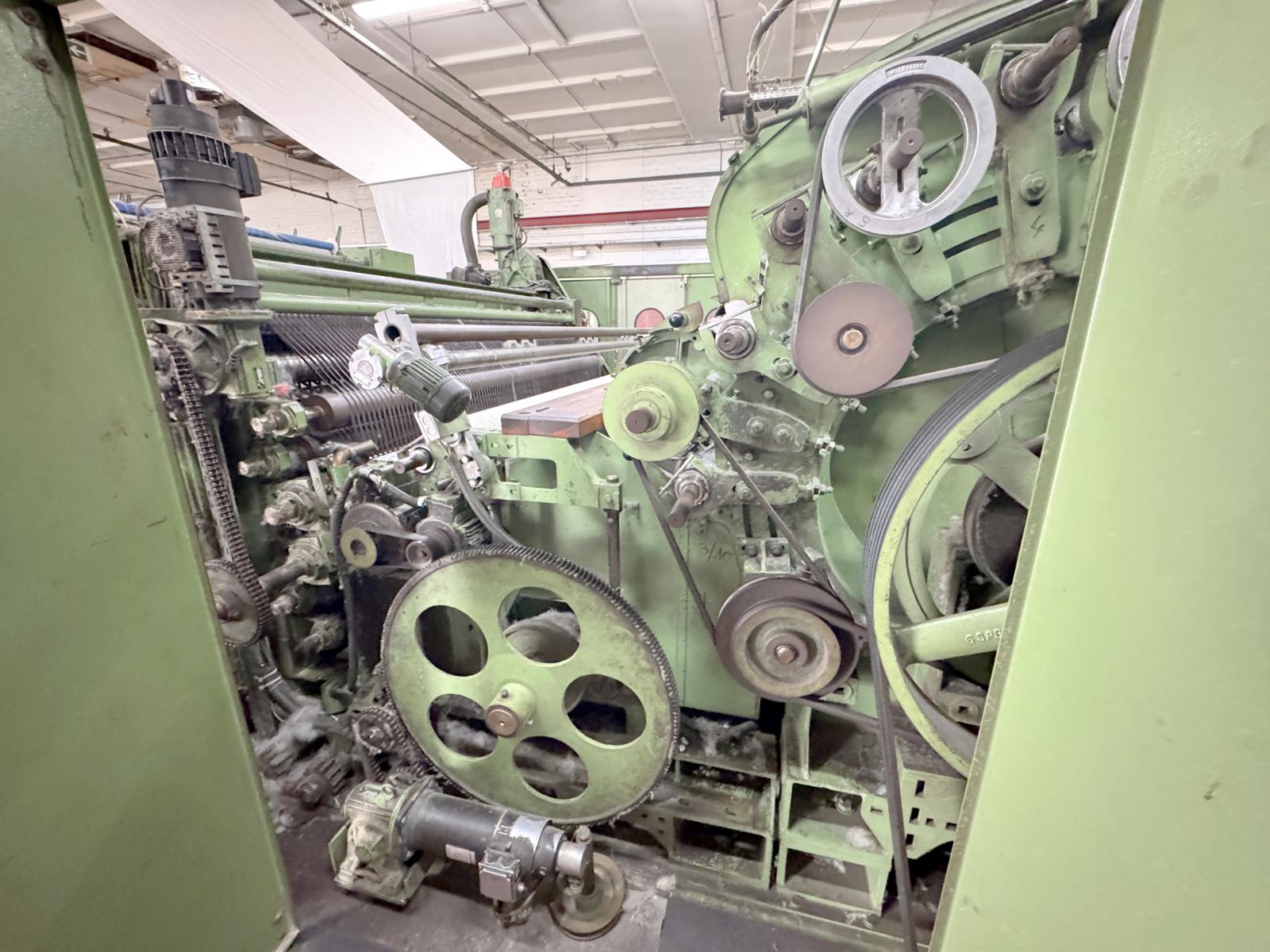

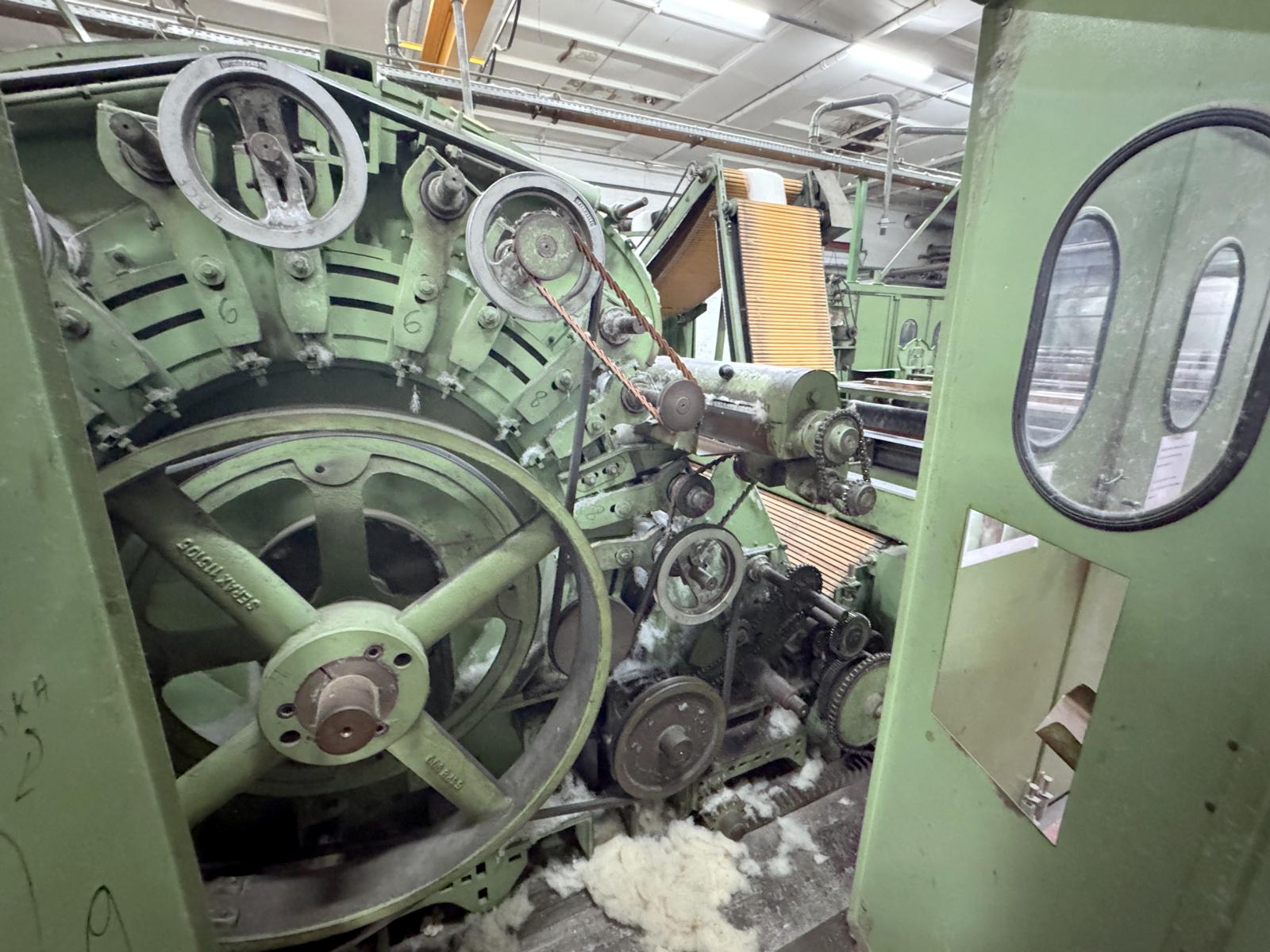

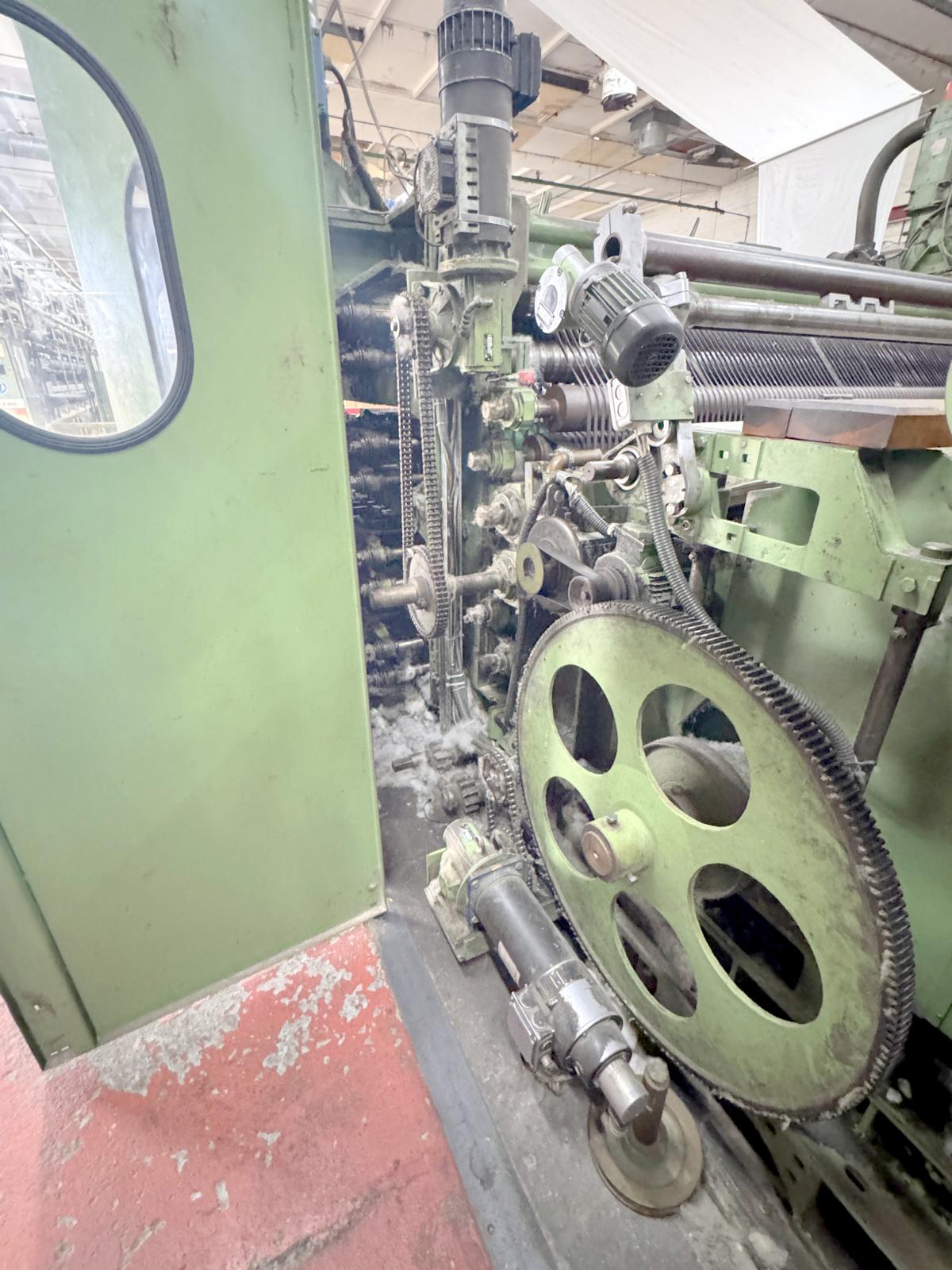

Specification:

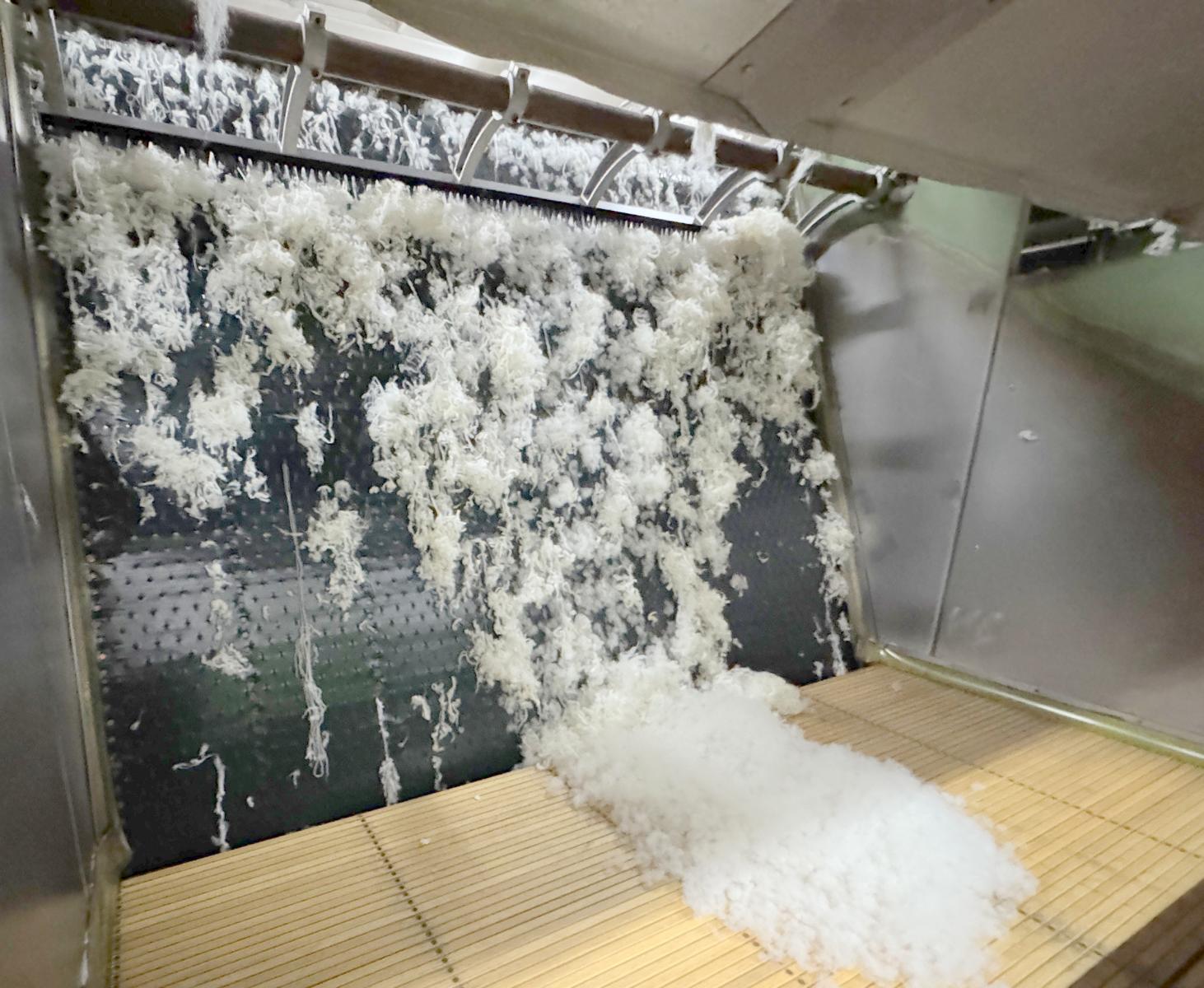

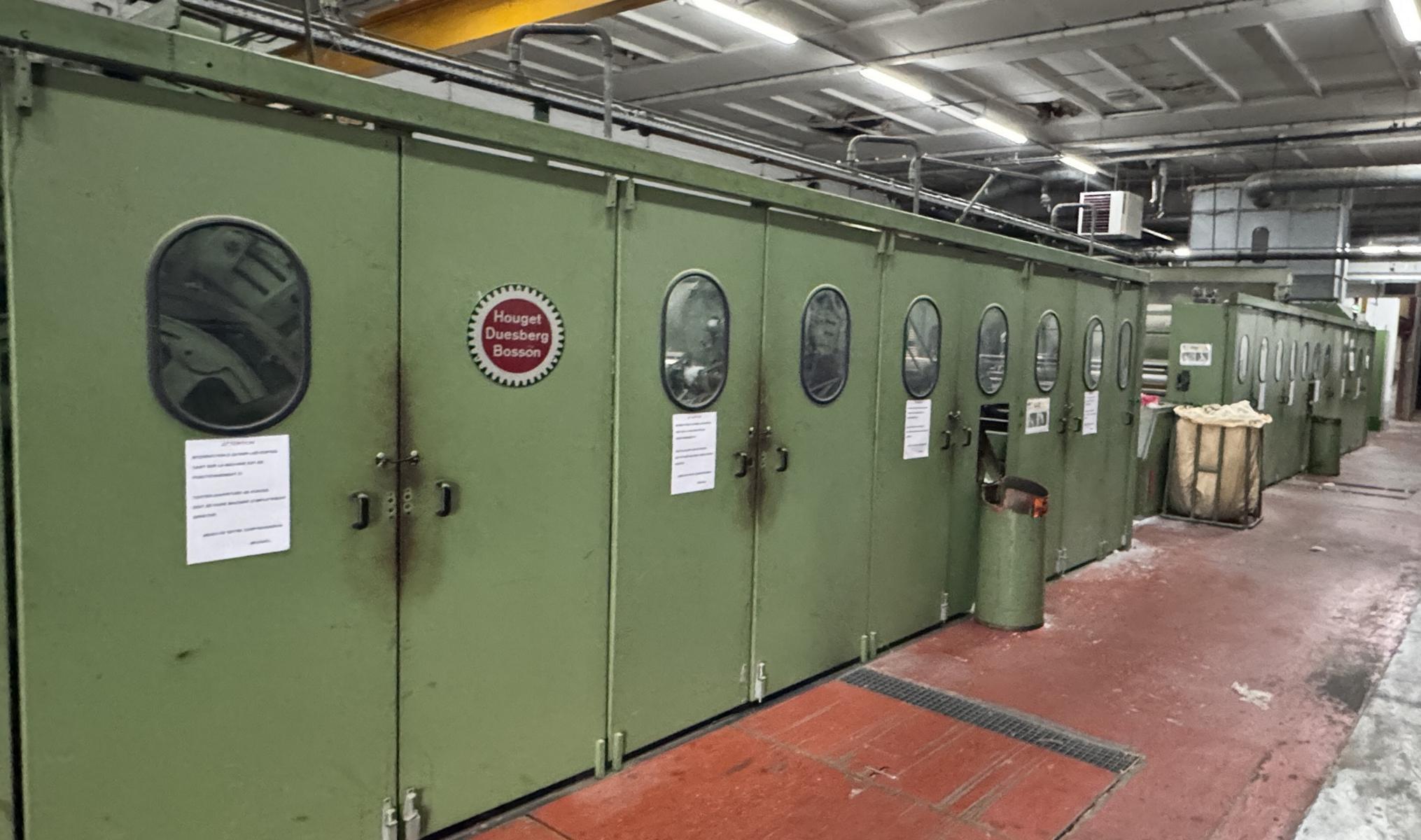

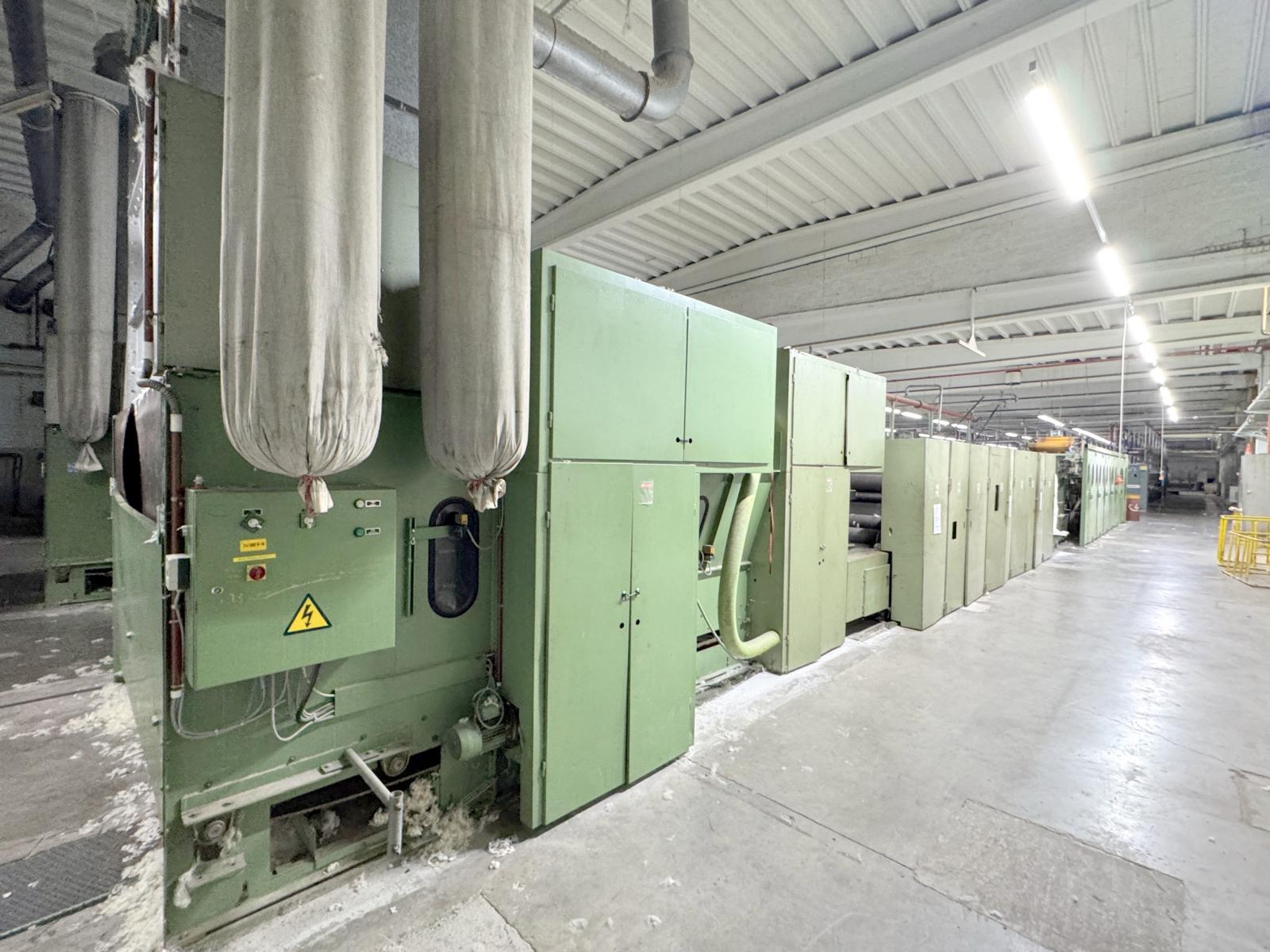

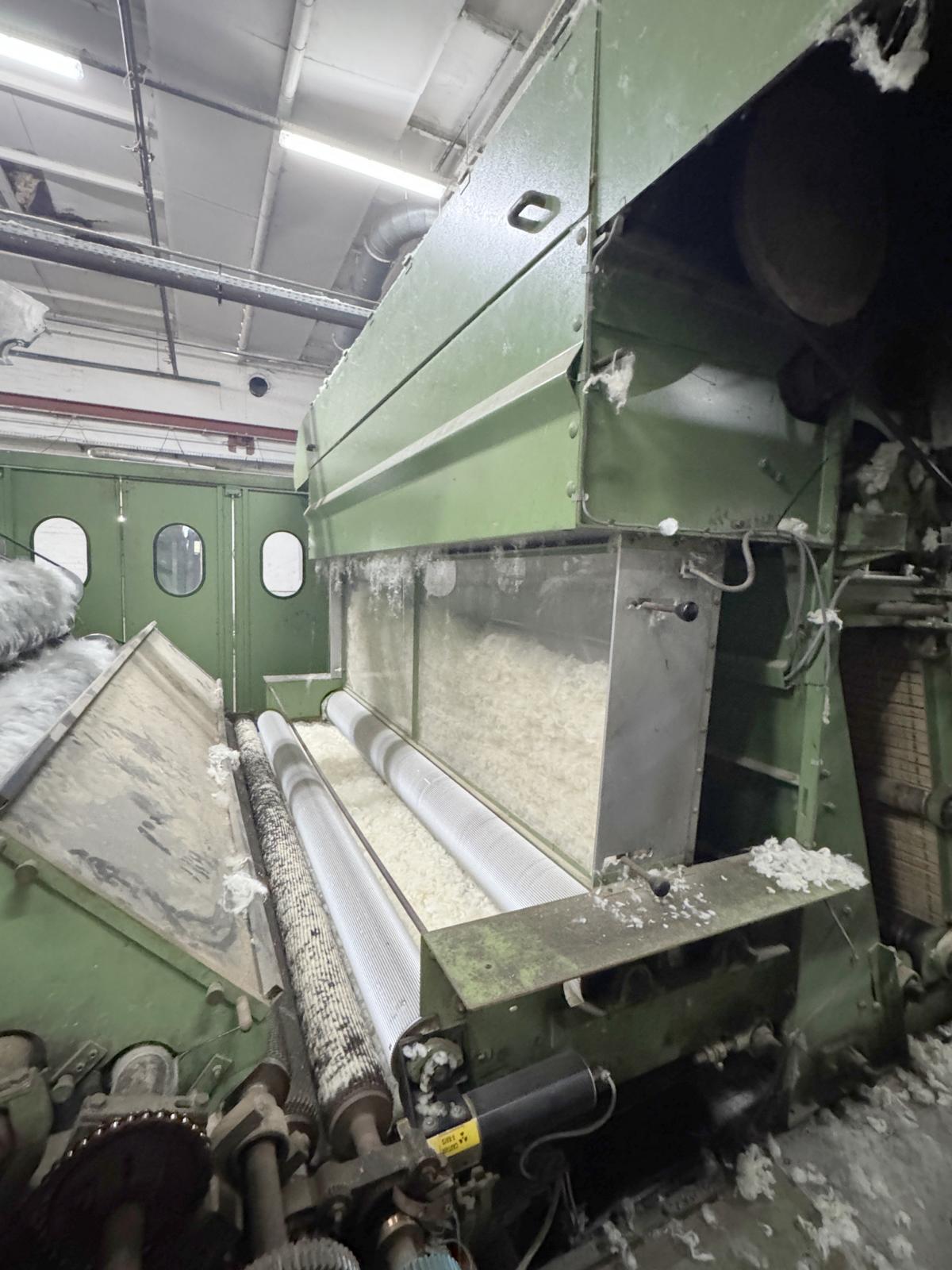

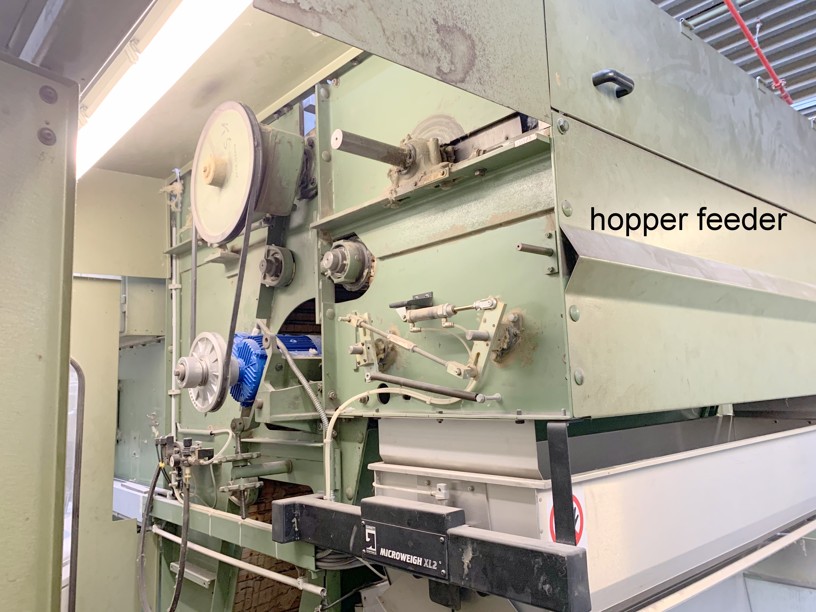

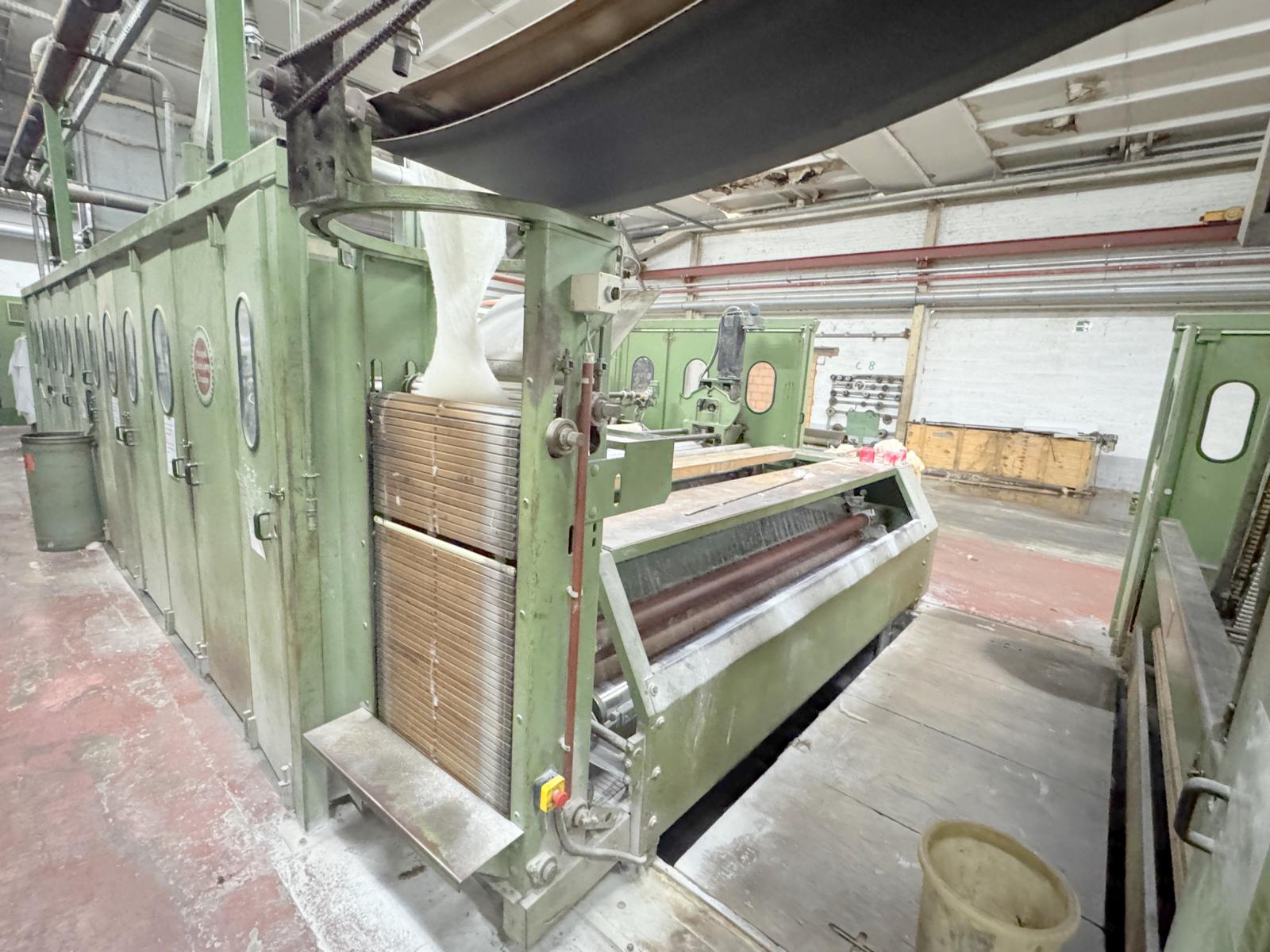

hopper feeder + shut feeder on top with height of 3,00m, linked with second hopper feeder

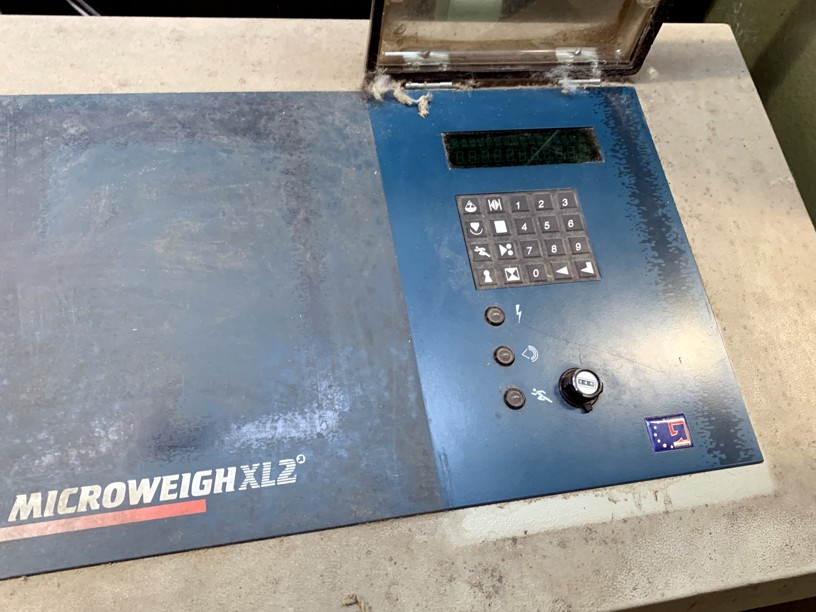

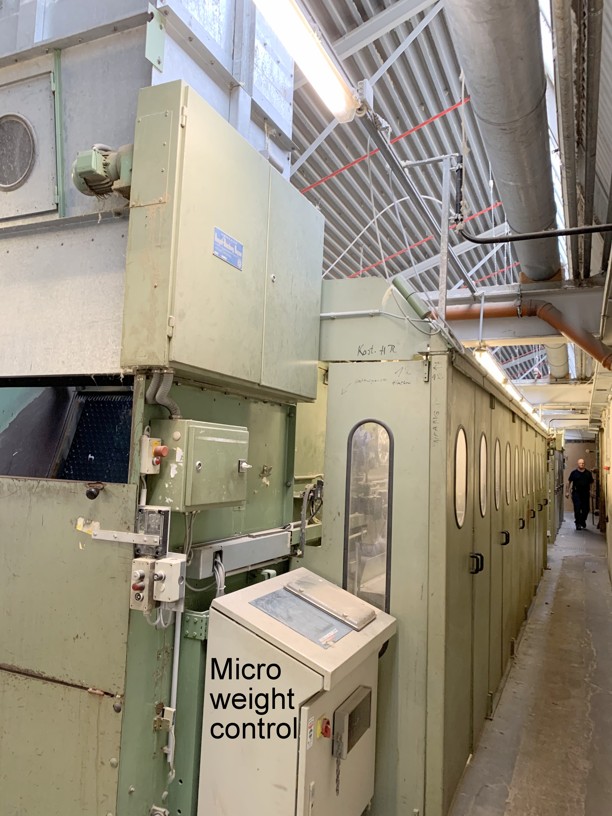

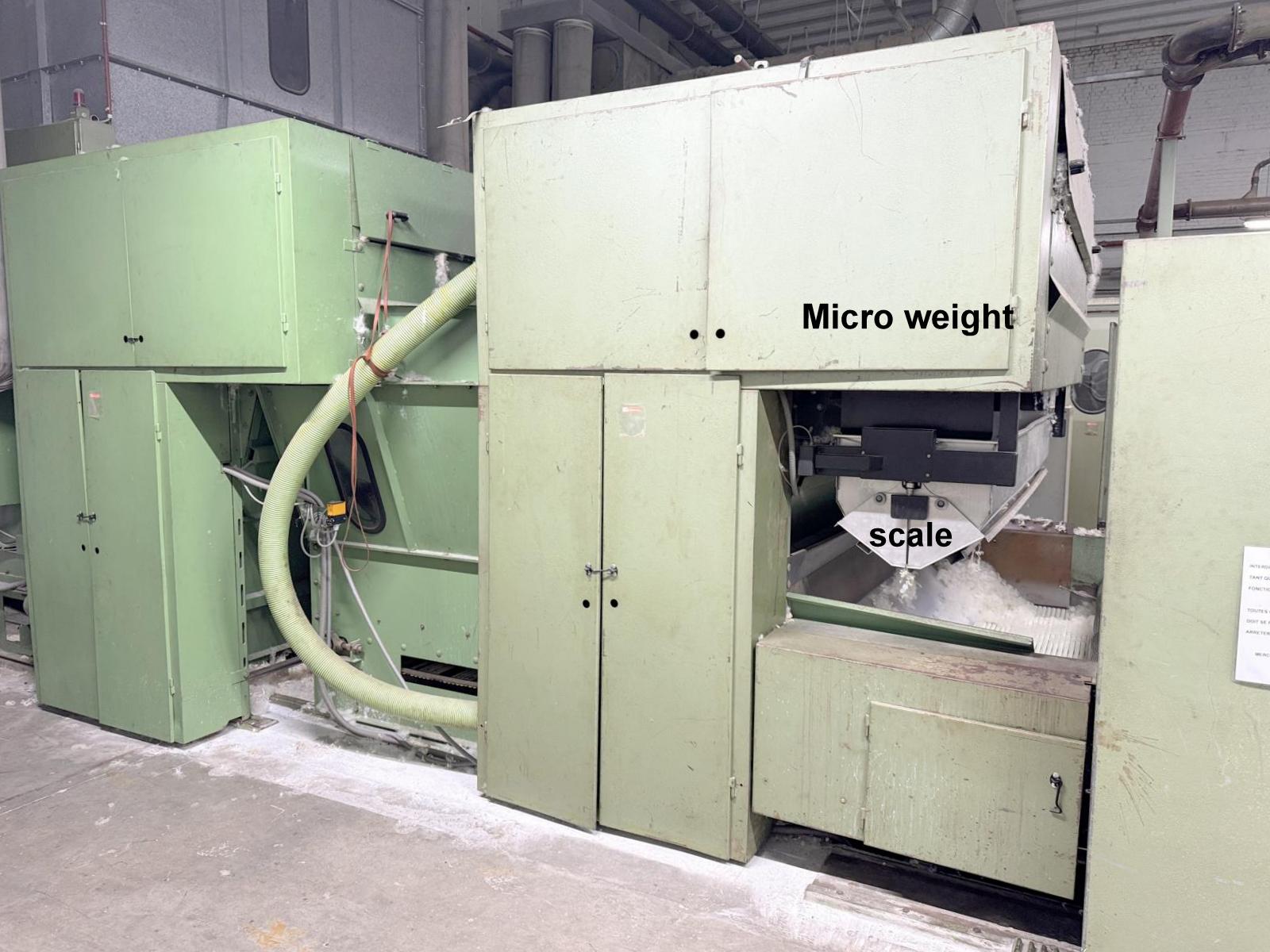

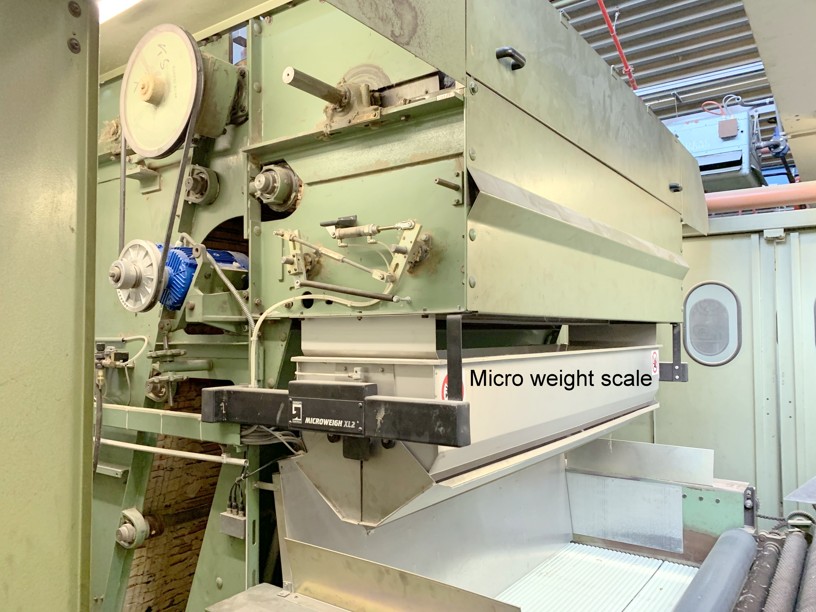

retrofitted with electronic scale Microweight, which ensures that the hopper feeder card operates
with a tolerance of +- 1%!

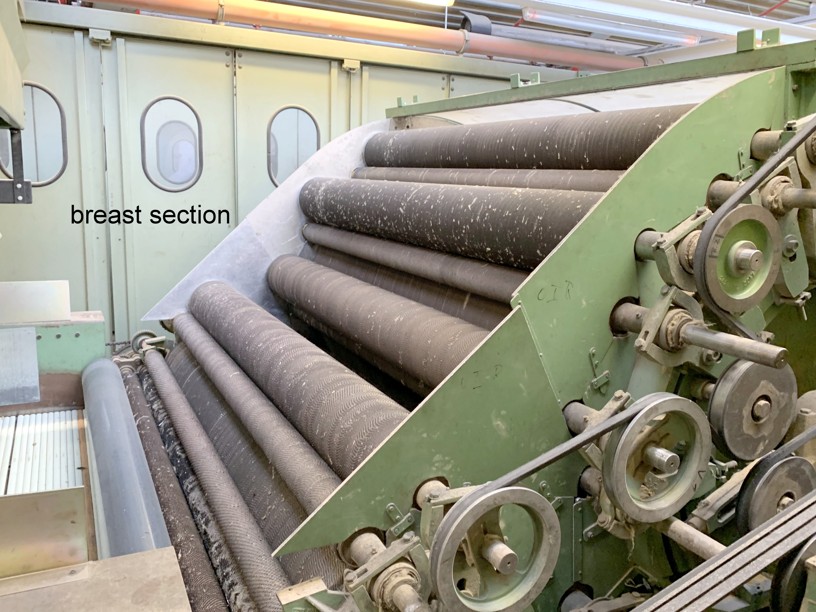

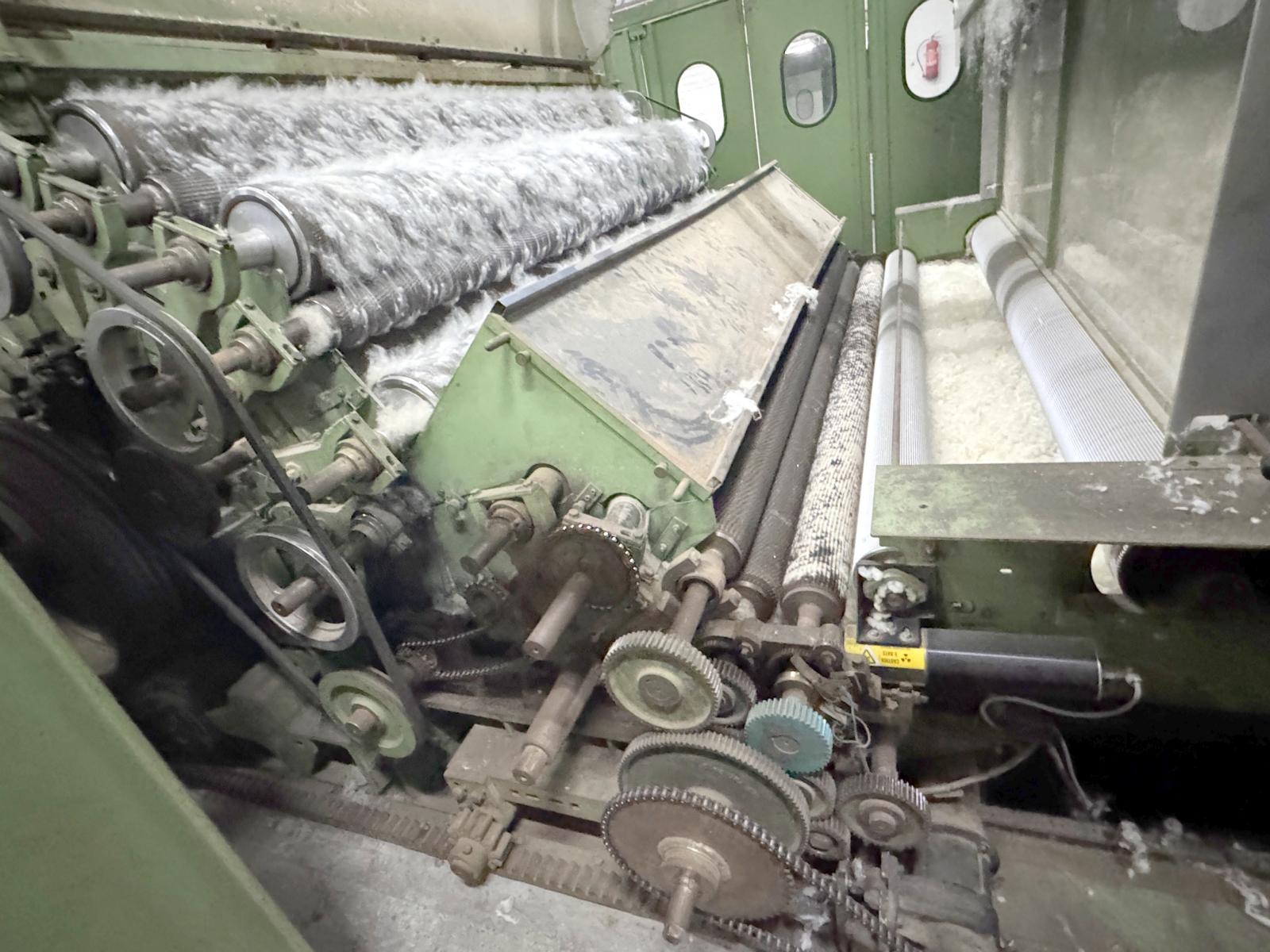

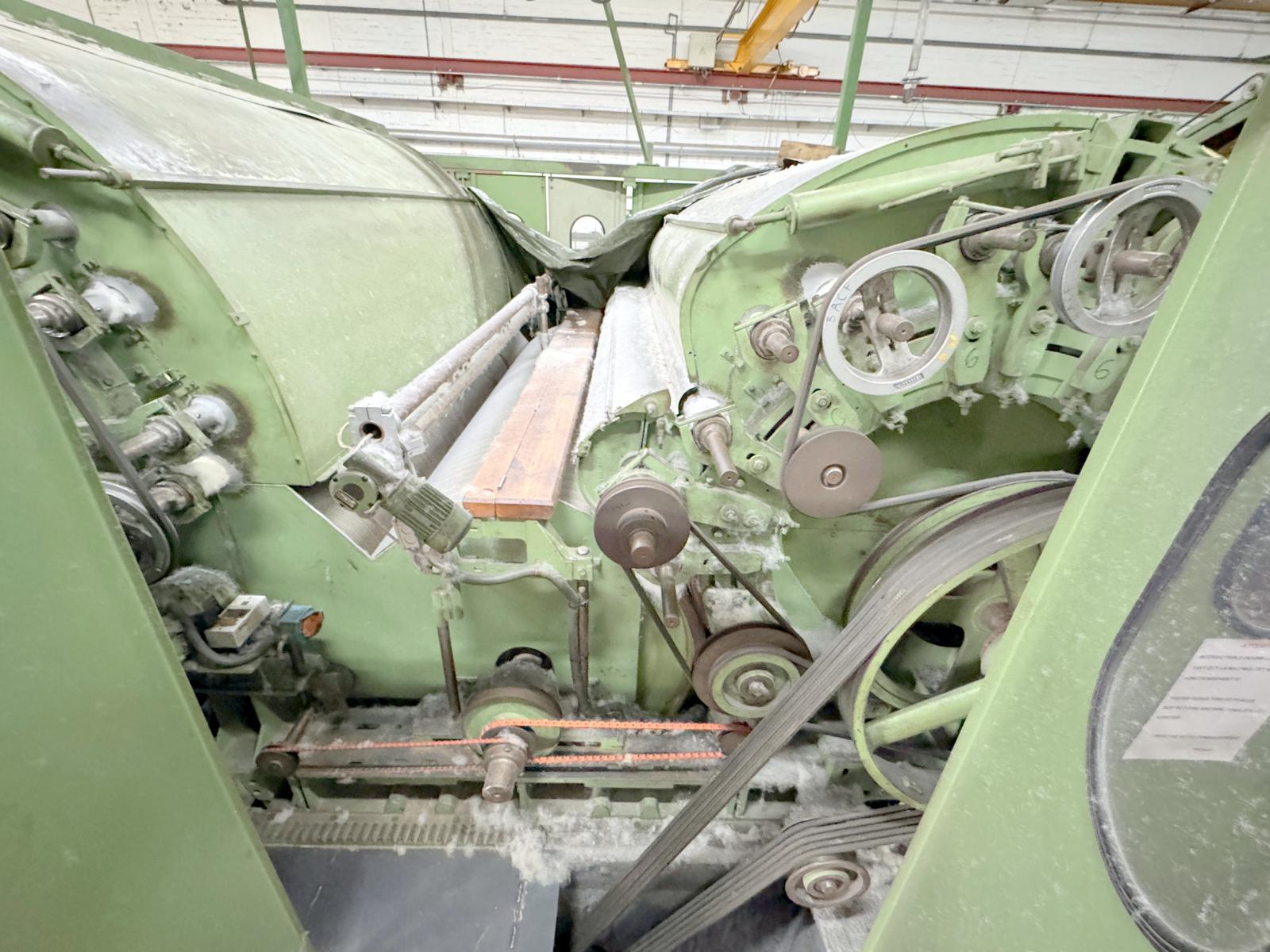

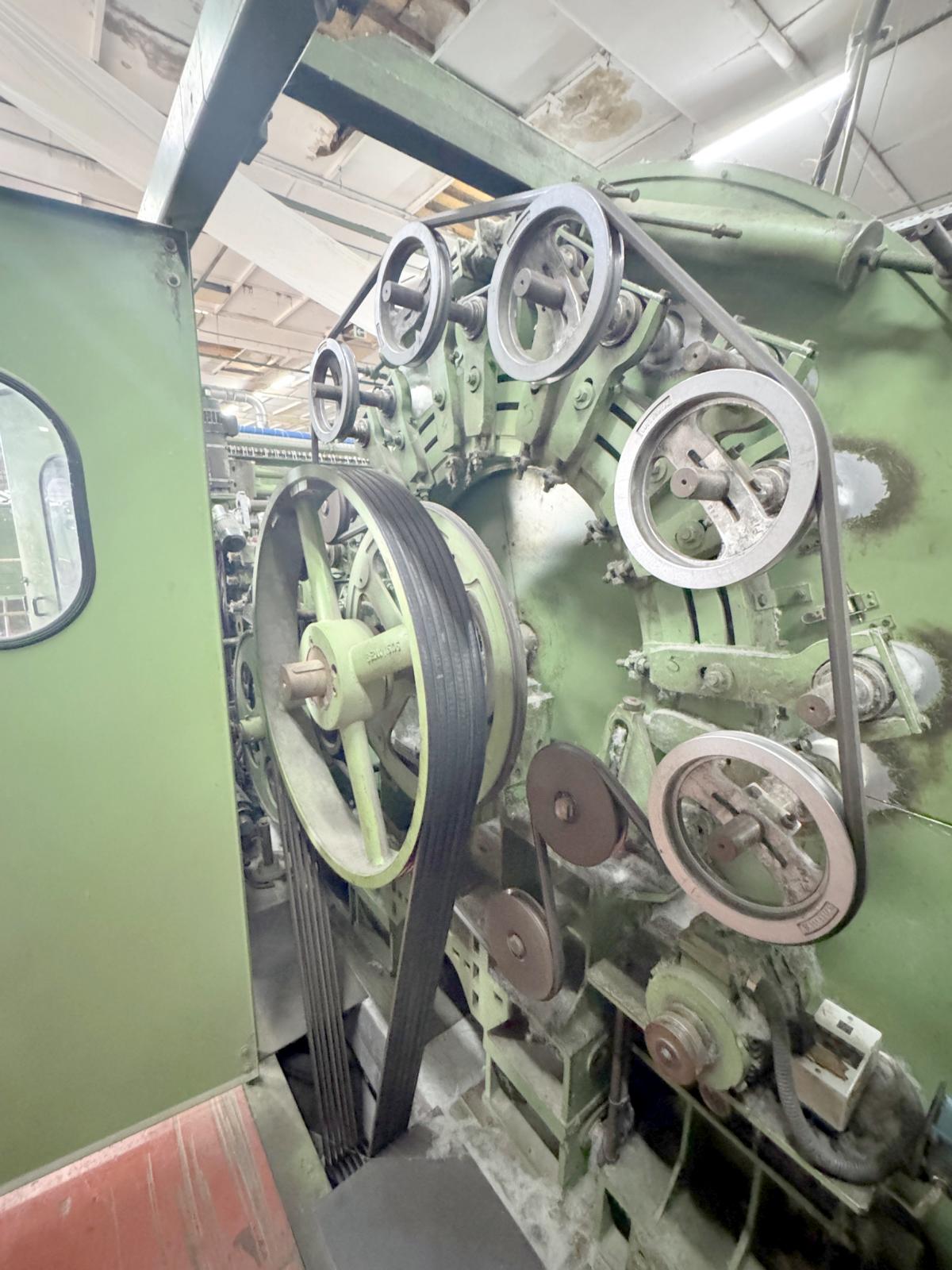

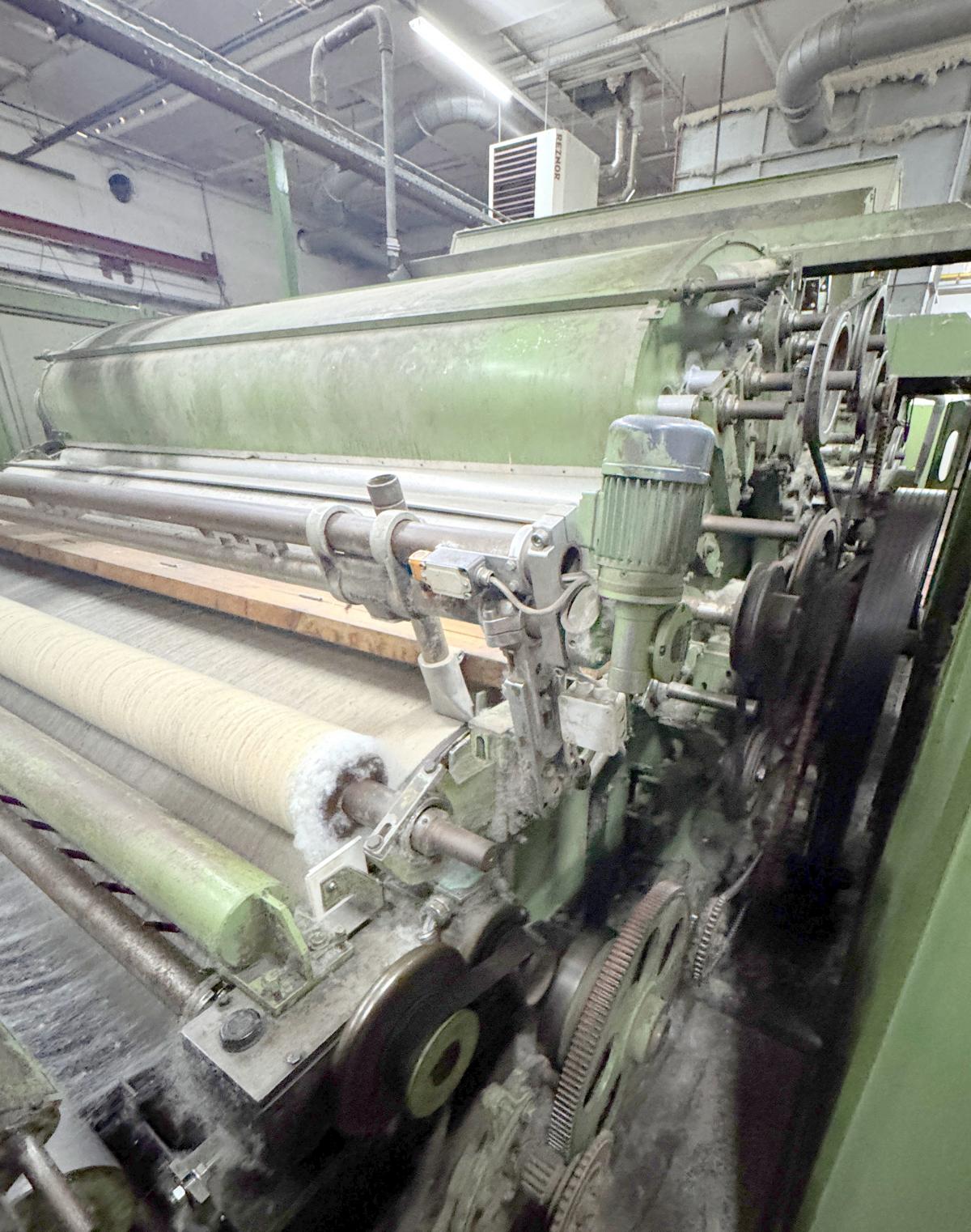

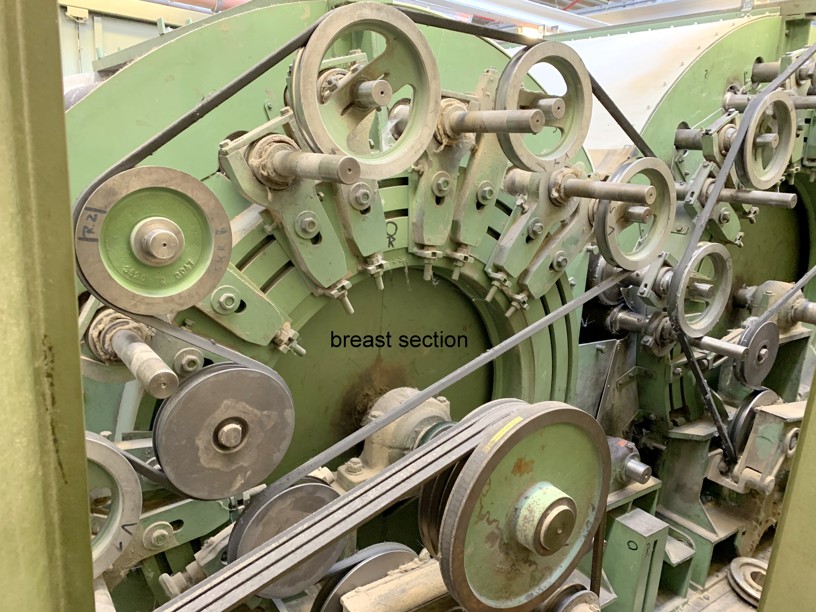

breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper, rigid wires

first swift:

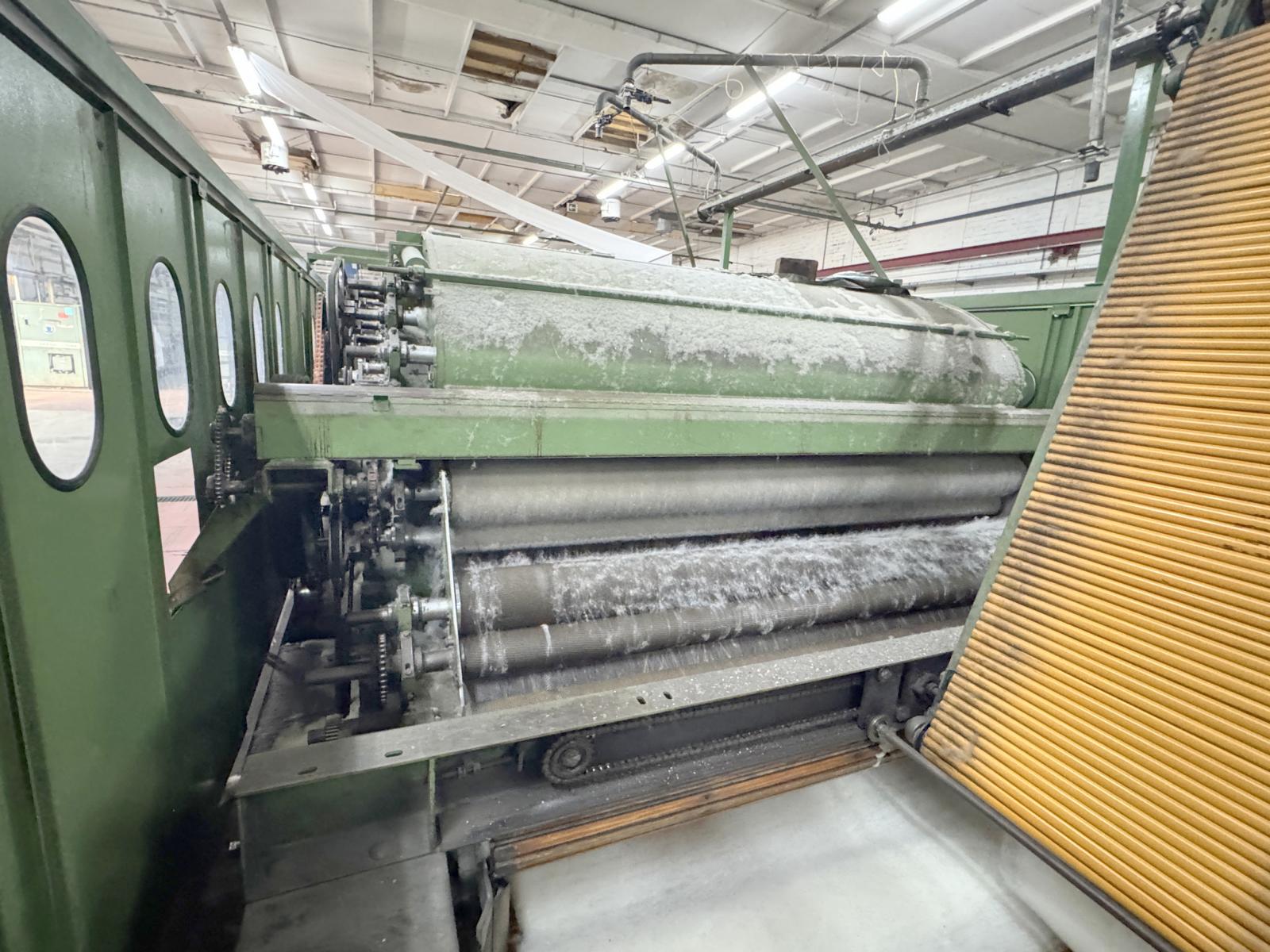

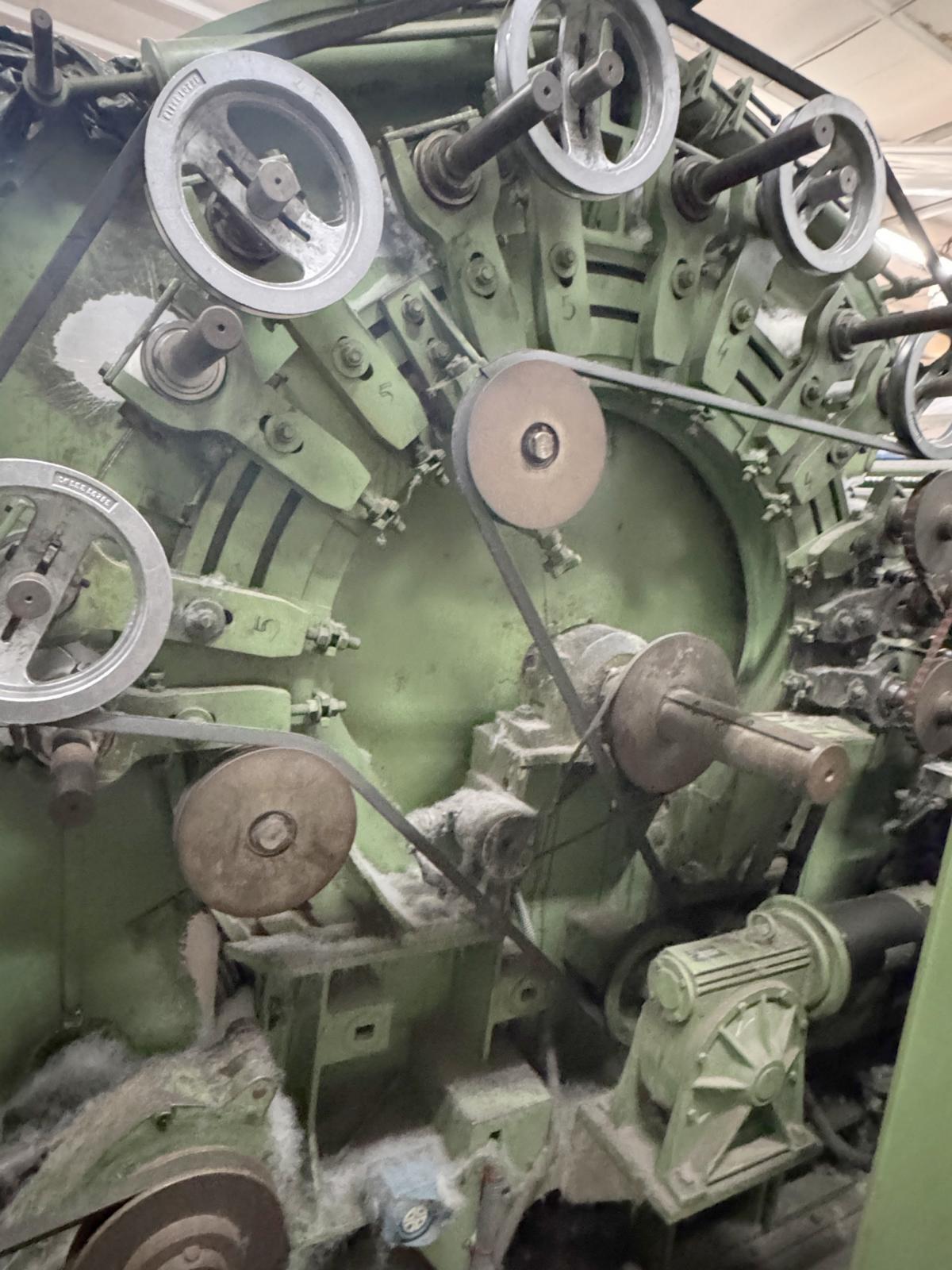

main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
Peralta, wideband layer

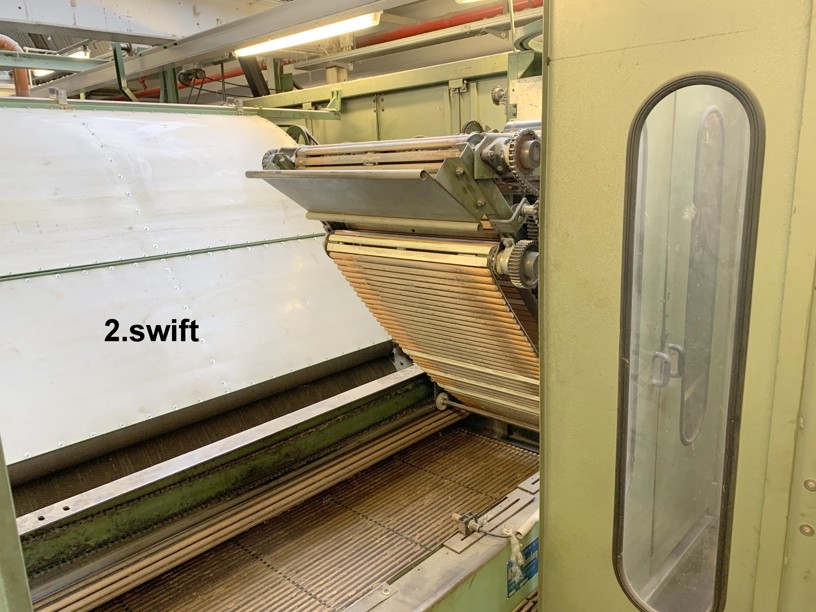

second swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
transfer roller

third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes

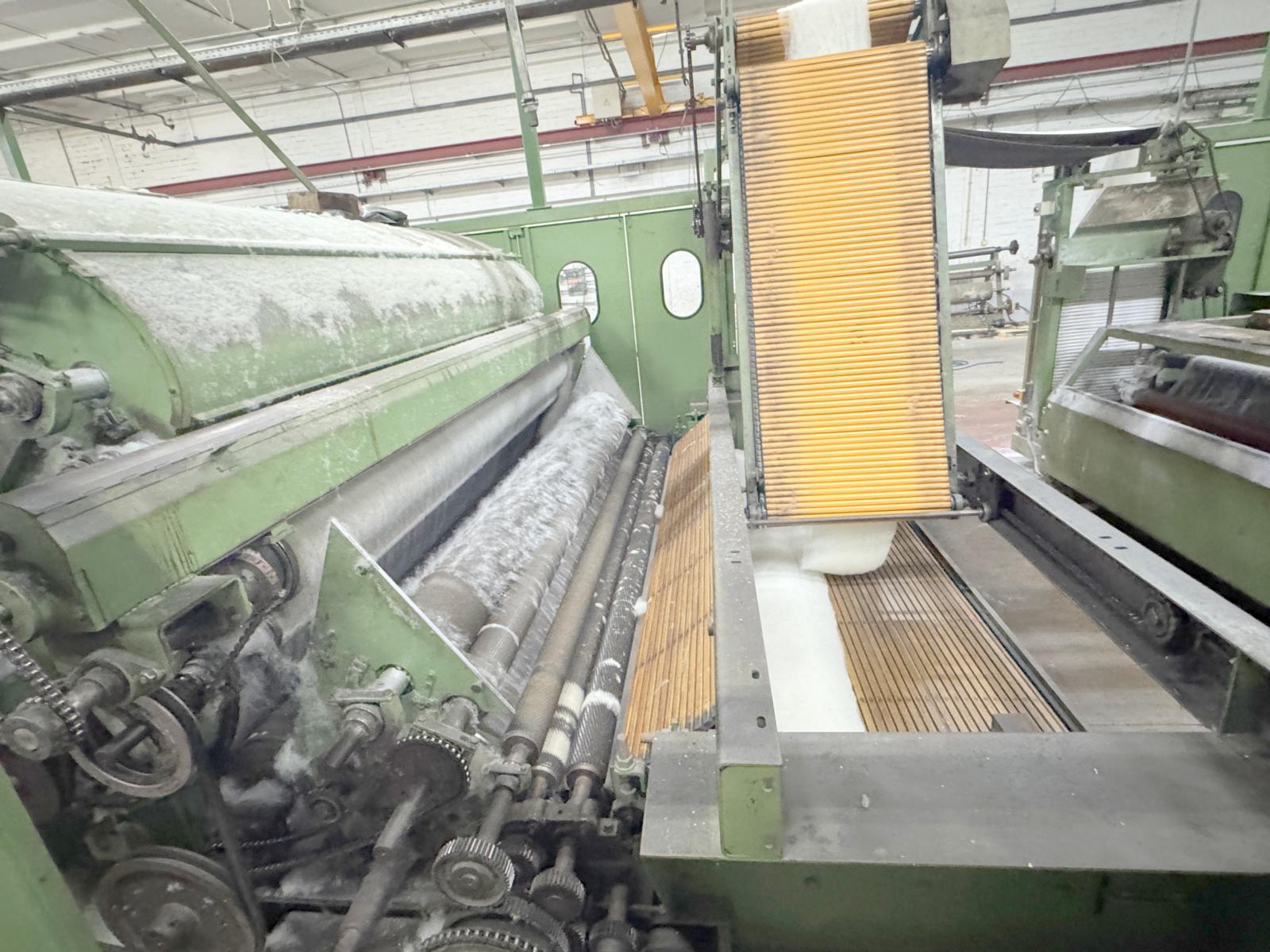

high speed flying comb, delivery speed until 40m/min

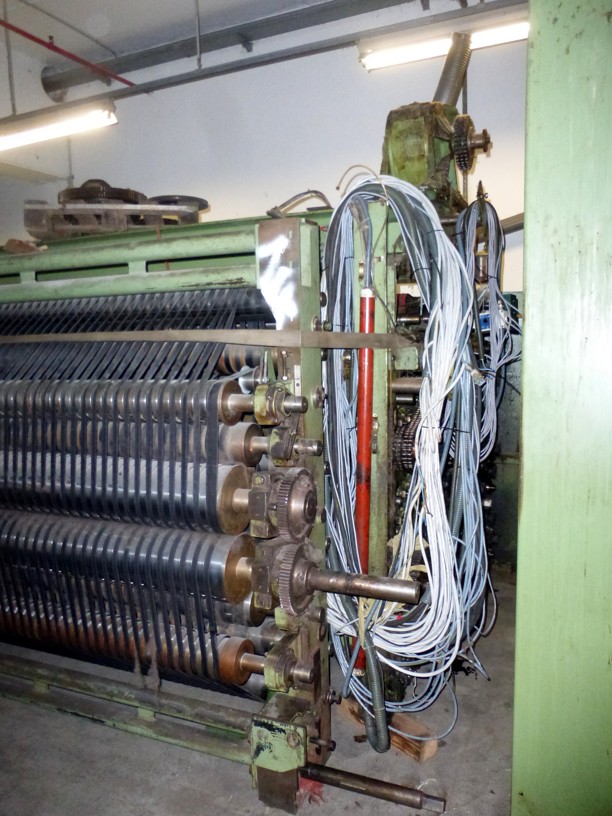

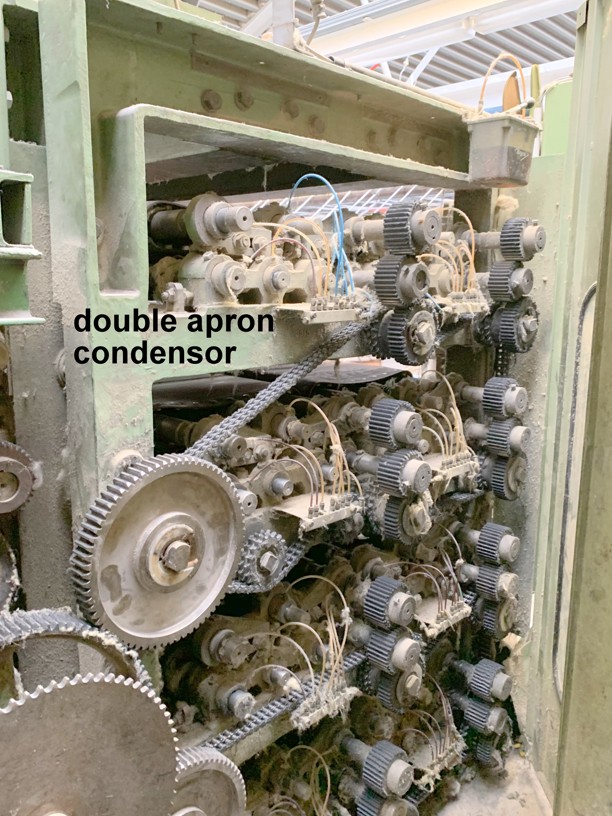

double apron condenser, 160 good ends

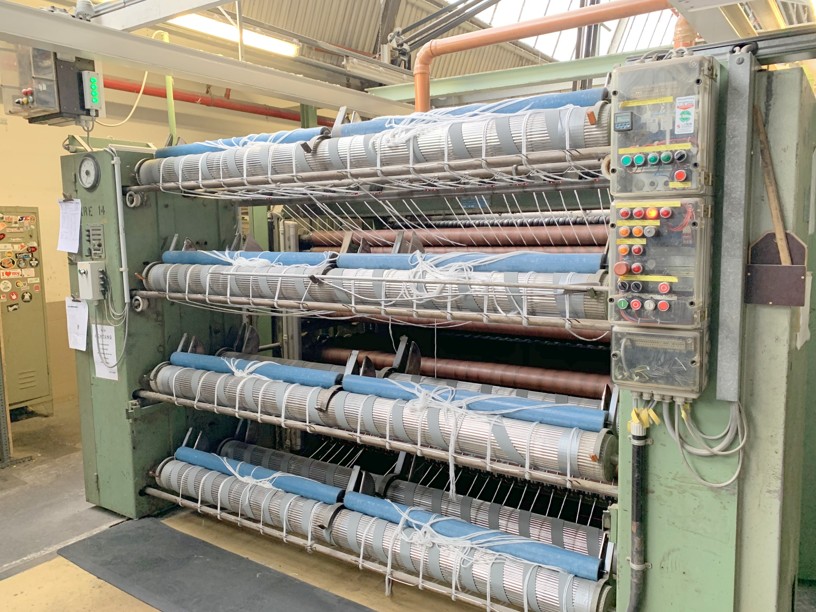

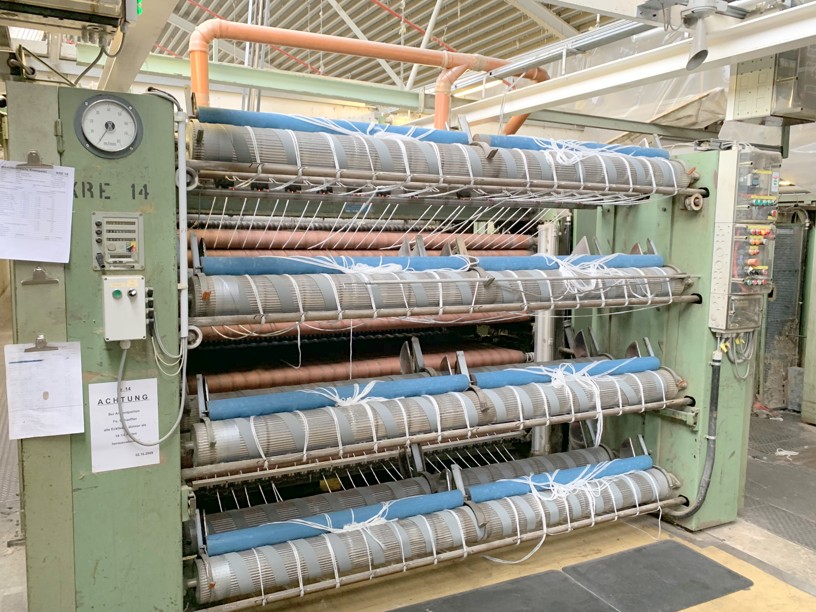

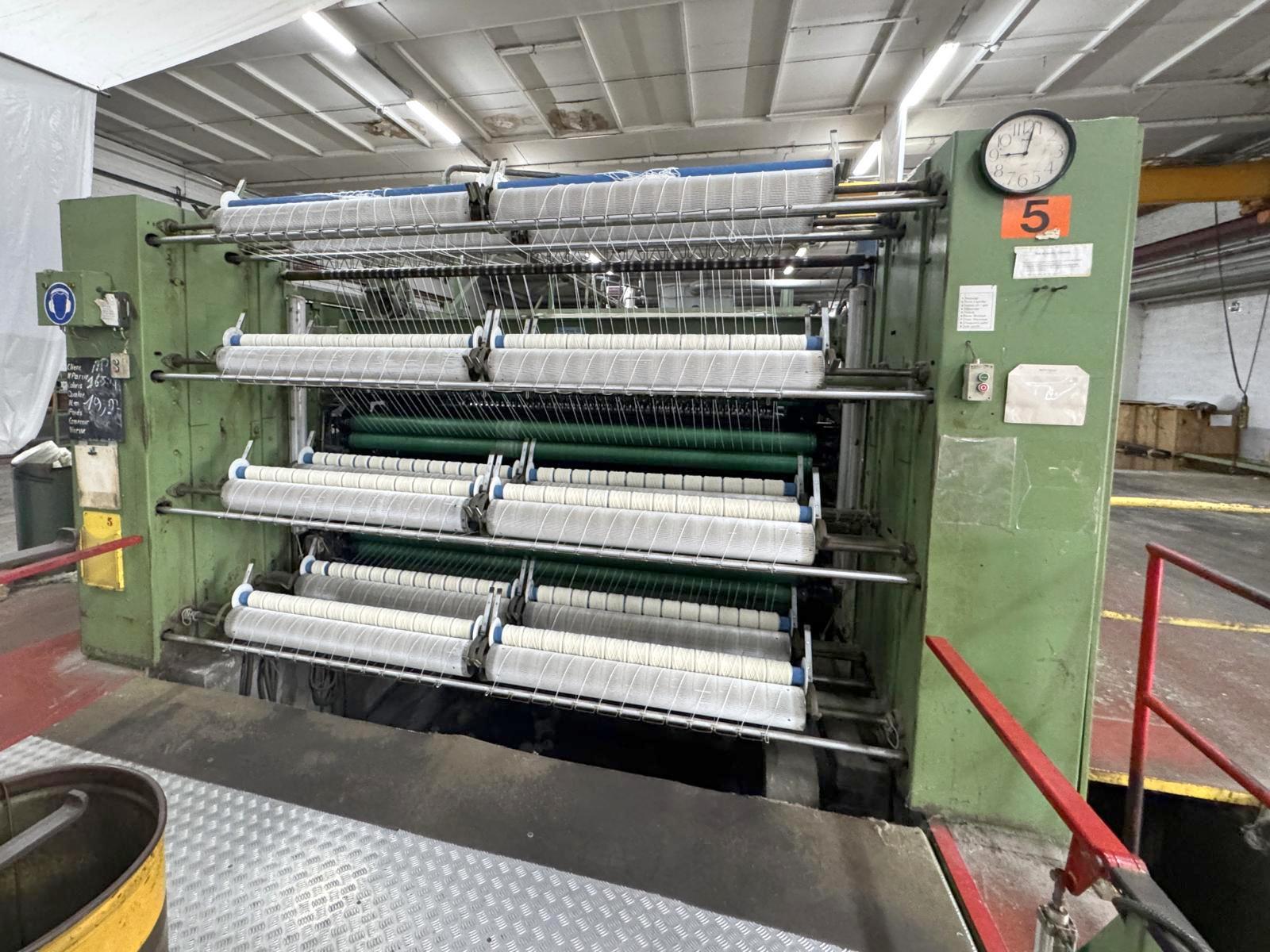

double winder frame with 8 bobbins each 20 ends

Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.
A complete pneumatic extraction system with vacuum pump and filter containers is also available for sale.

 S2565-HDB_cross_section_drawing.pdf

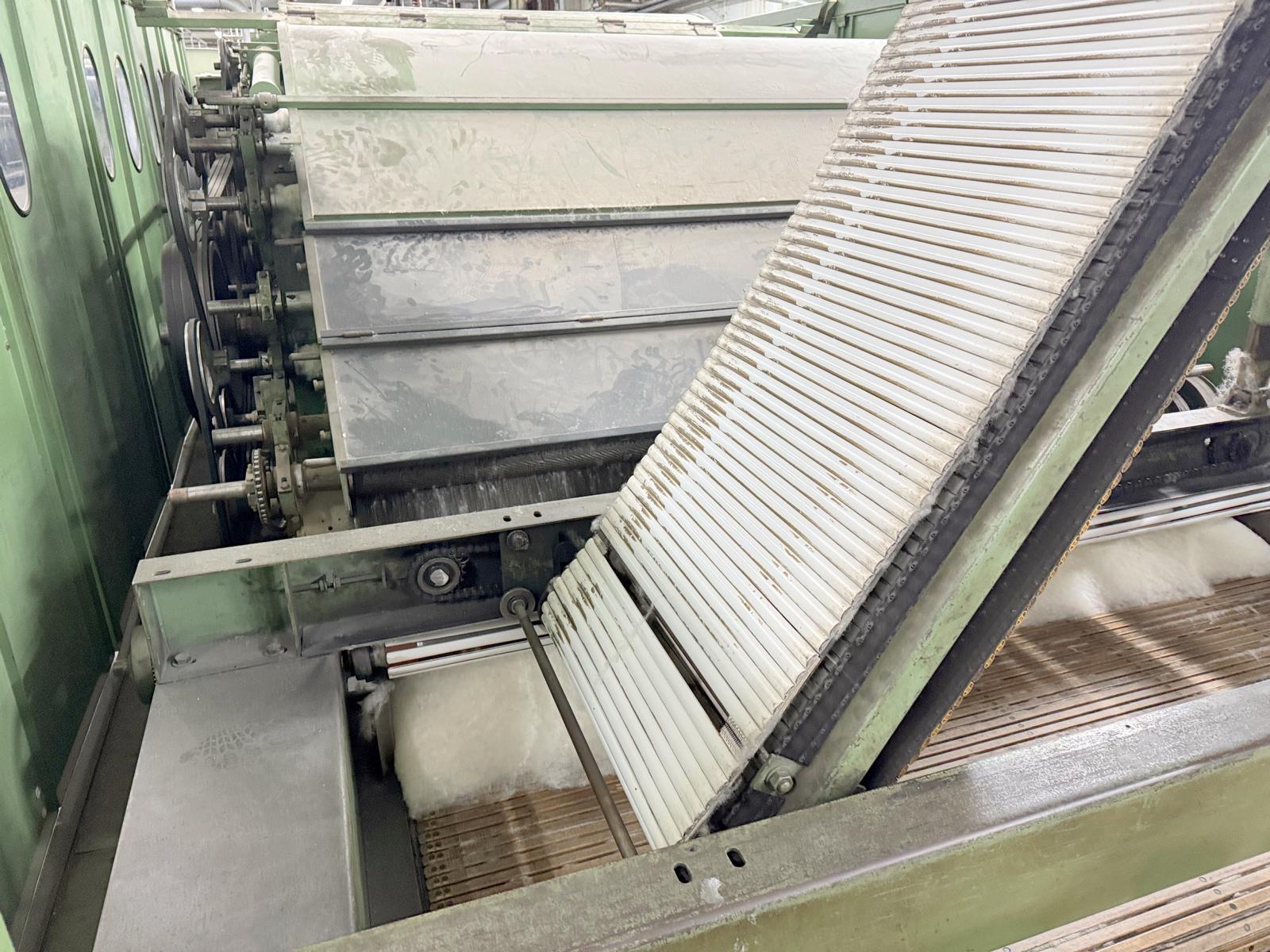

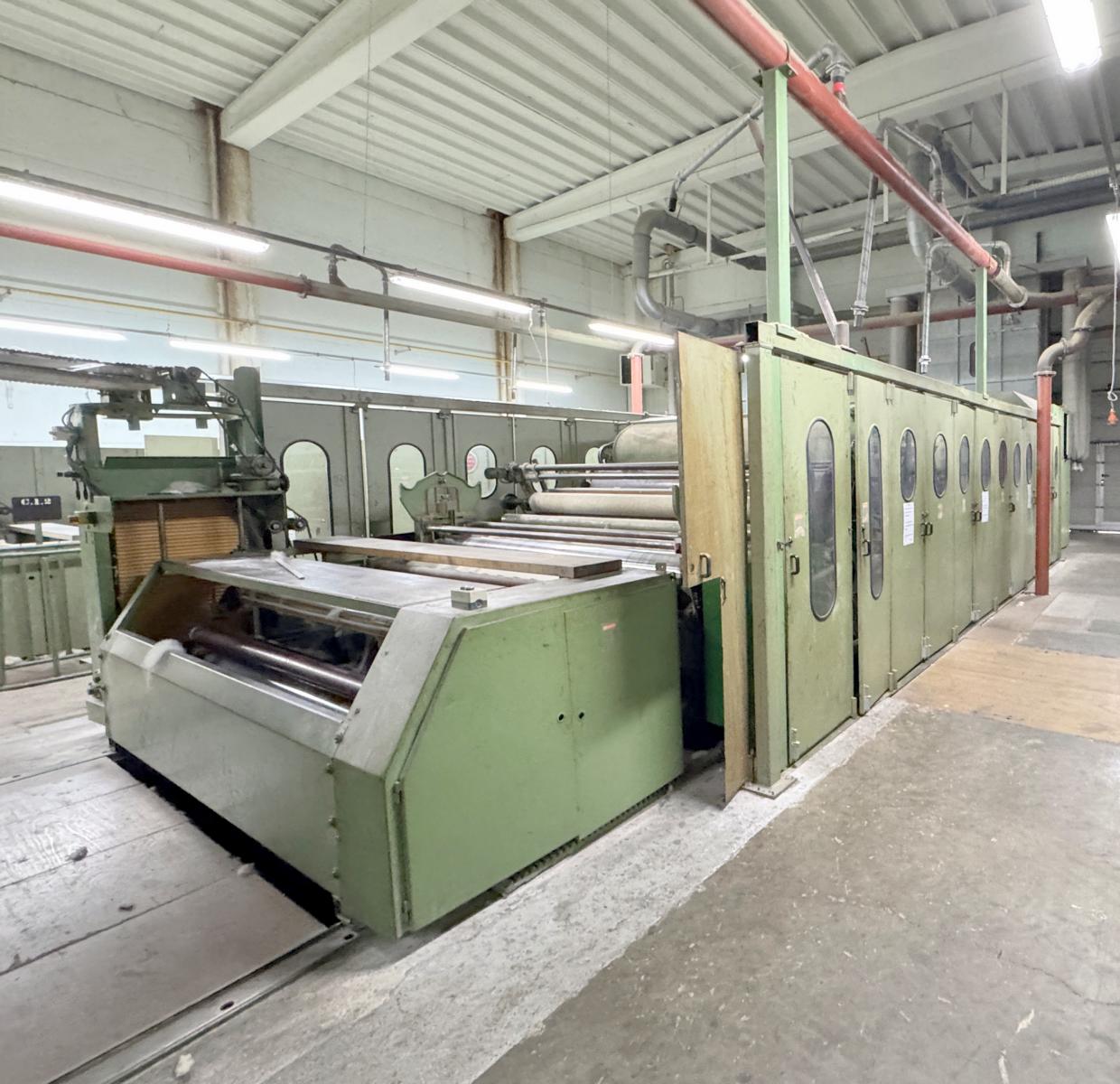

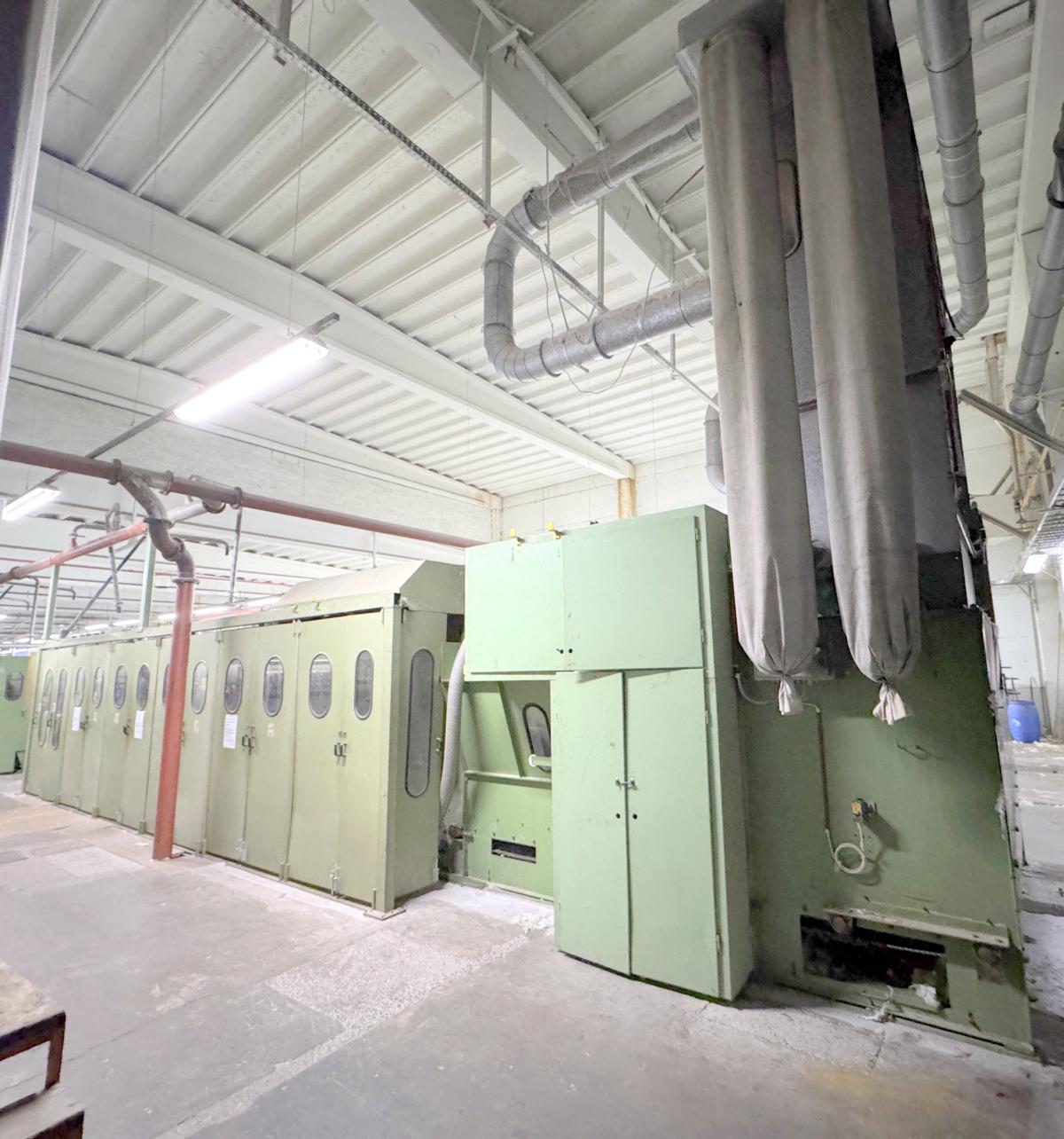

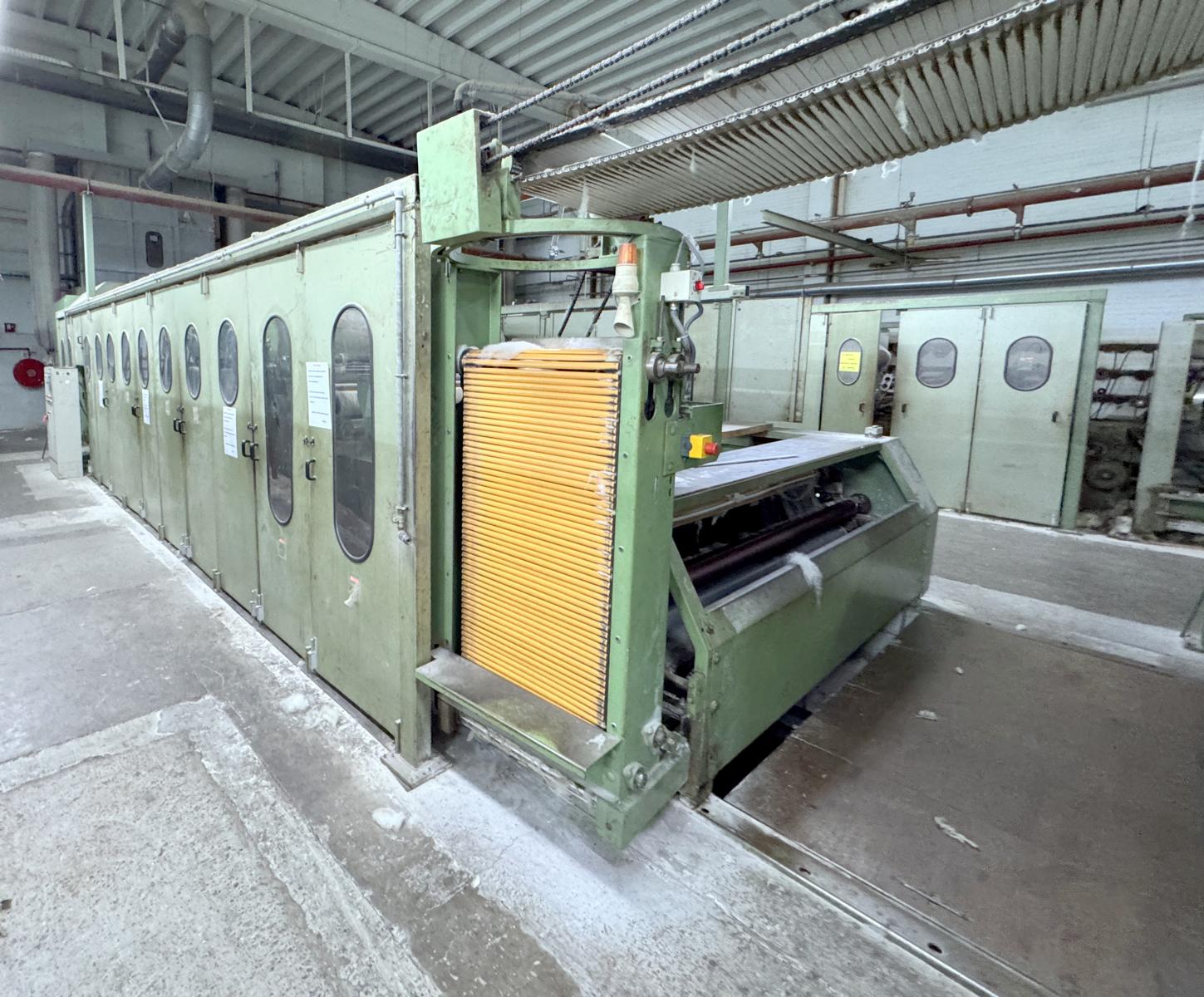

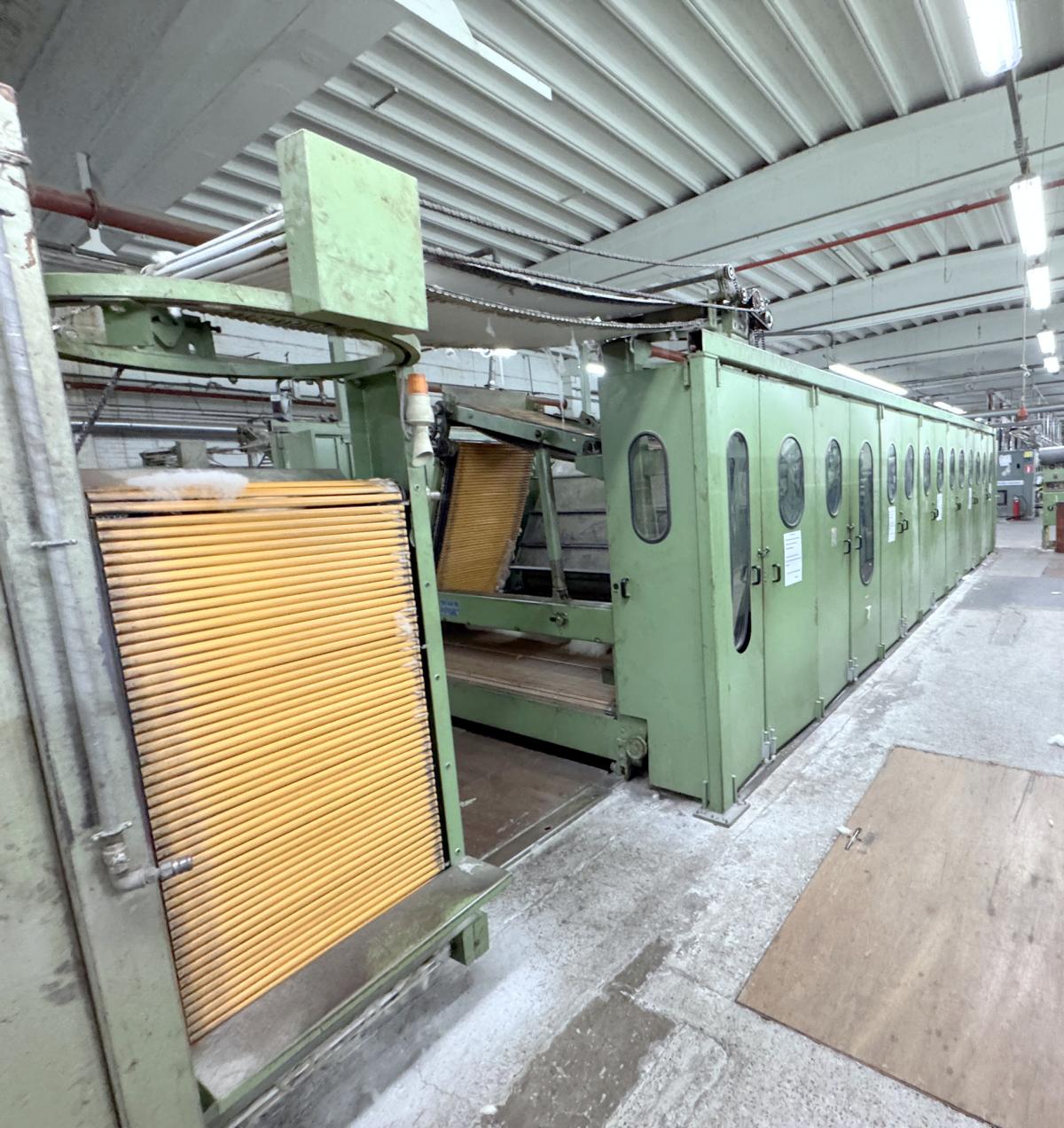

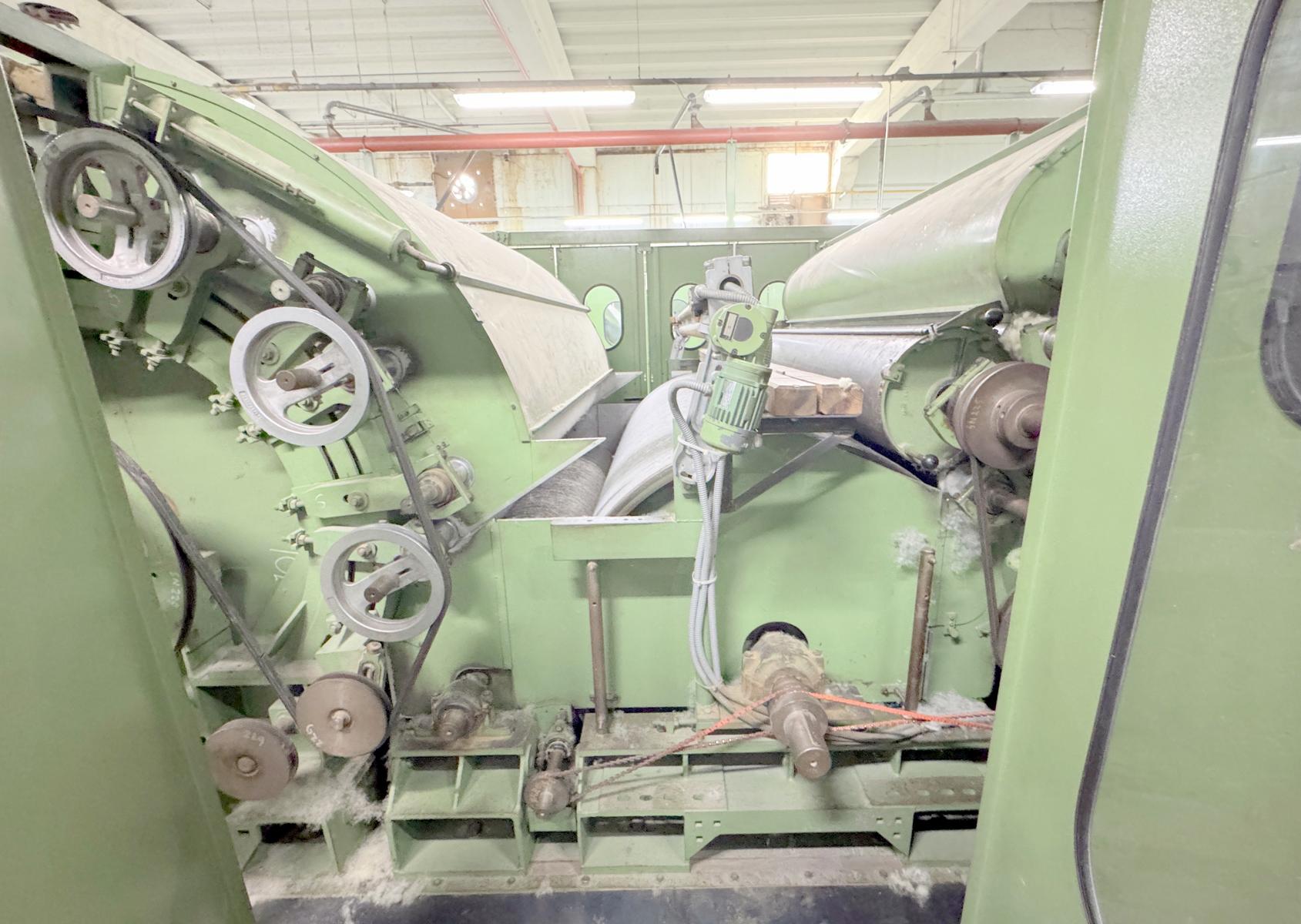

Specification:

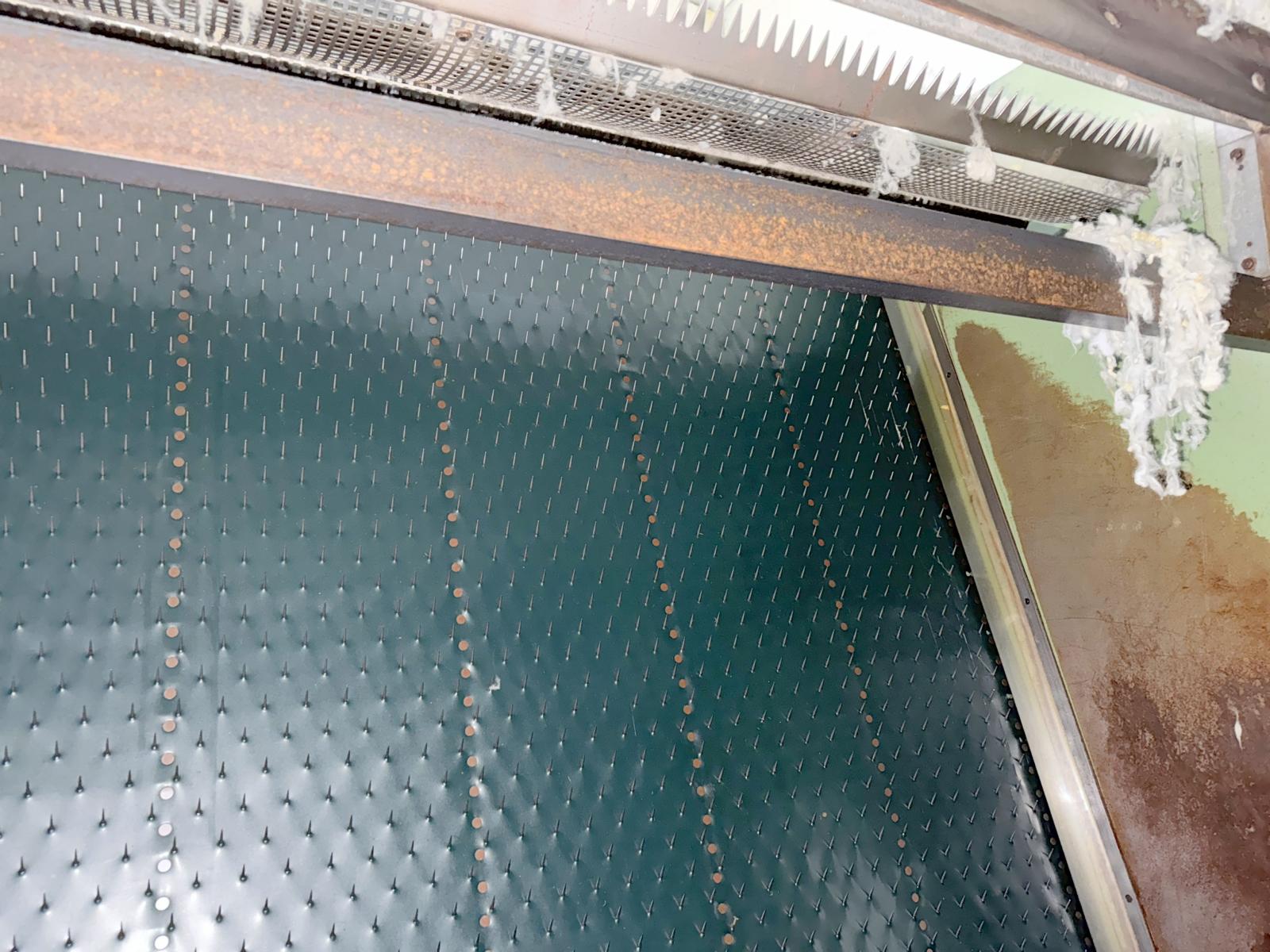

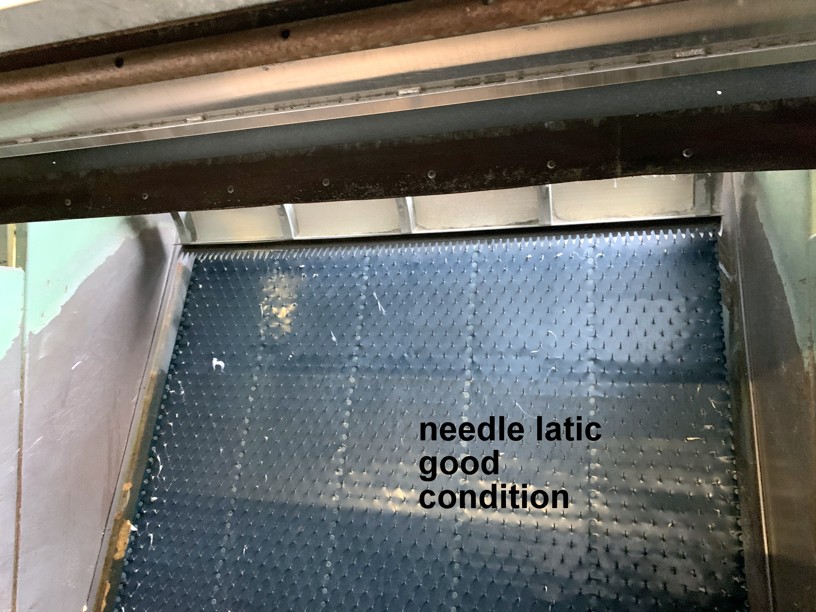

hopper feeder + shut feeder on top with height of 3,00m, linked with second hopper feeder

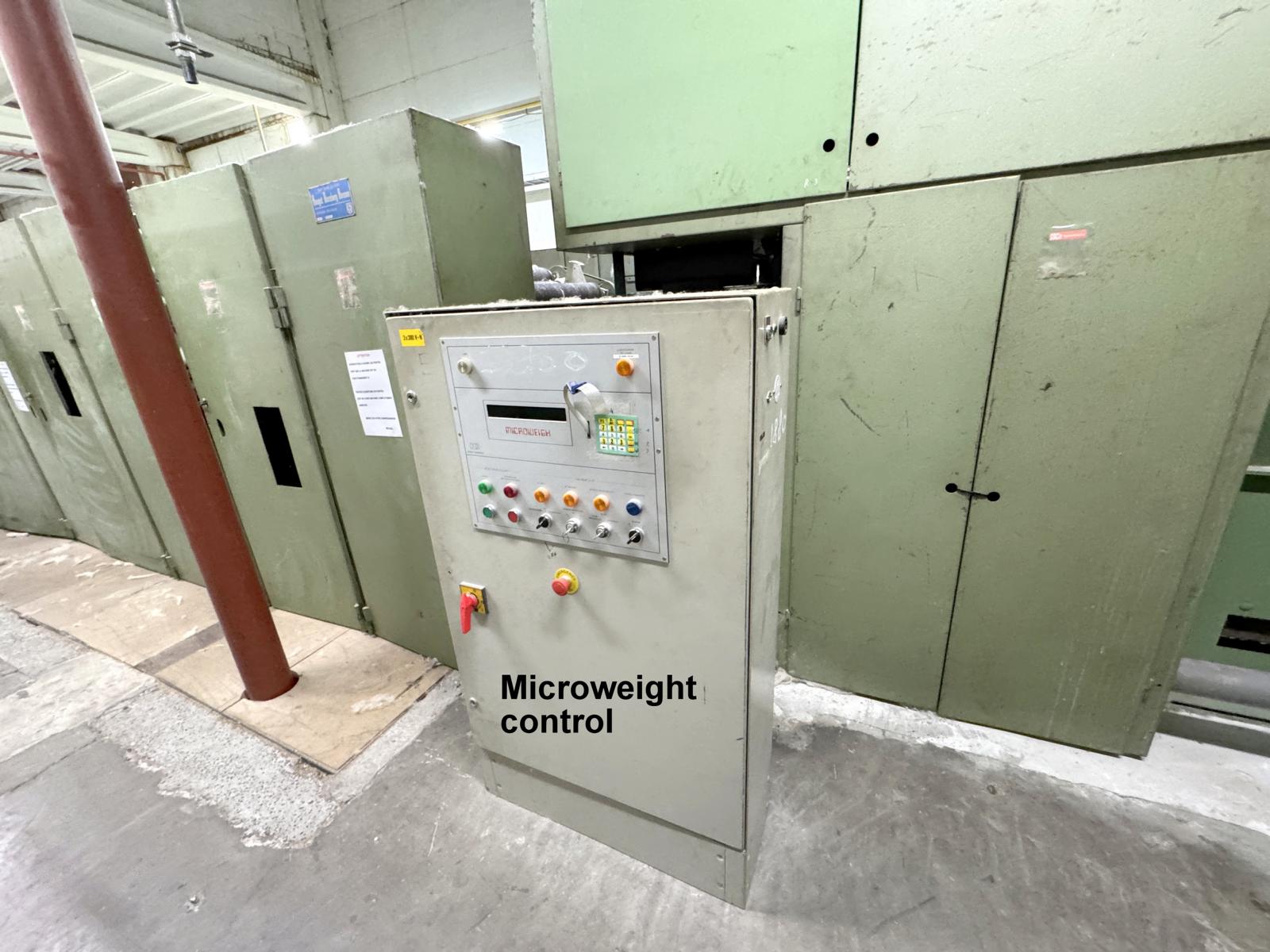

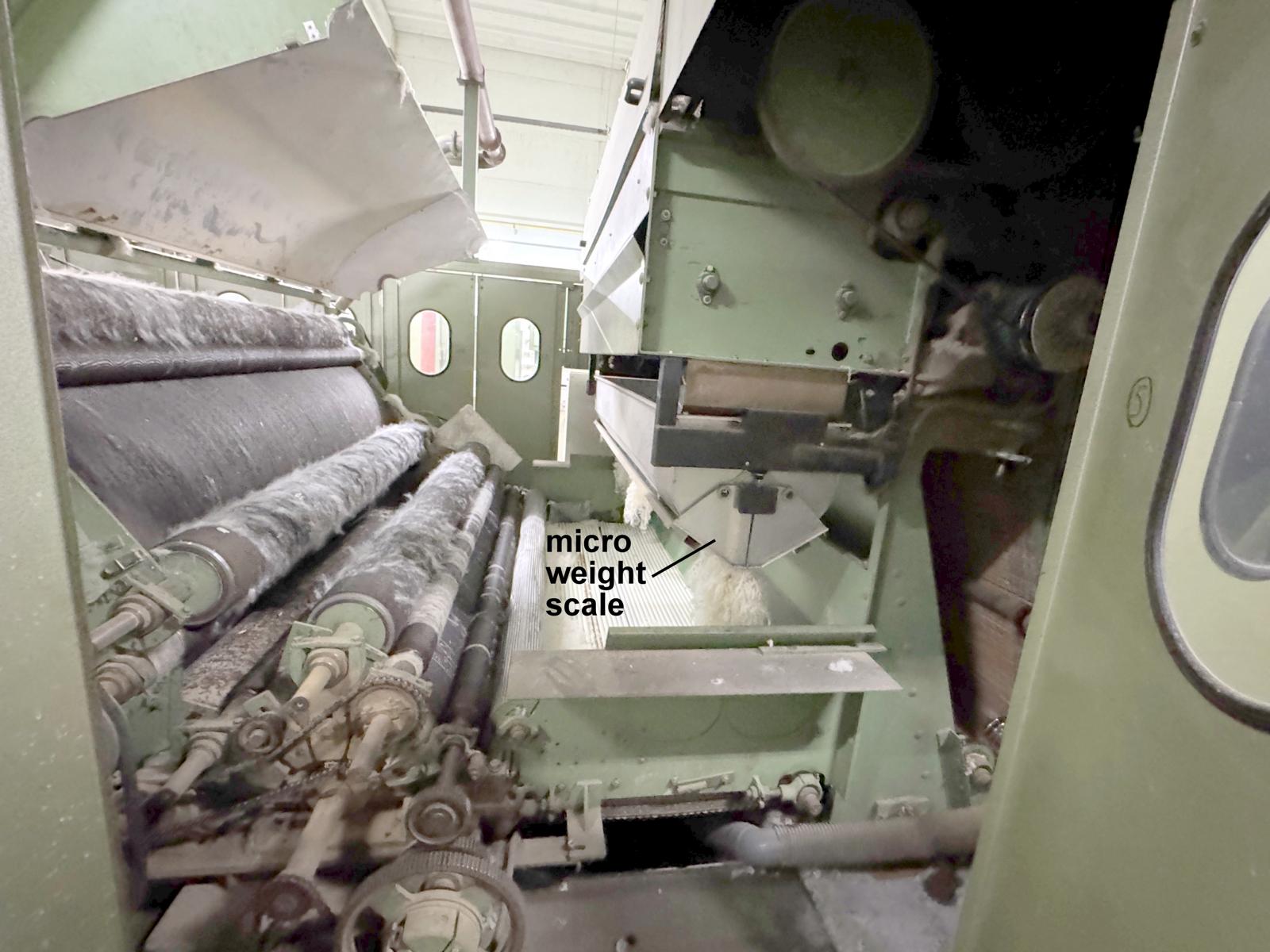

retrofitted with electronic scale Microweight, which ensures that the hopper feeder card operates
with a tolerance of +- 1%!

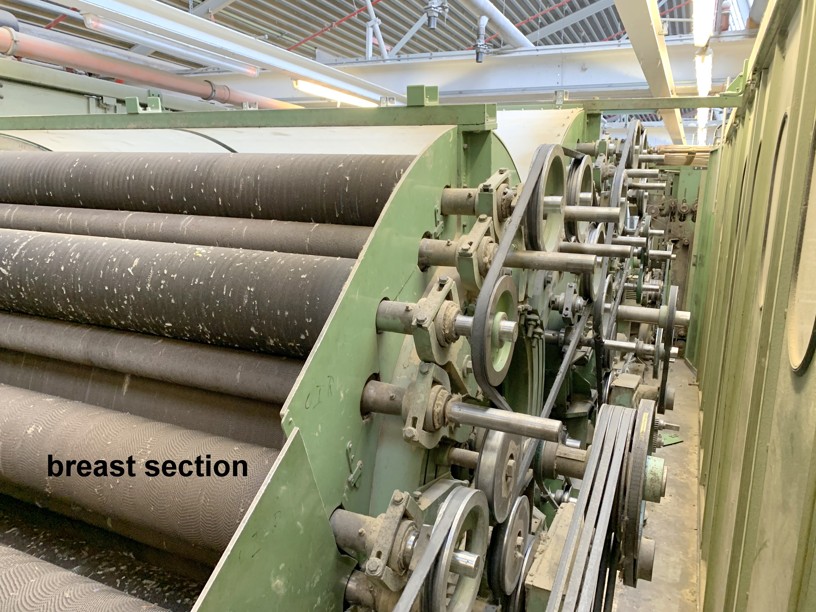

breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper, rigid wires

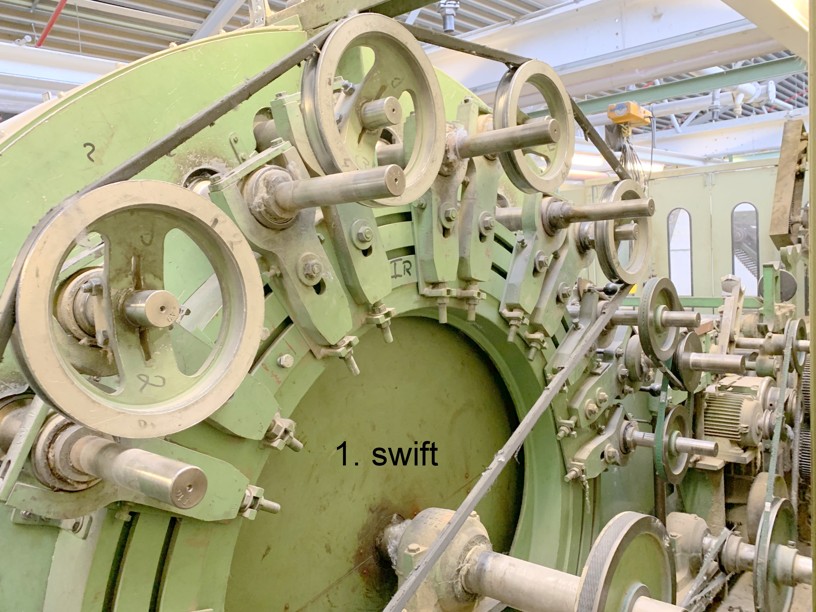

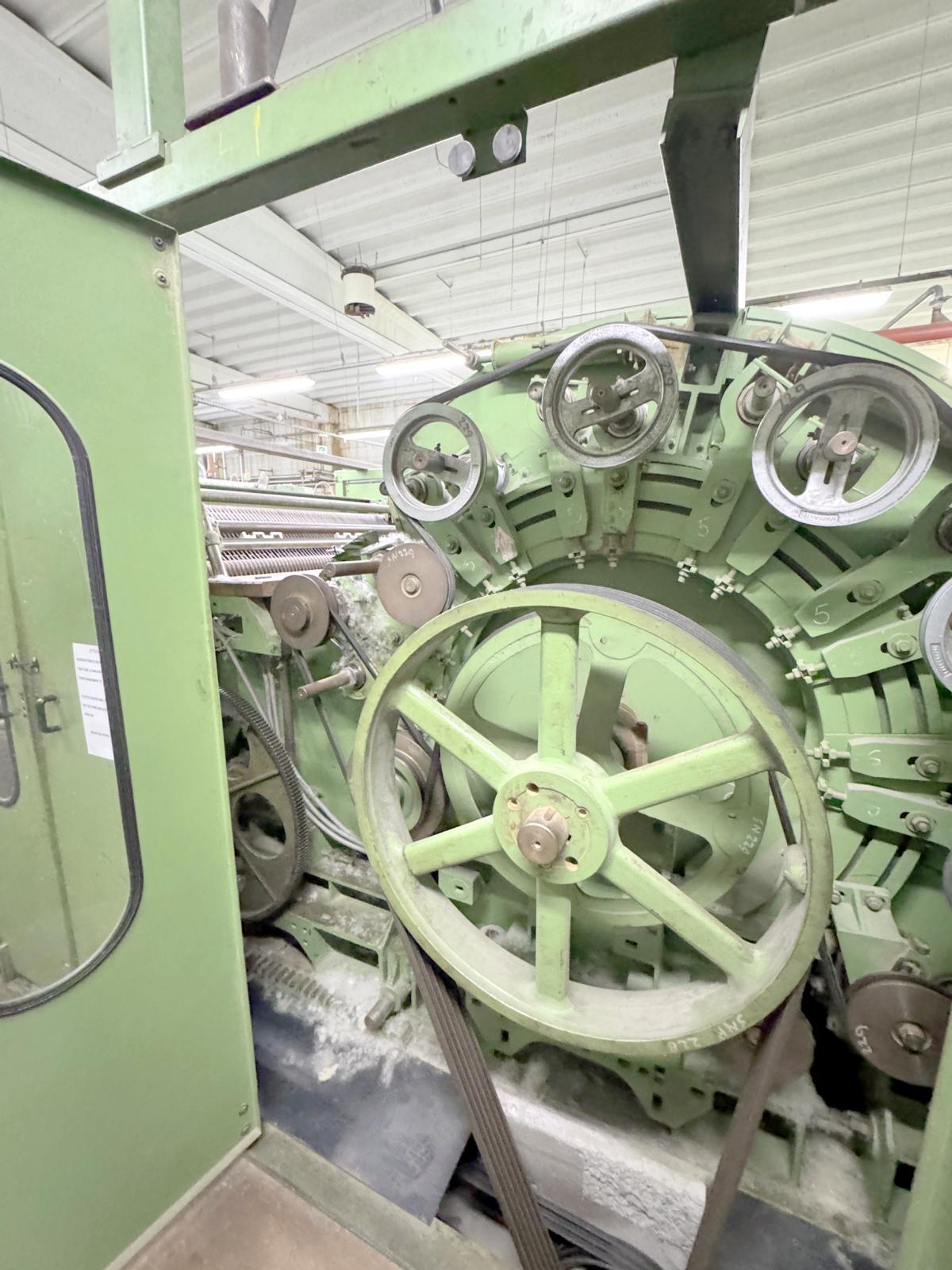

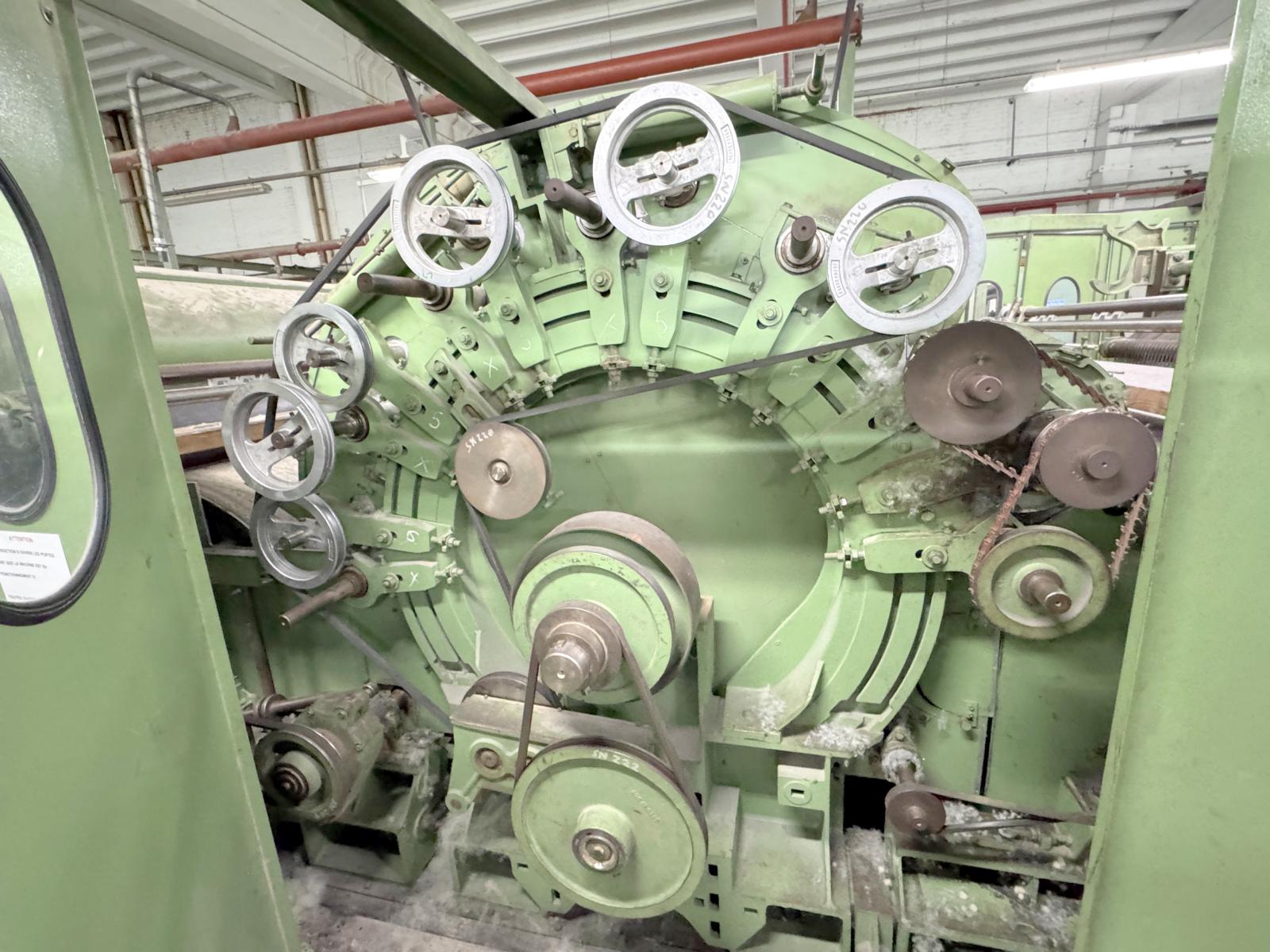

first swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes

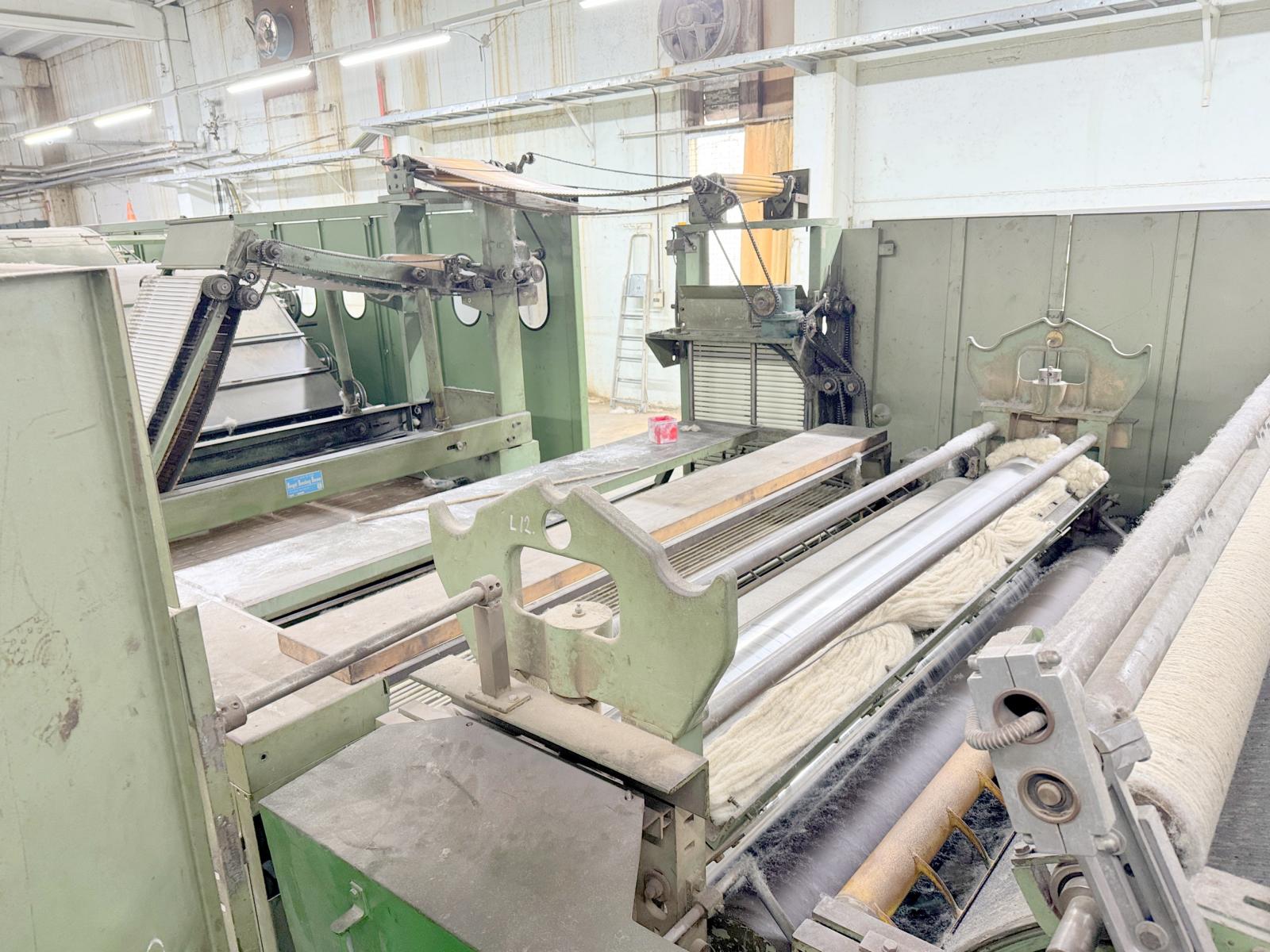

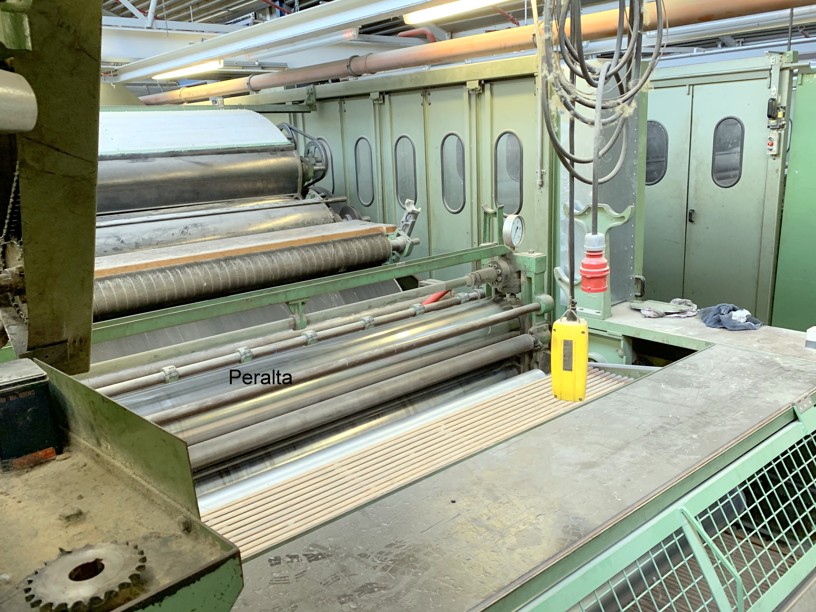

Peralta, wideband layer

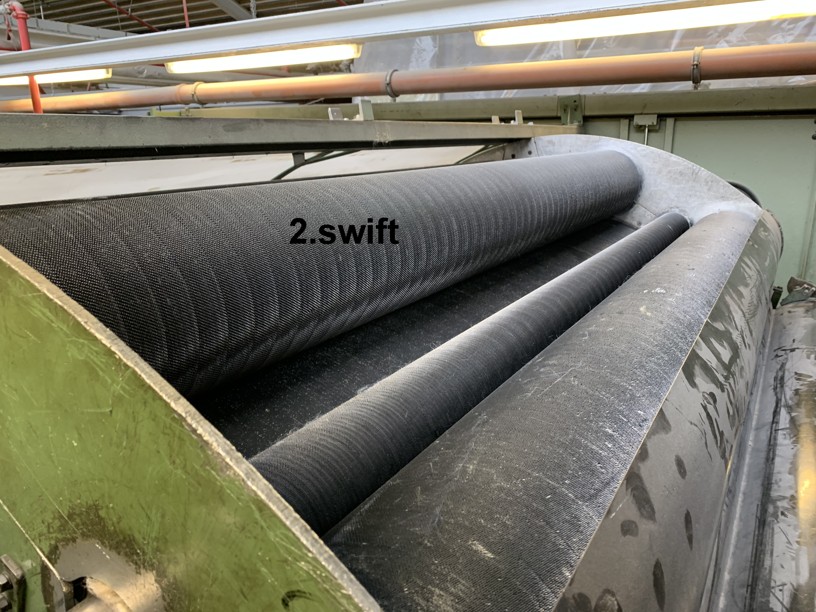

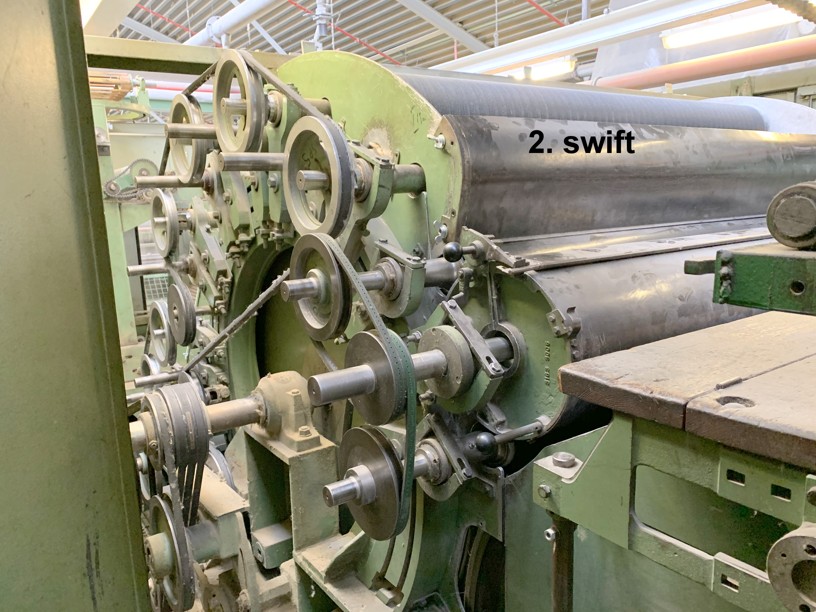

second swift:
main cylinder dia.1.250 mm with 5 pairs worker and stripper, doffer 1.050 mm, fancy roller, flexible clothes
transfer roller

third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
high speed flying comb, delivery speed until 40m/min

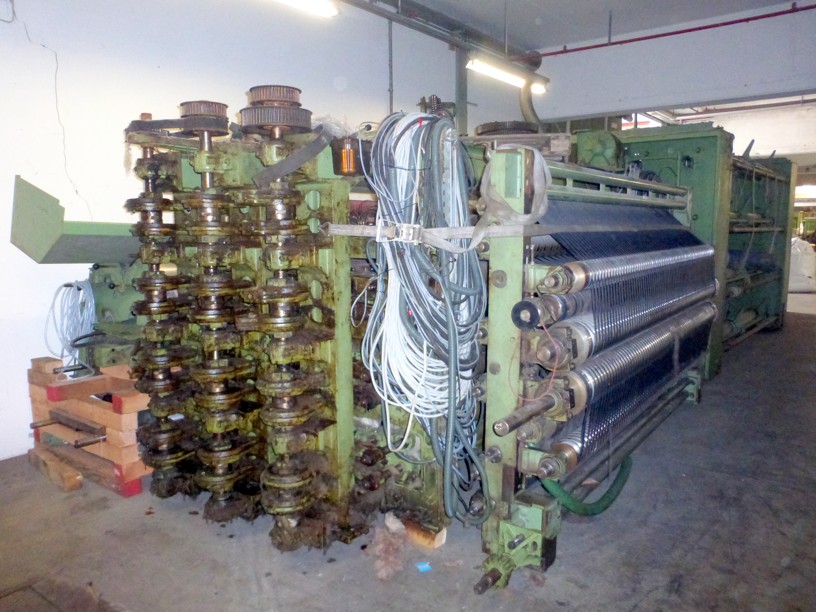

double apron condenser, 160 good ends

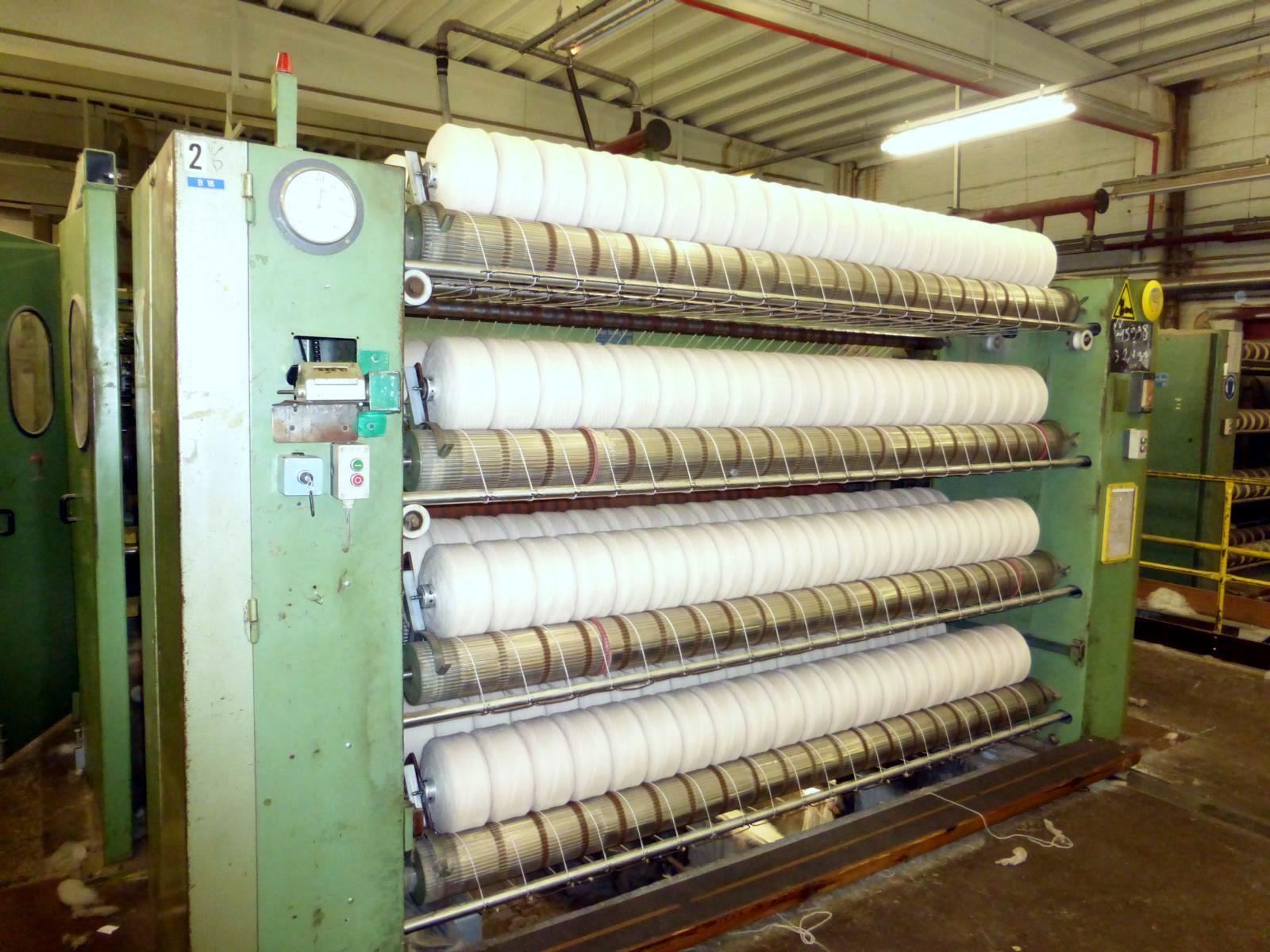

double winder frame with 8 bobbins each 20 ends

Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.

A complete pneumatic extraction system with vacuum pump and filter containers is also available for sale.

 S2566-HDB_Galaxy_cross_section_drawing.pdf

Specification:

-

Specification:

-

Specification:

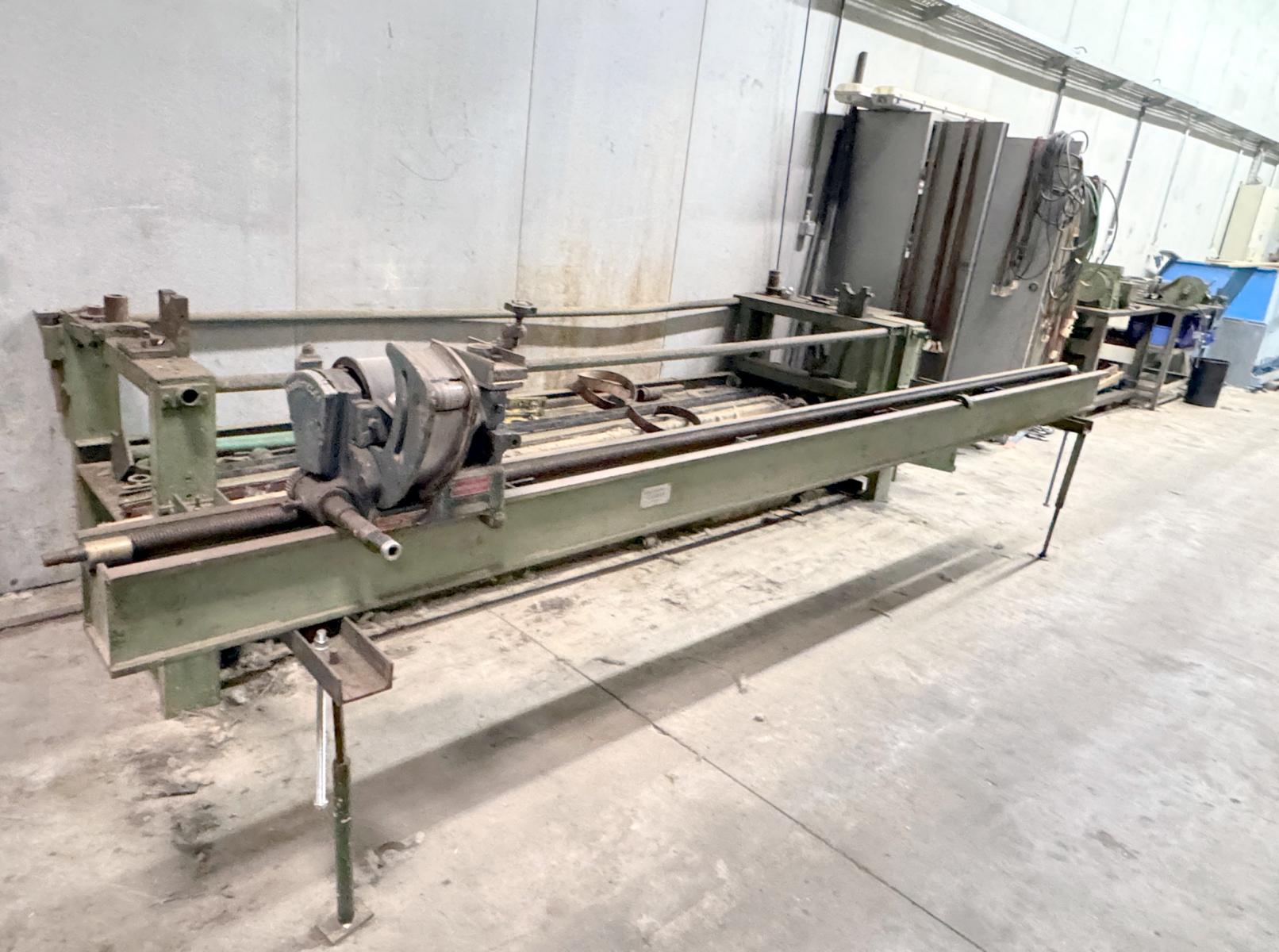

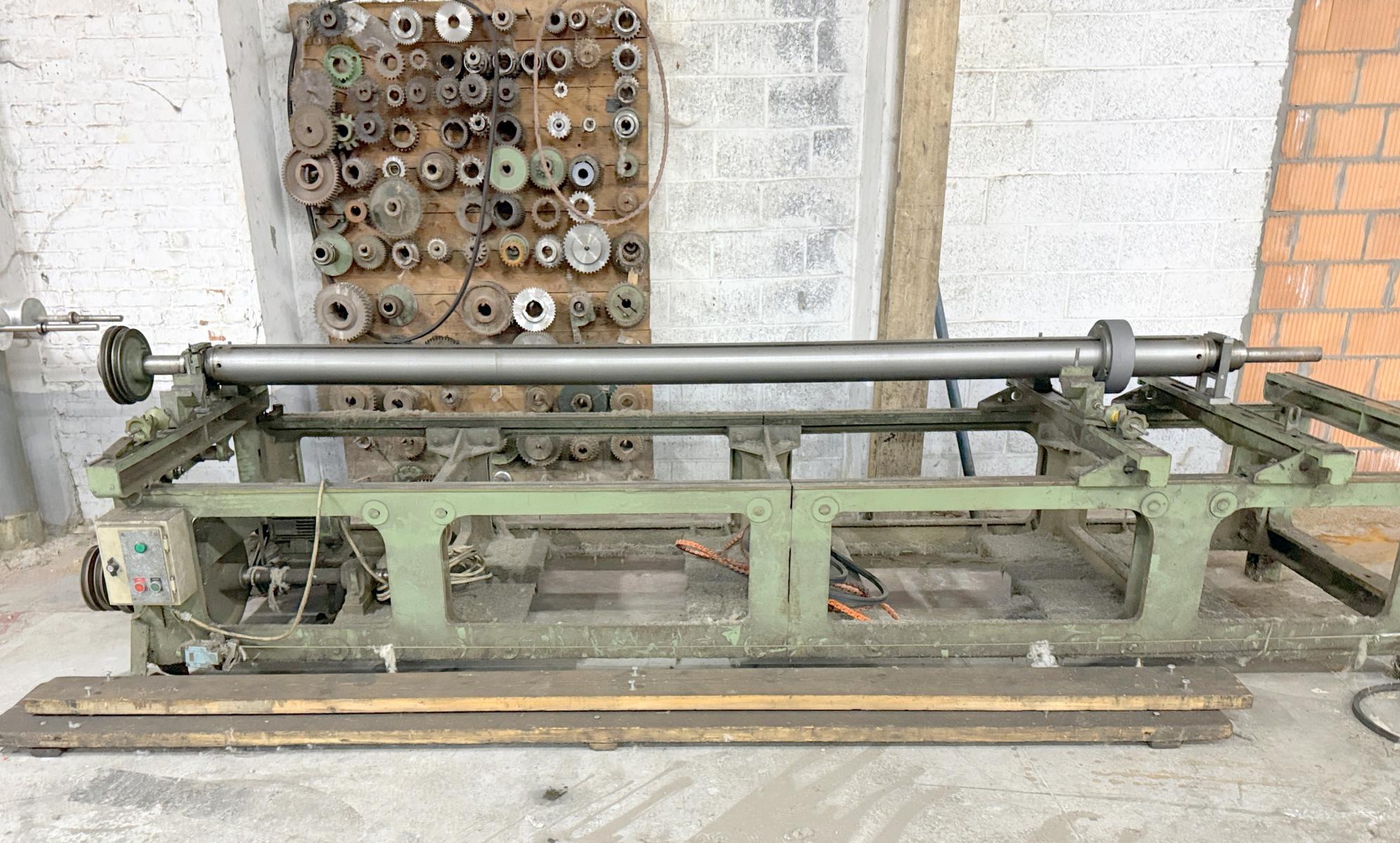

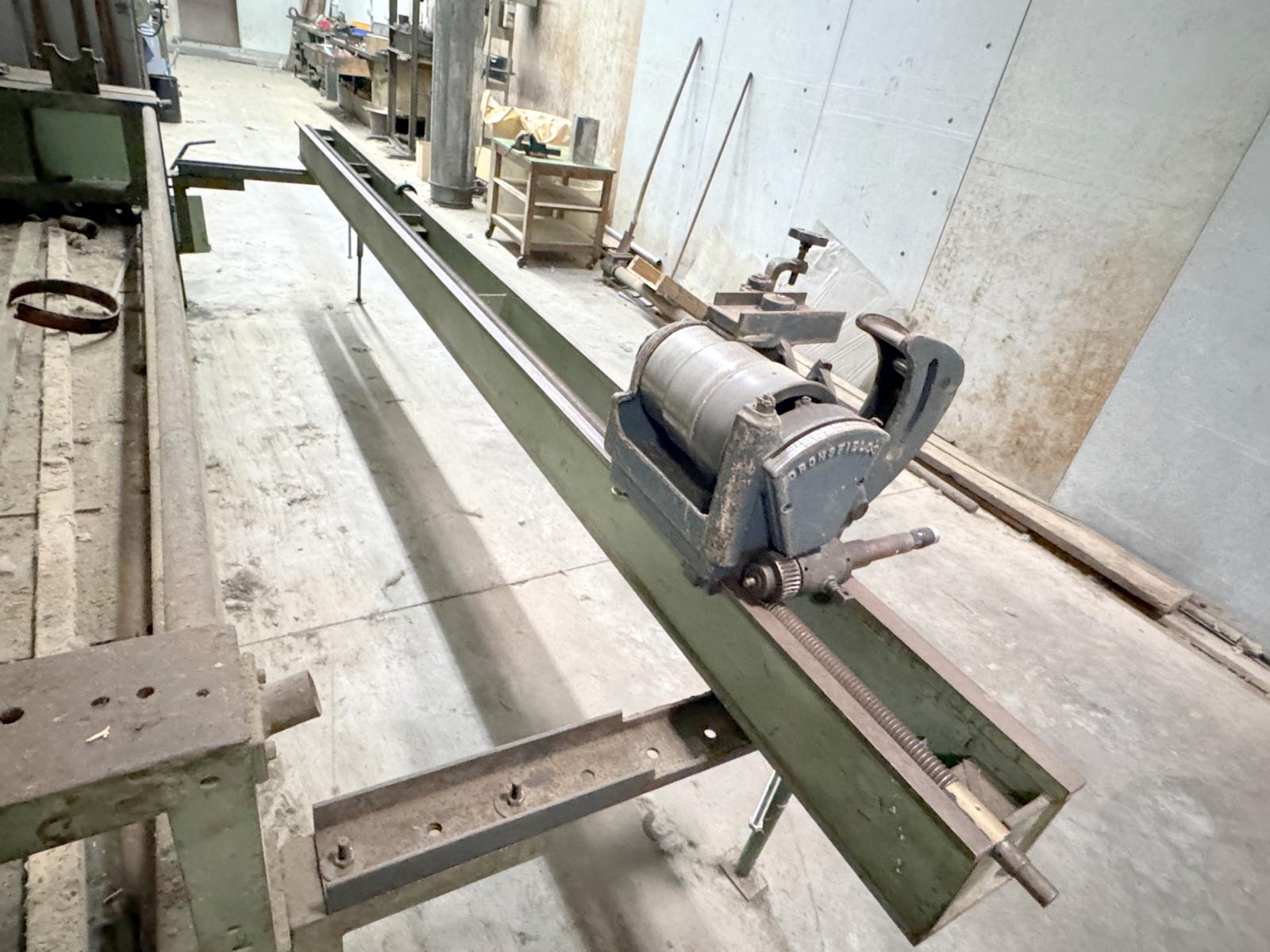

ith grinder roller, with support and special device for mounting flexible clothes

Specification:

with vacuum pump 30kW, 2 filter containers anf fine filter

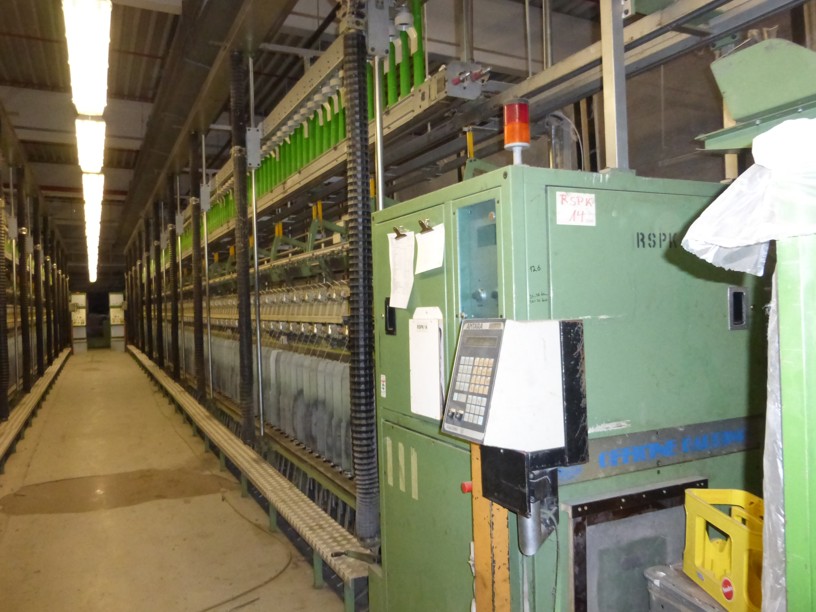

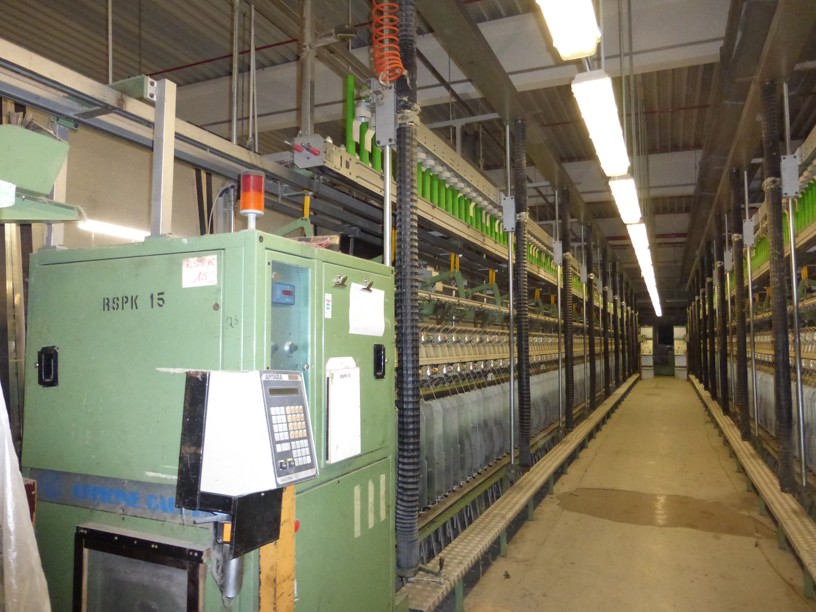

Specification:

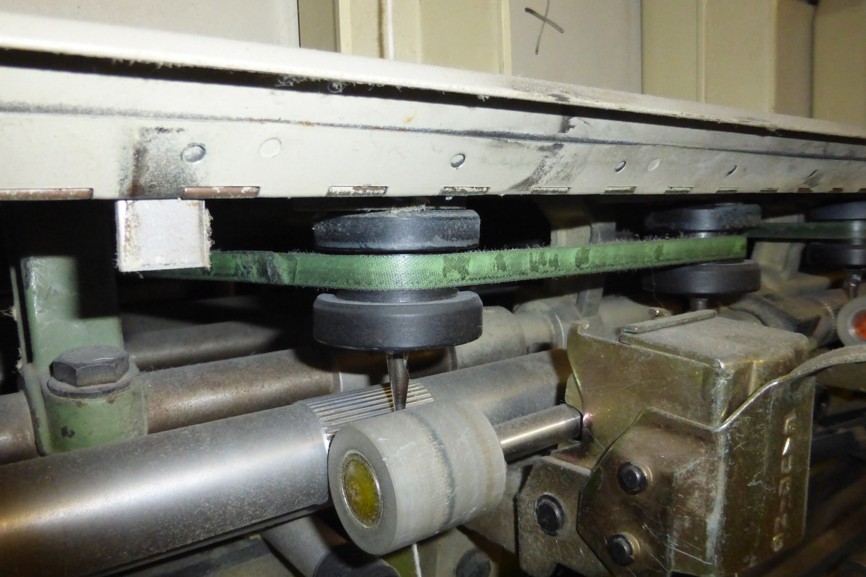

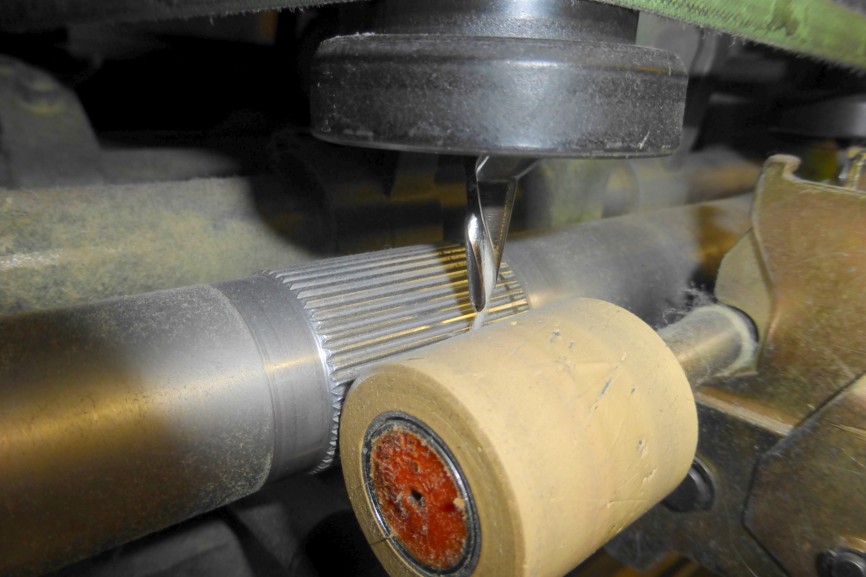

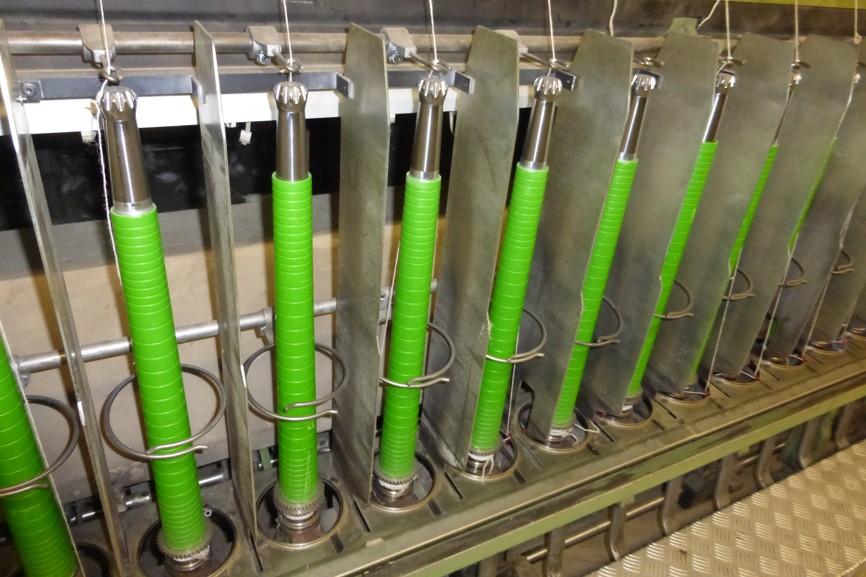

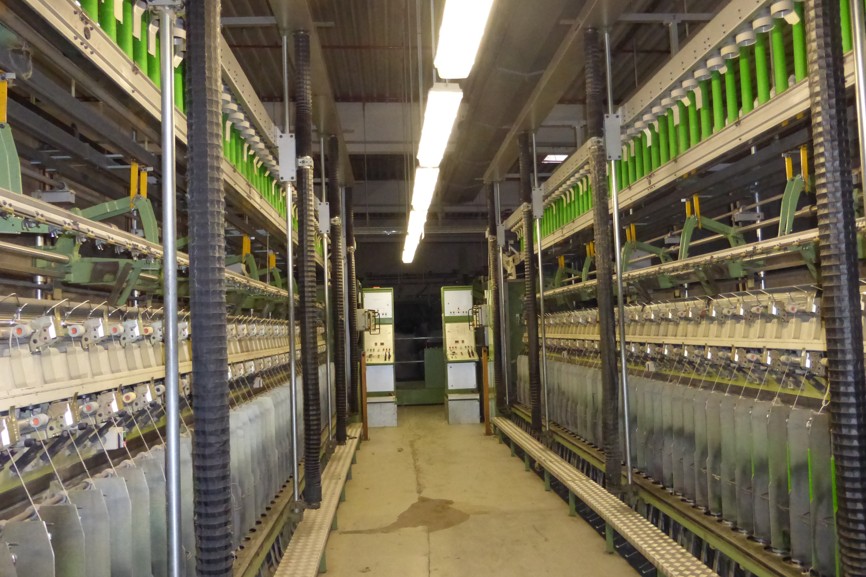

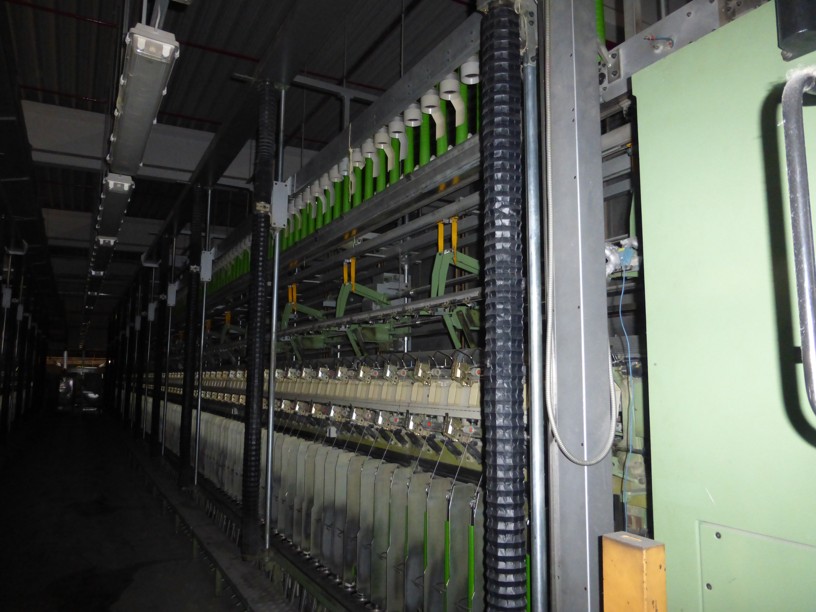

each 160 spindles, pitch140mm, ring diameter 110mm, tubes 500mm, false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with

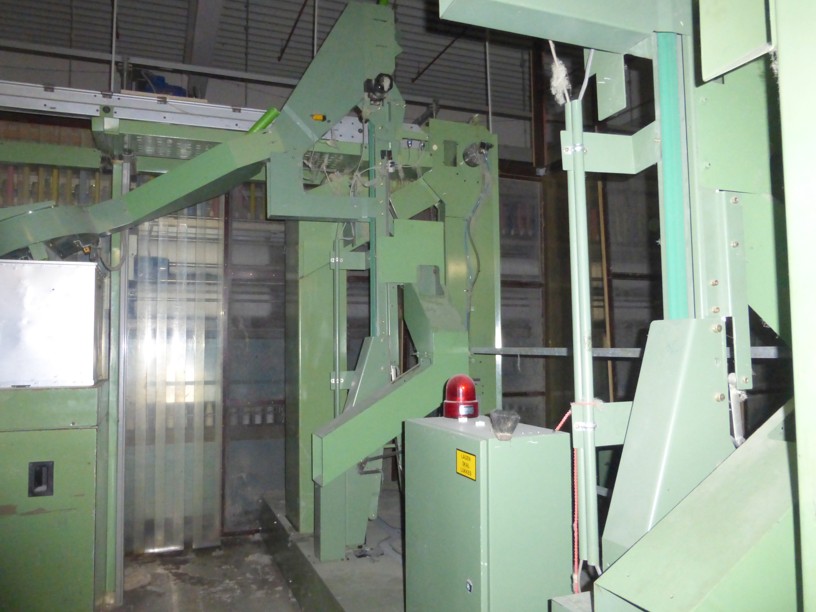

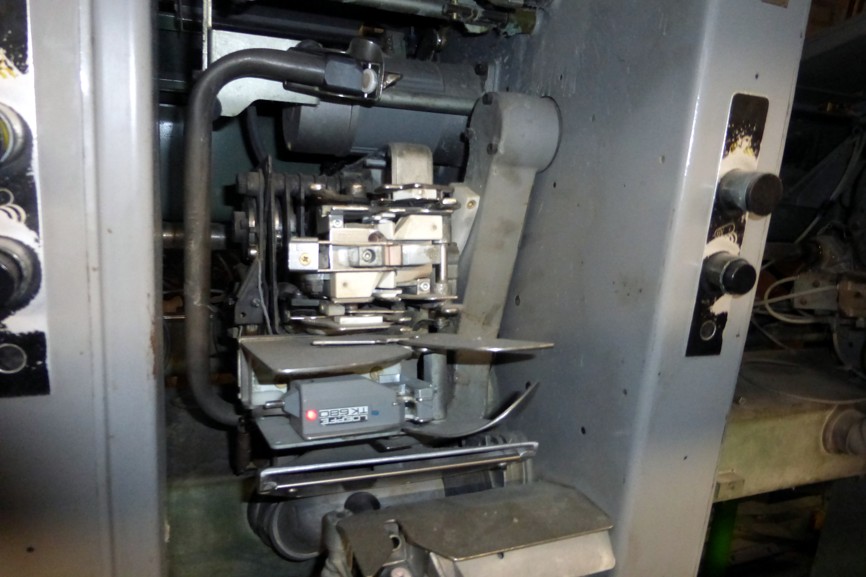

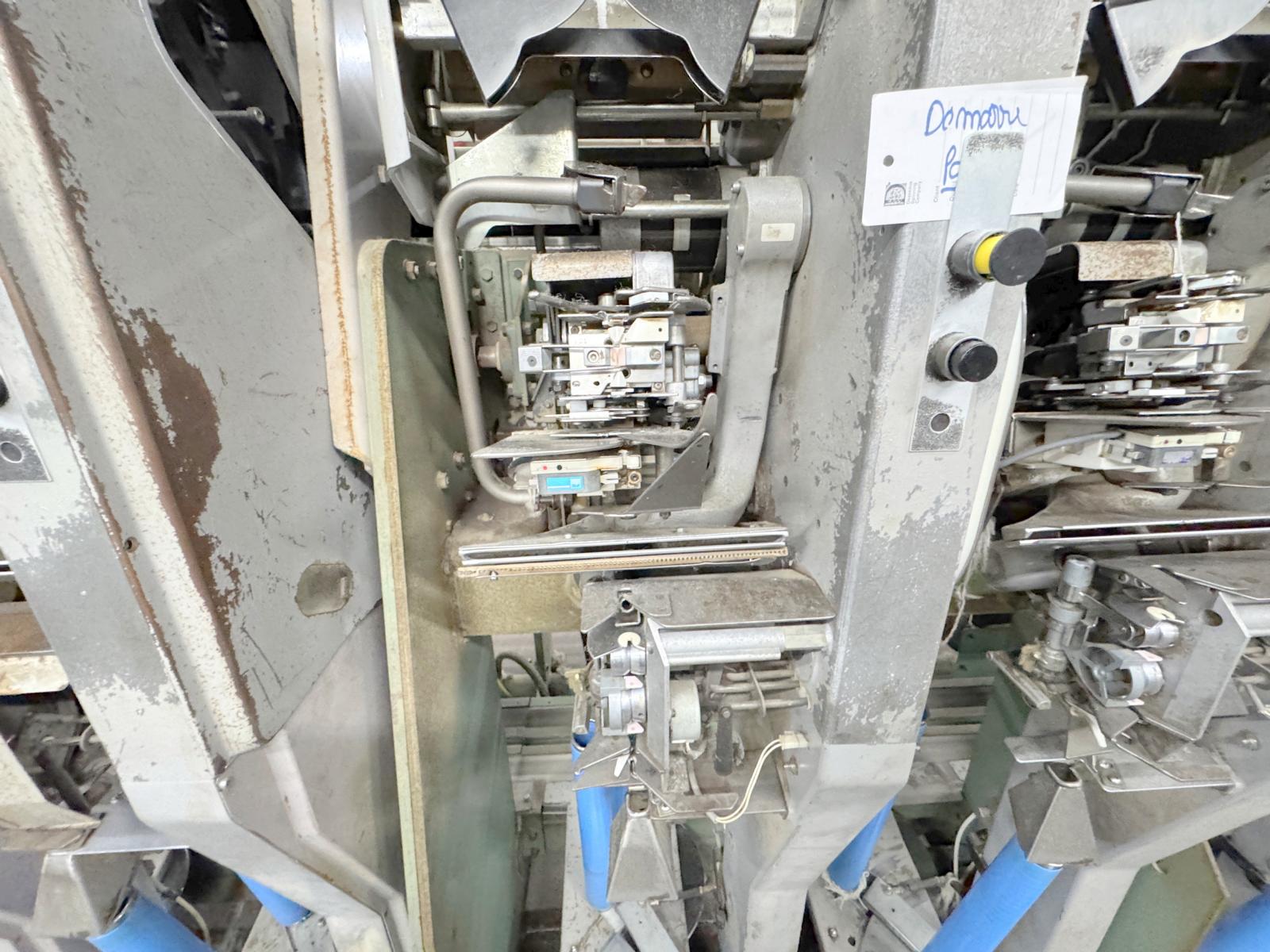

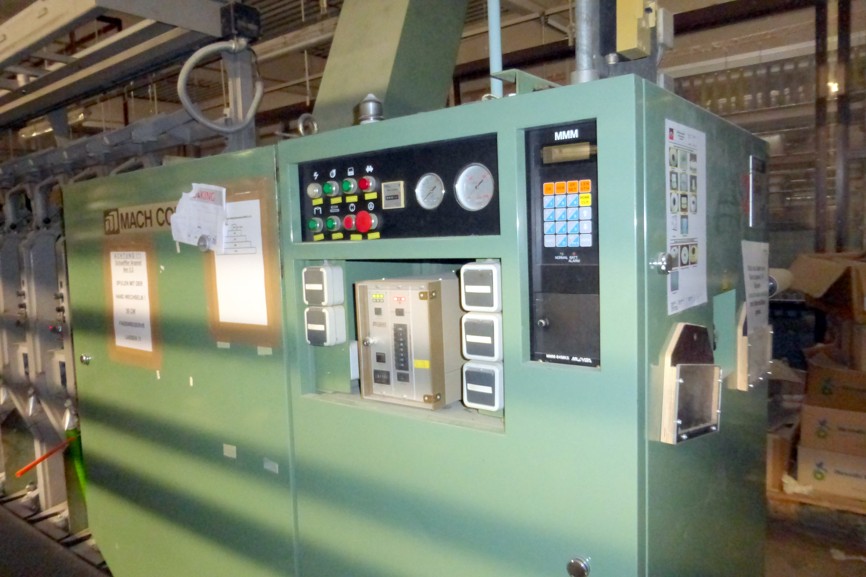

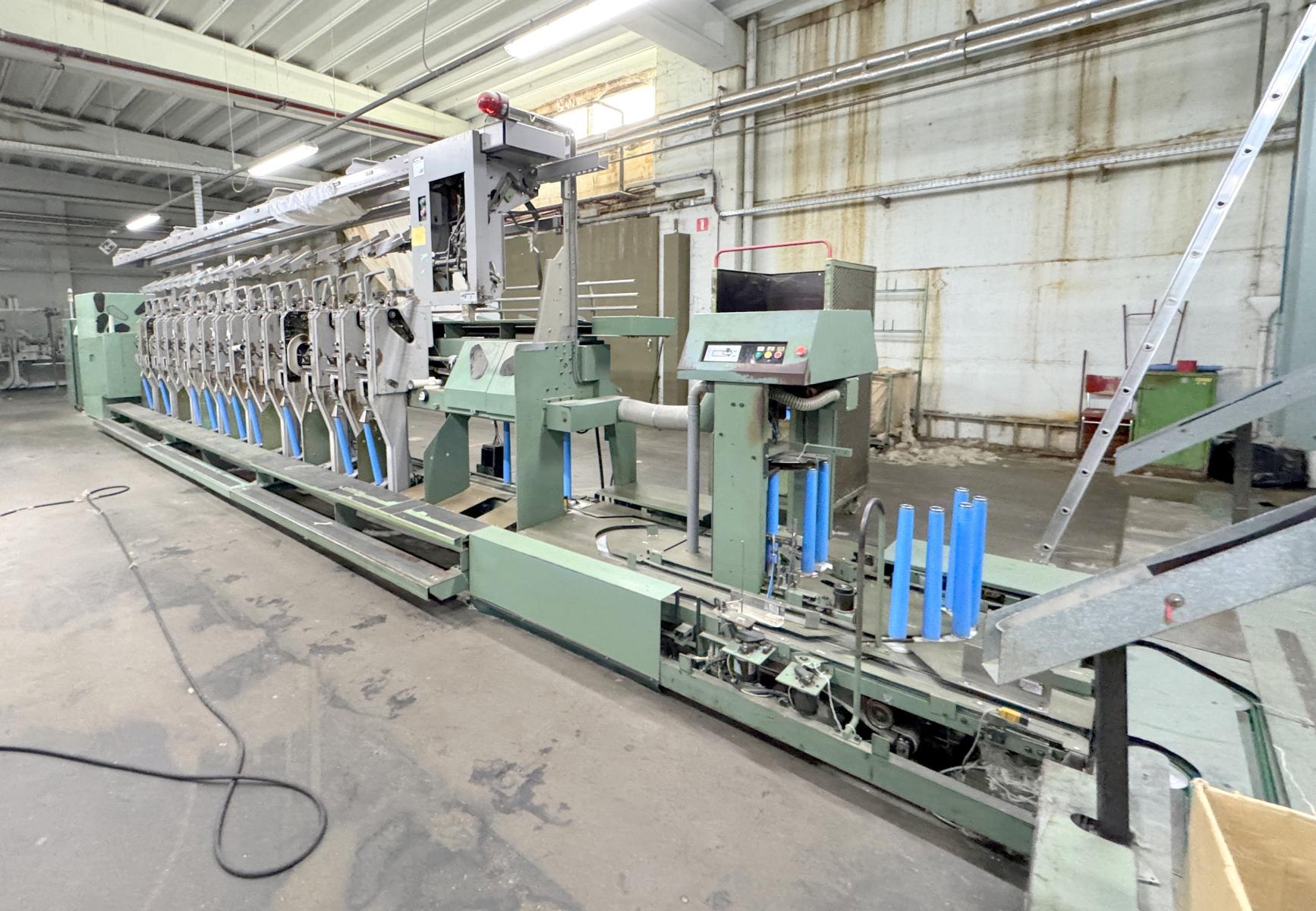

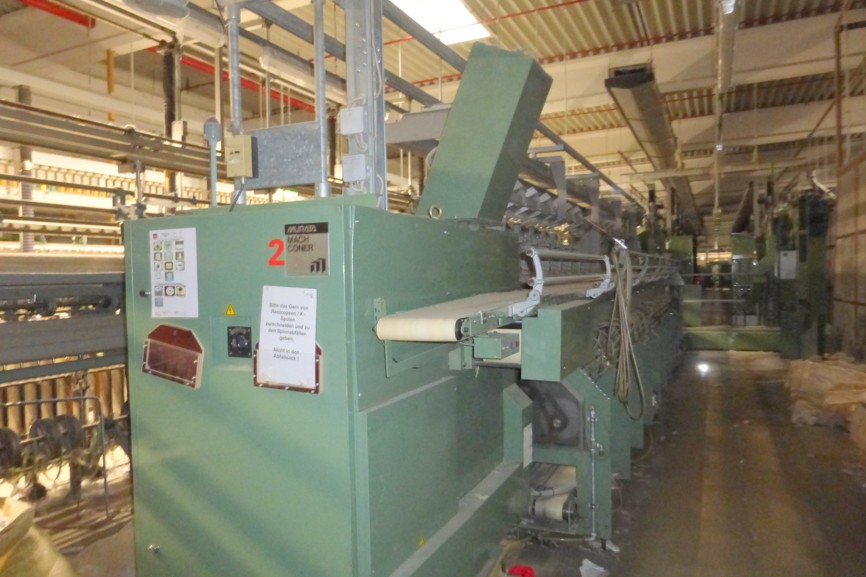

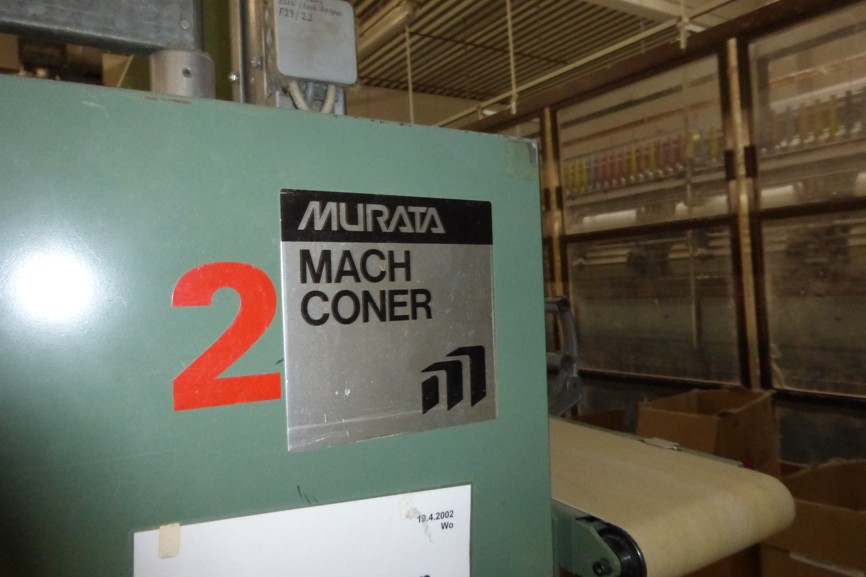

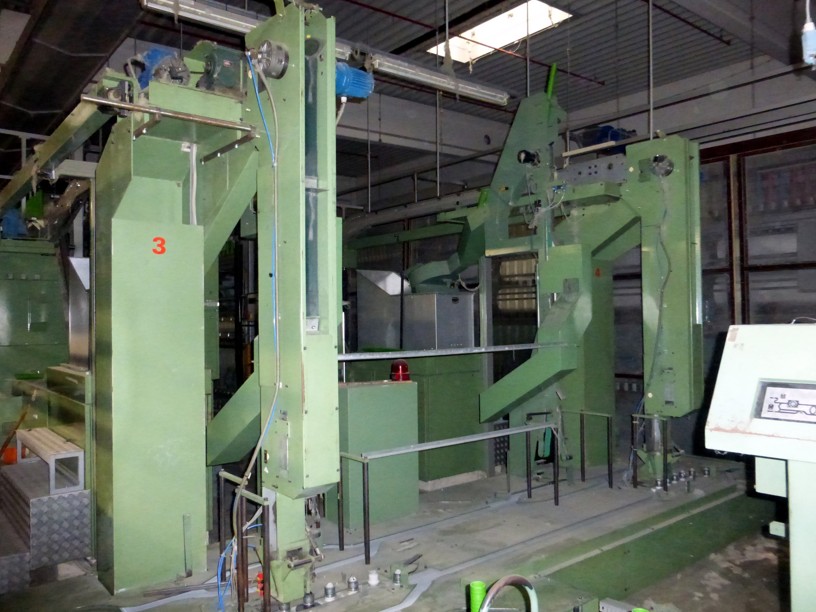

1 Murata automatic winder
12 spindles, 10” traverse, tubes 280mm, electronic clearer, splicer, automatic doffer

Specification:

each 160 spindles, pitch140mm, ring diameter 110mm, tubes 500mm, false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with

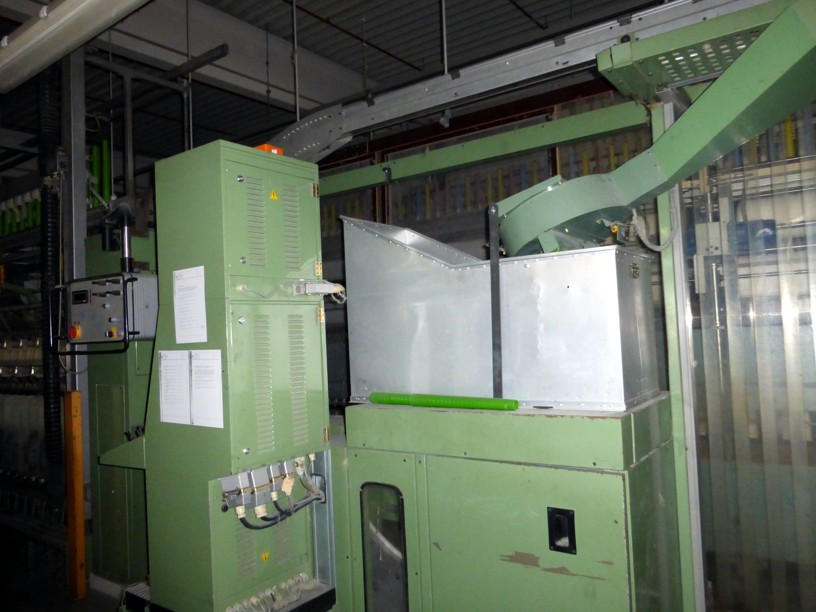

1 Murata automatic winder
12 spindles, 10” traverse, tubes 280mm, electronic clearer, splicer, automatic doffer

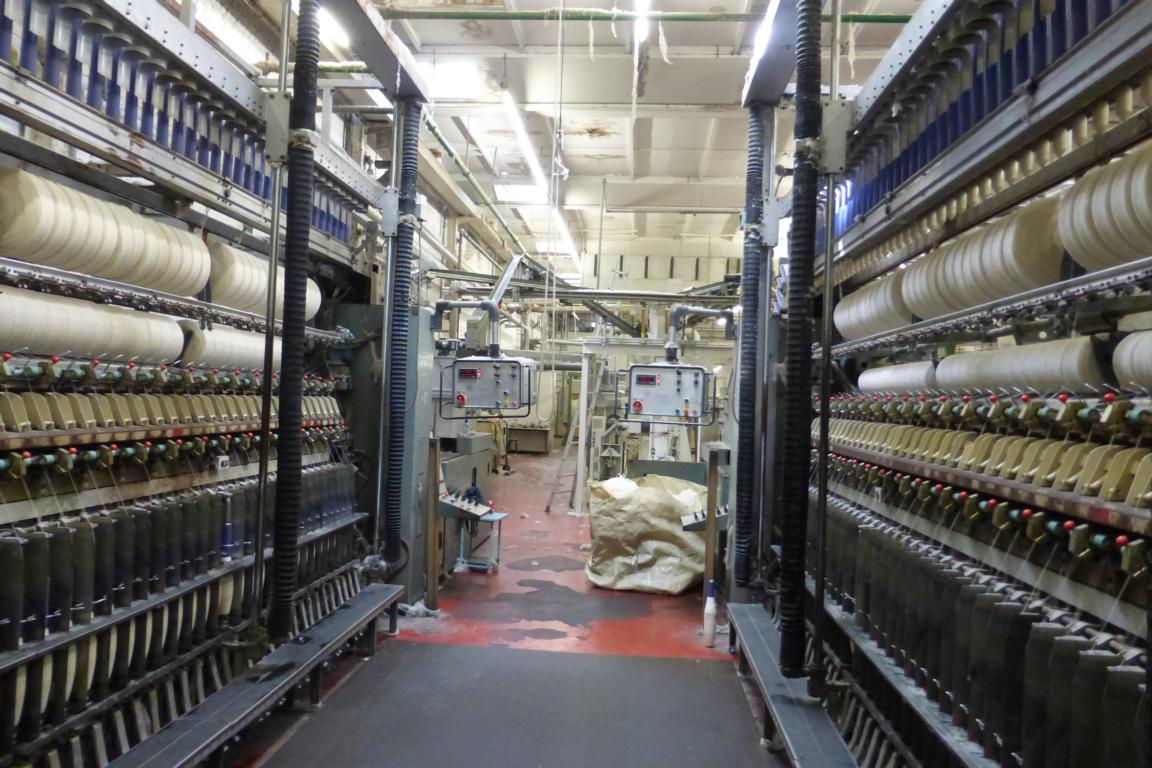

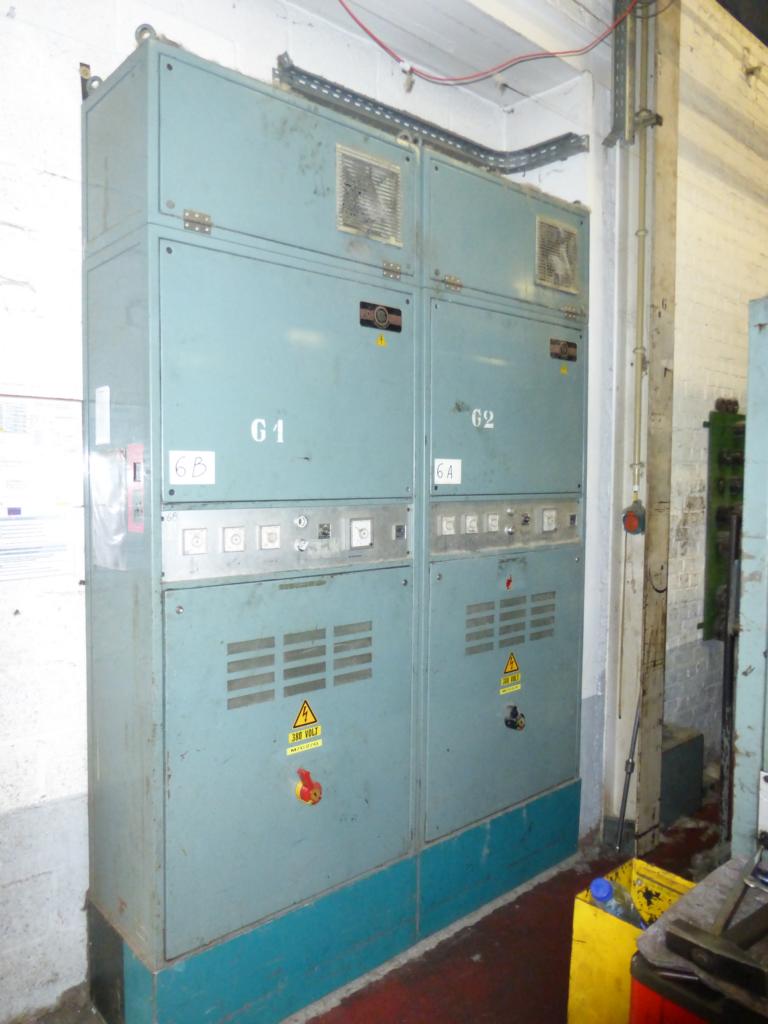

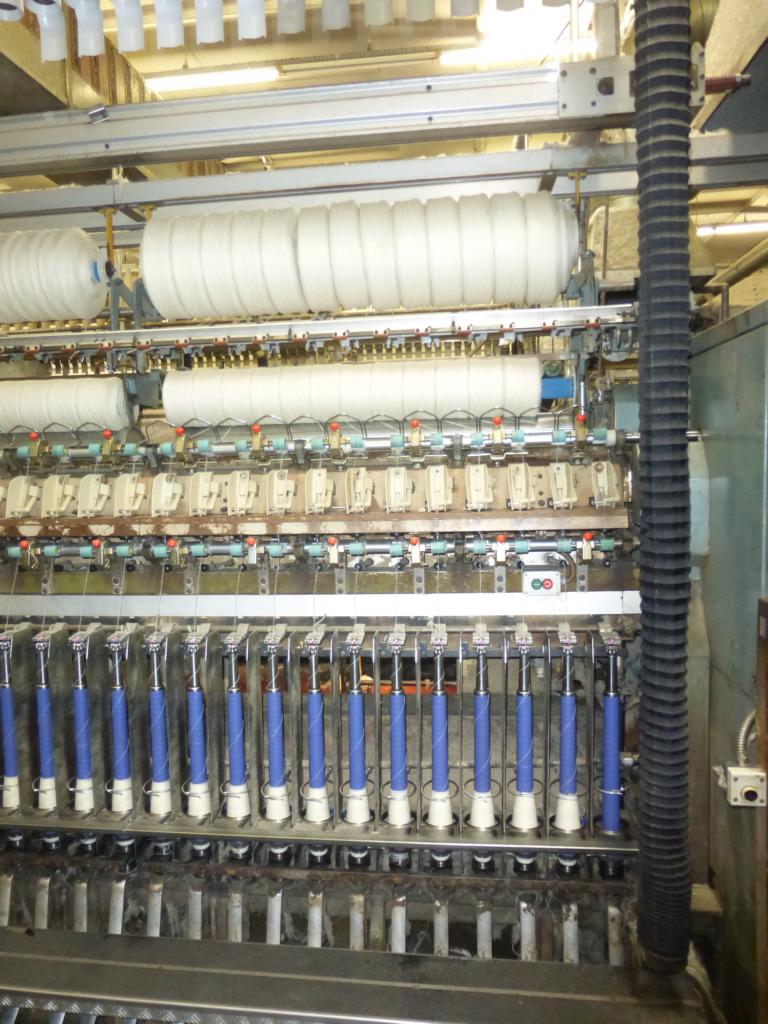

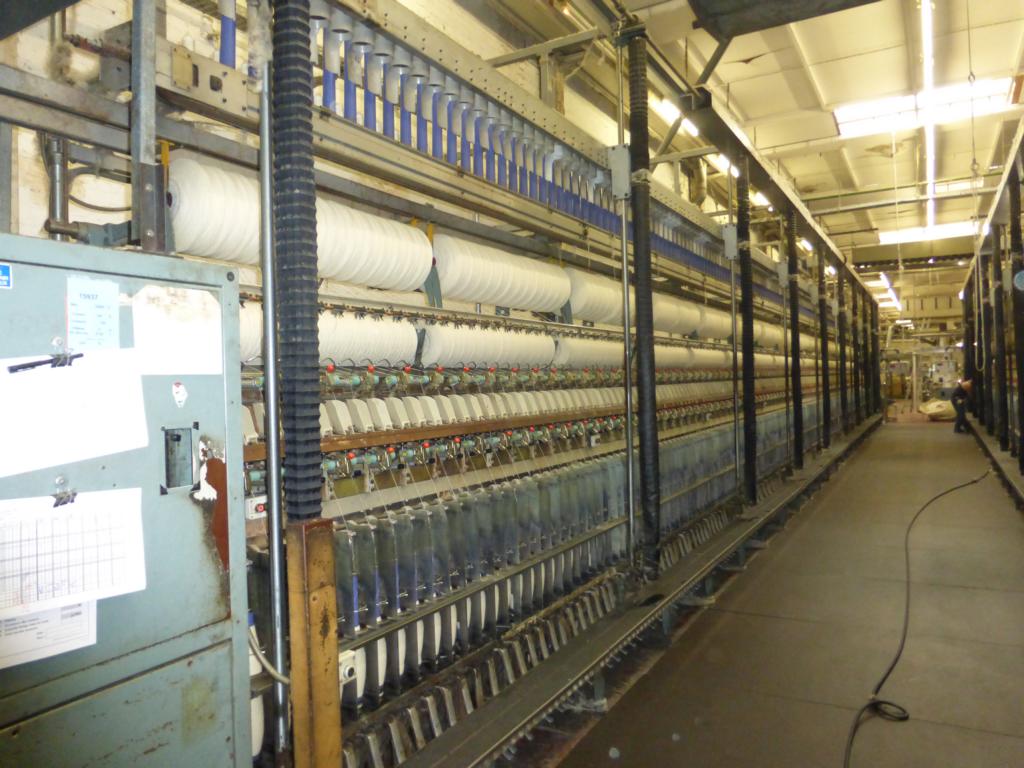

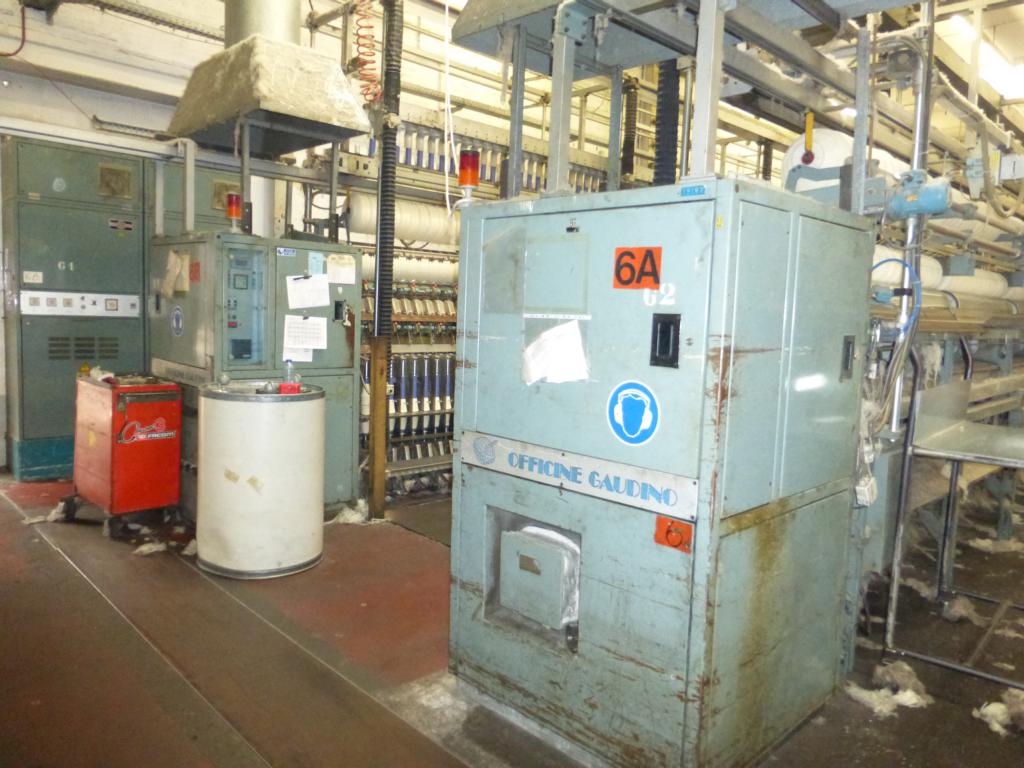

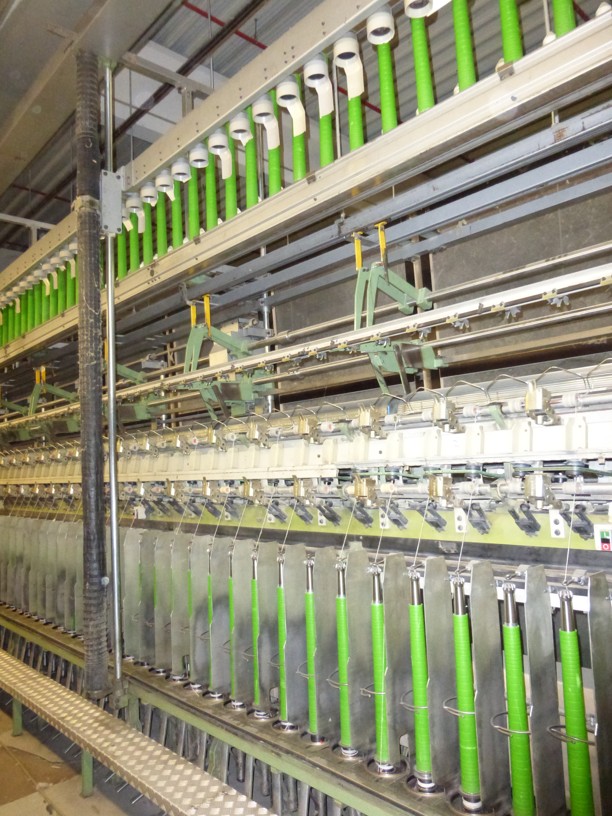

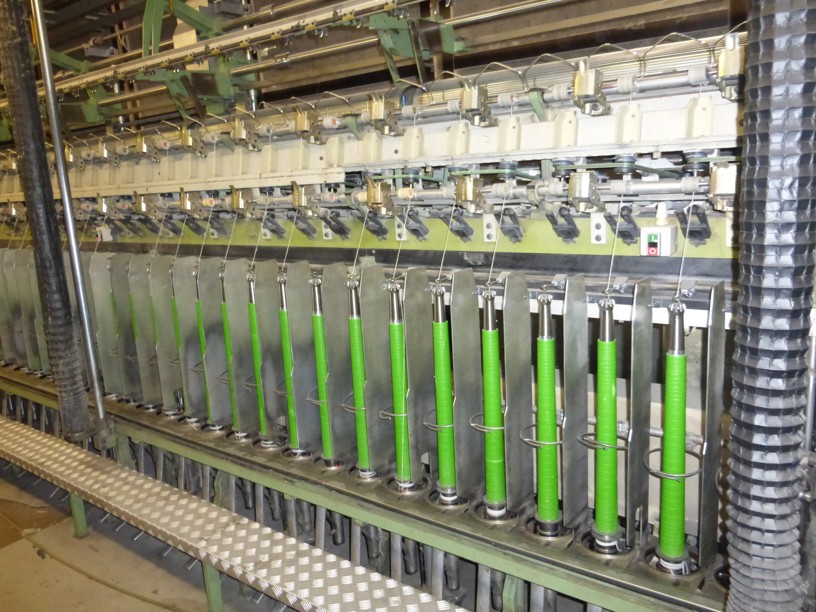

Specification:

each 208 spindles, pitch120mm, ring diameter 90mm, tubes 450mm,
false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with

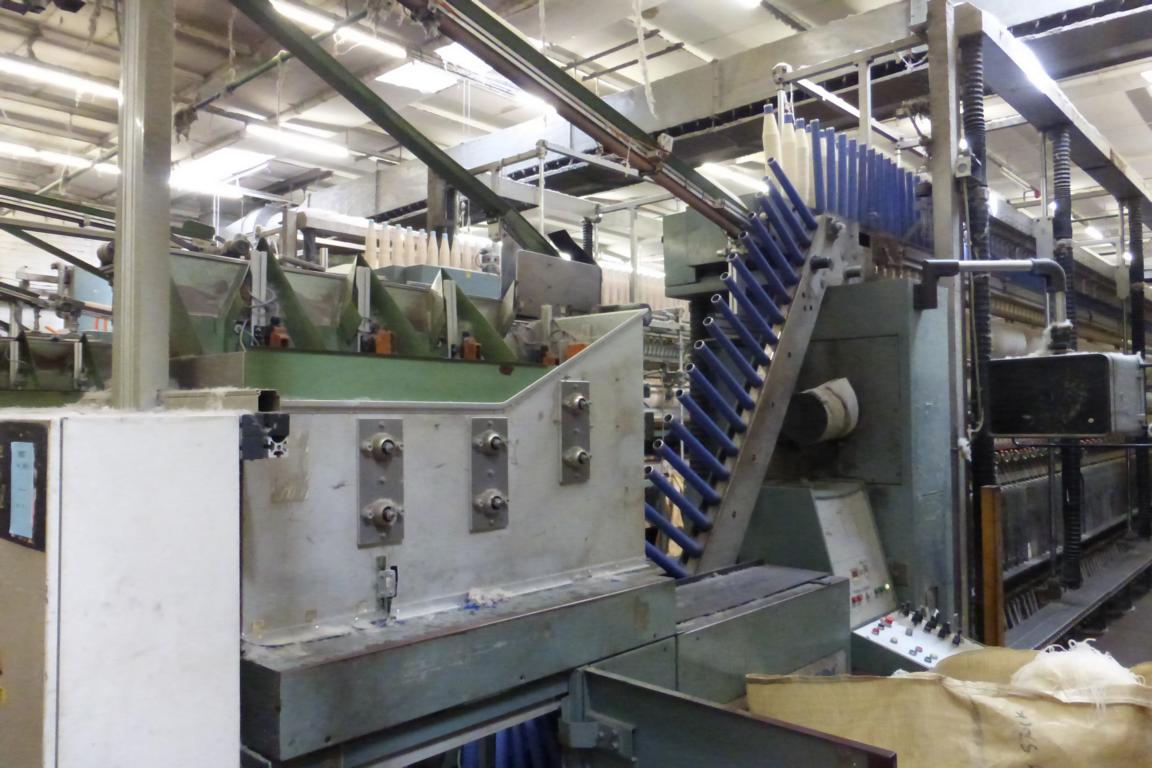

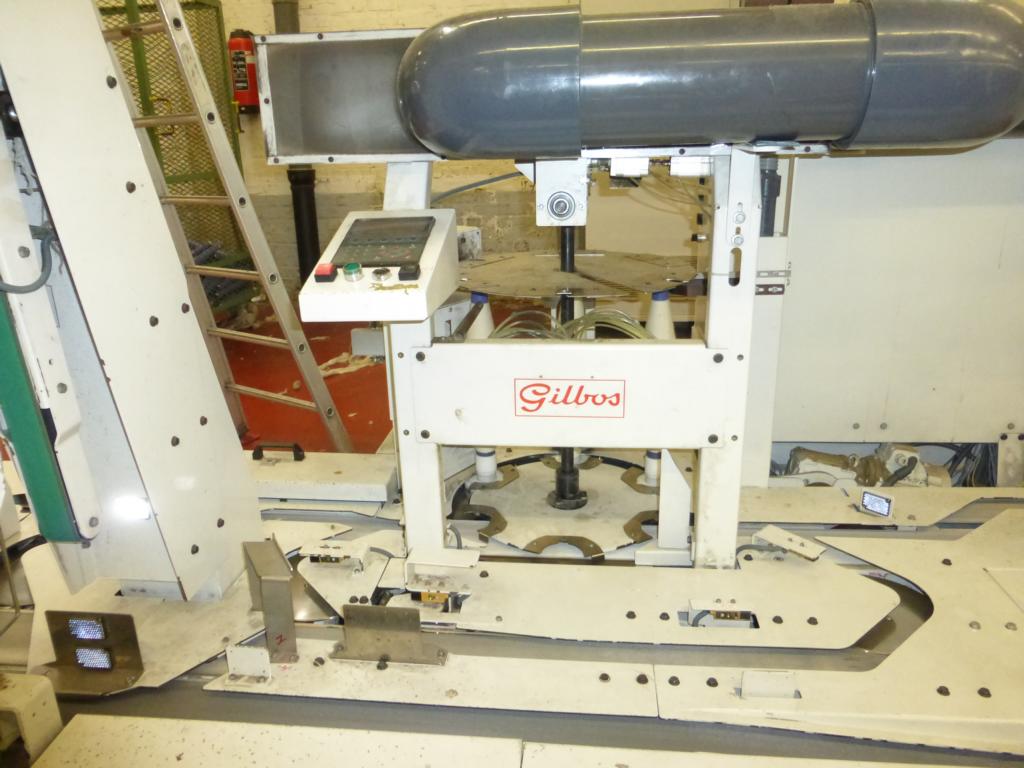

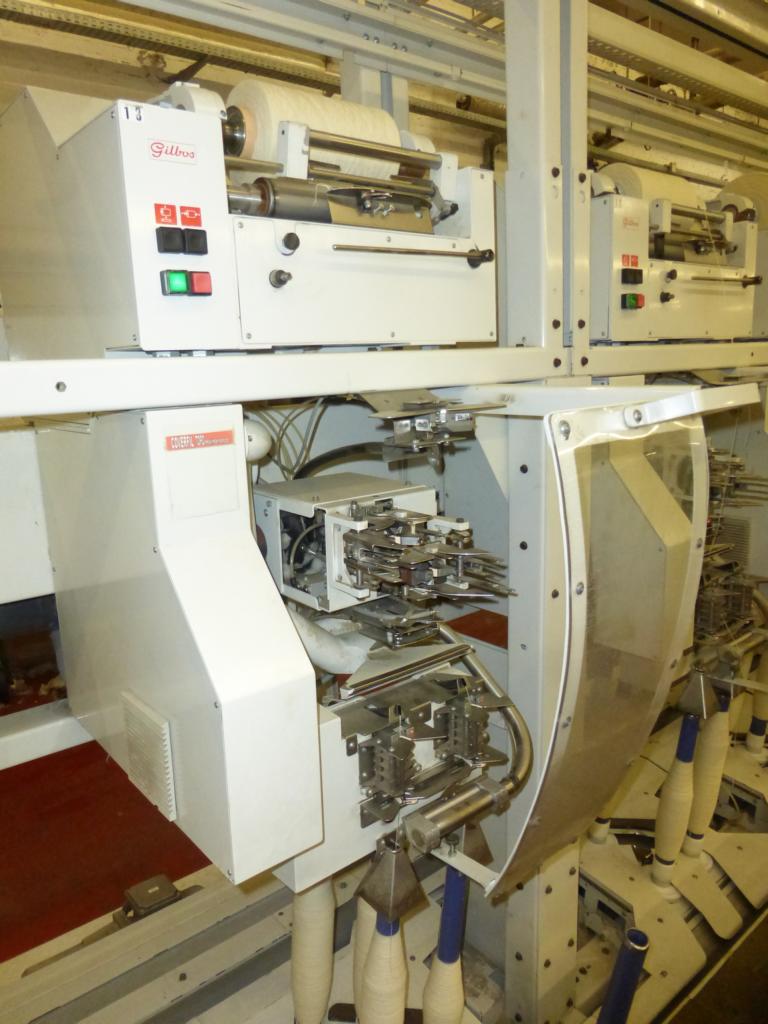

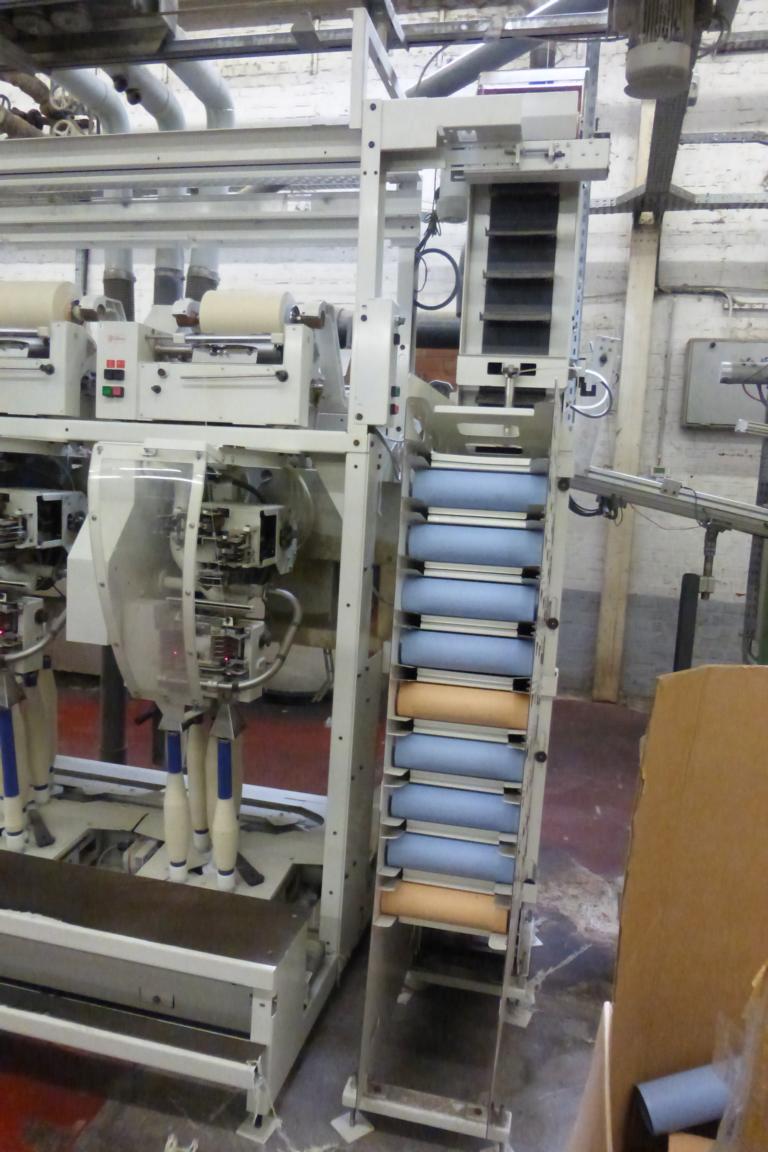

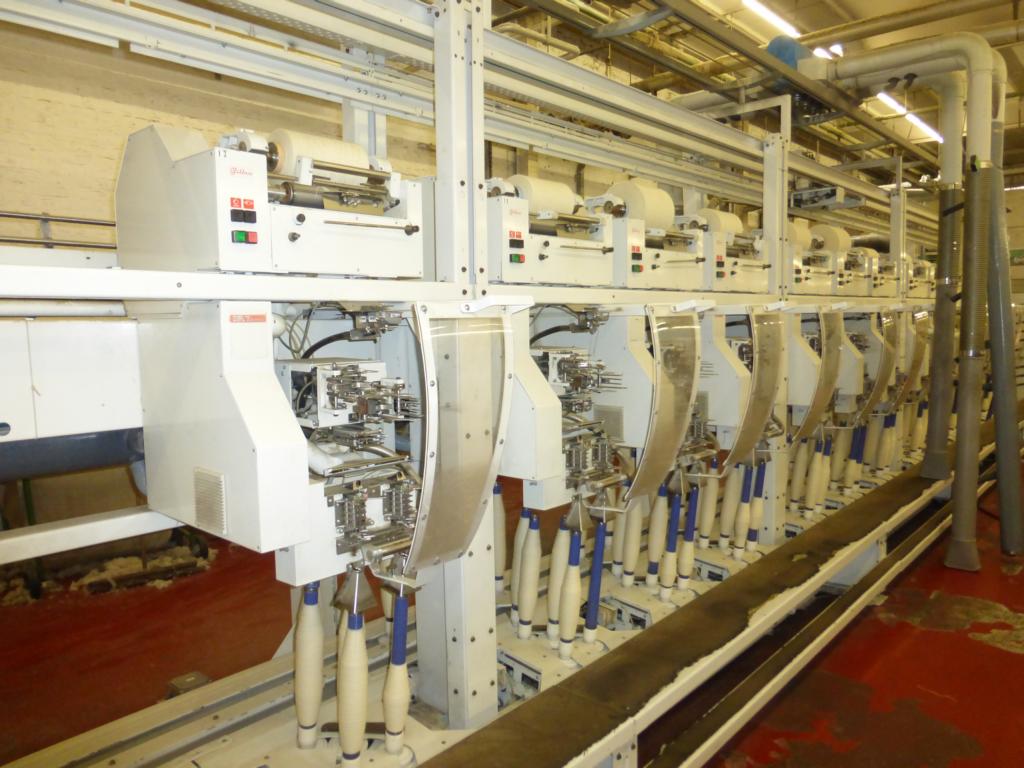

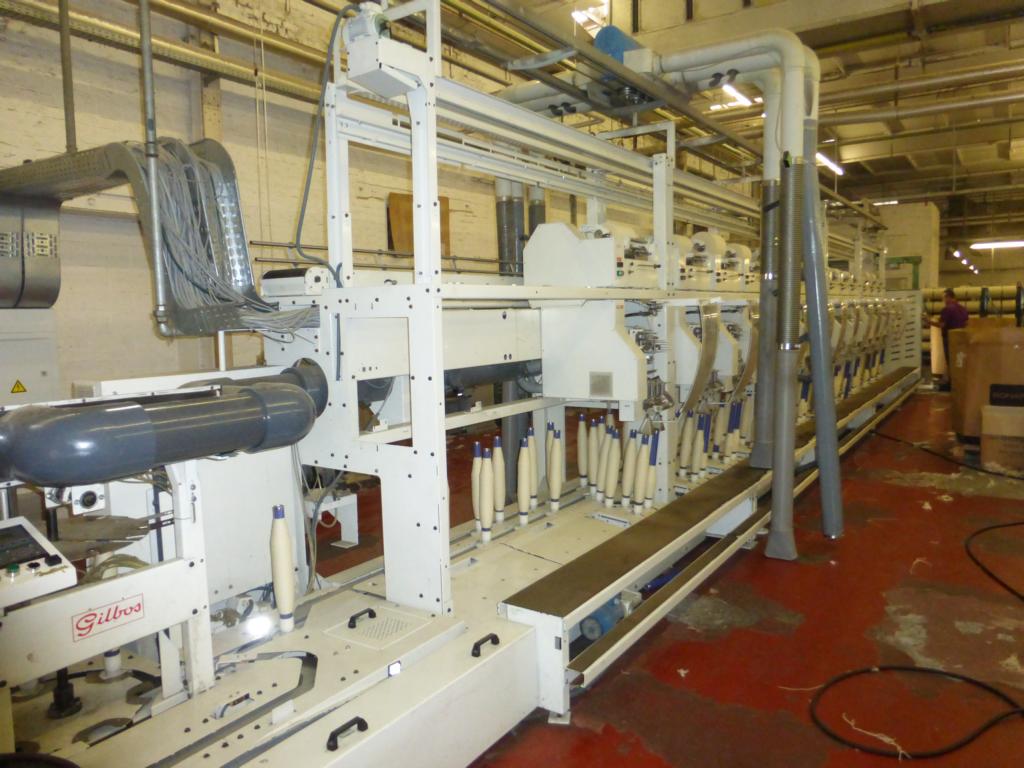

1 Gilbos automatic Twin Coner, year 2007
assembling winder, 2-ply, 13 spindles, 10” traverse, tubes 280mm, electronic Loepfe clearer, splicer, automatic doffer

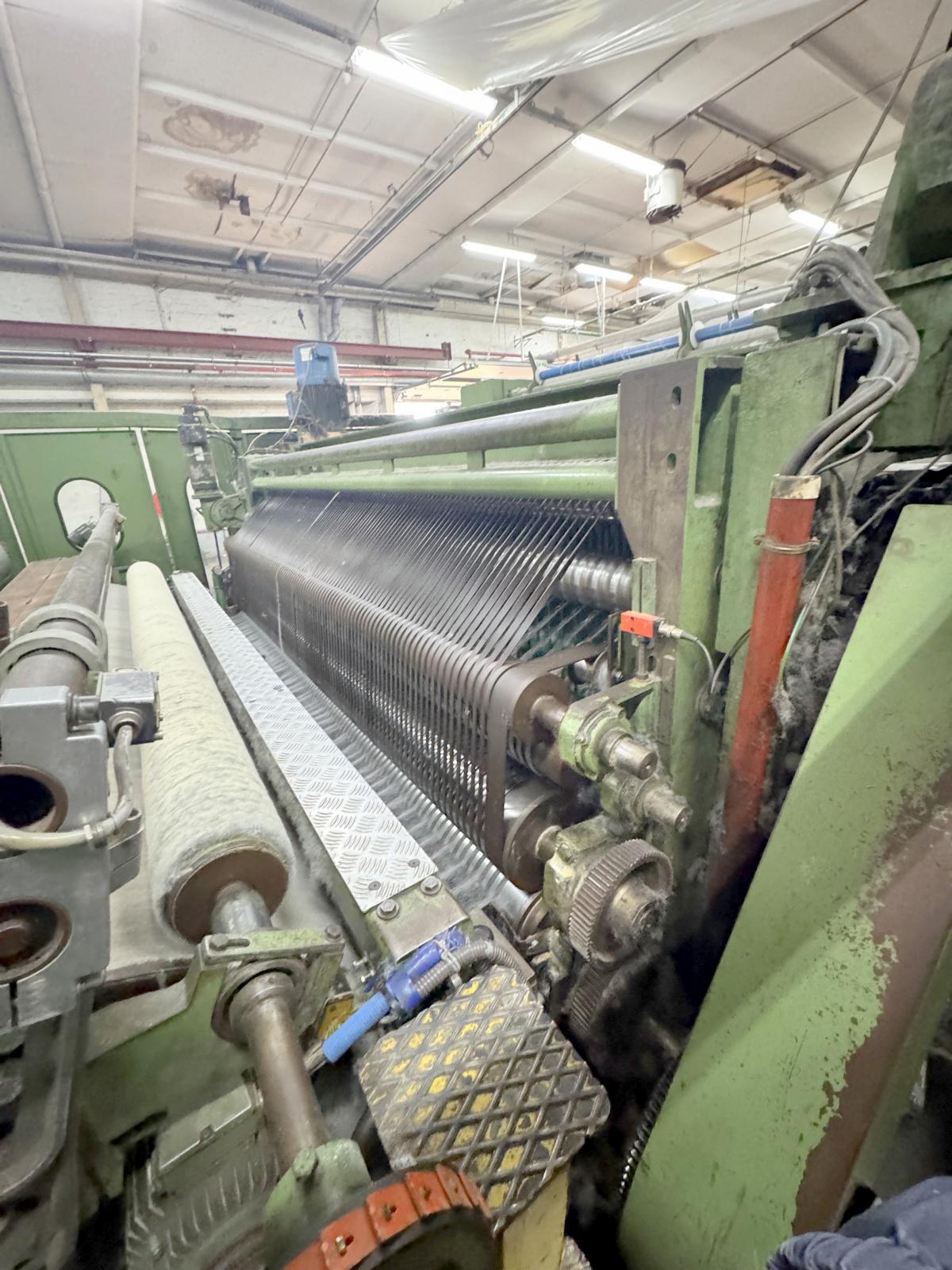

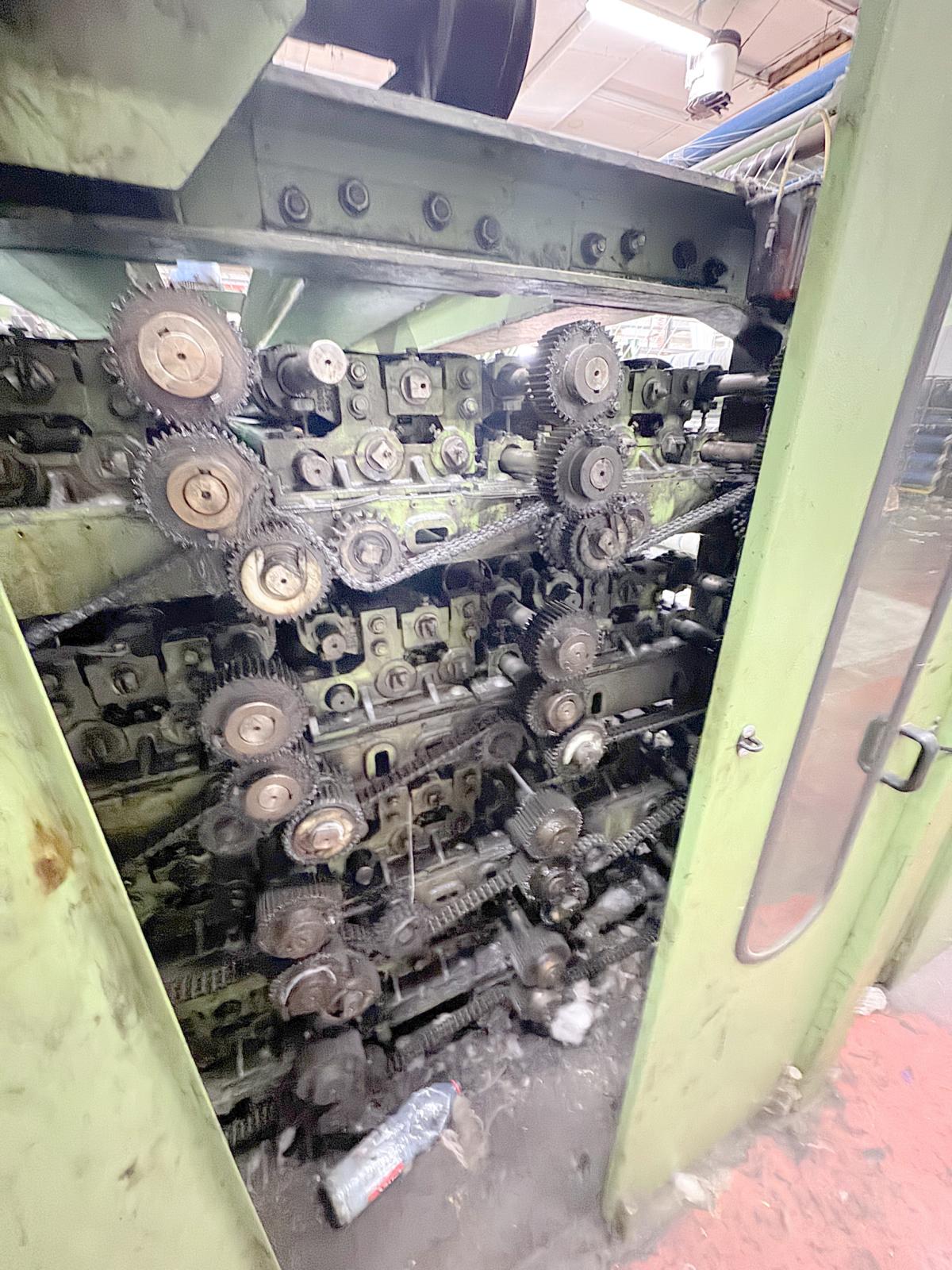

Specification:

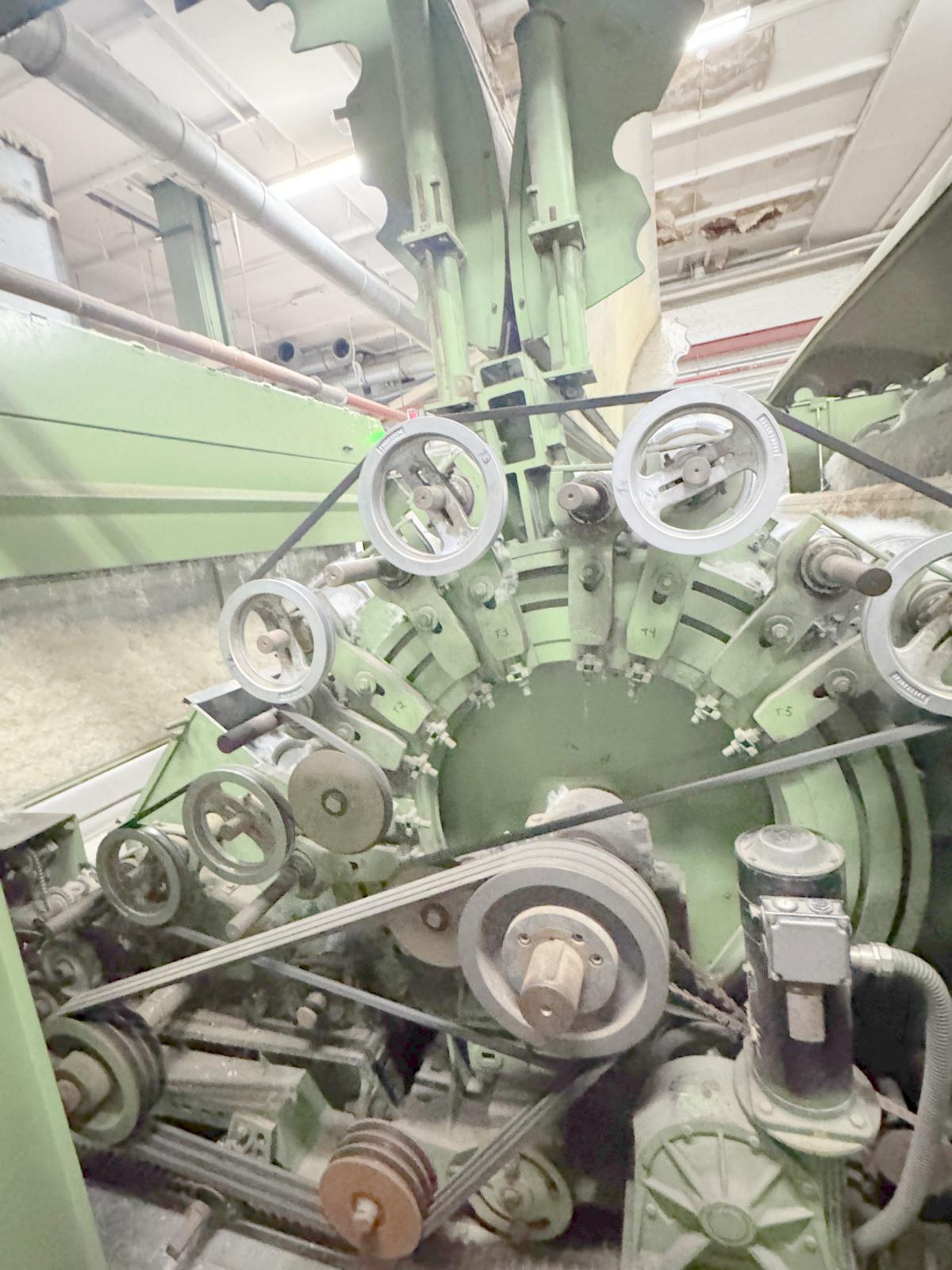

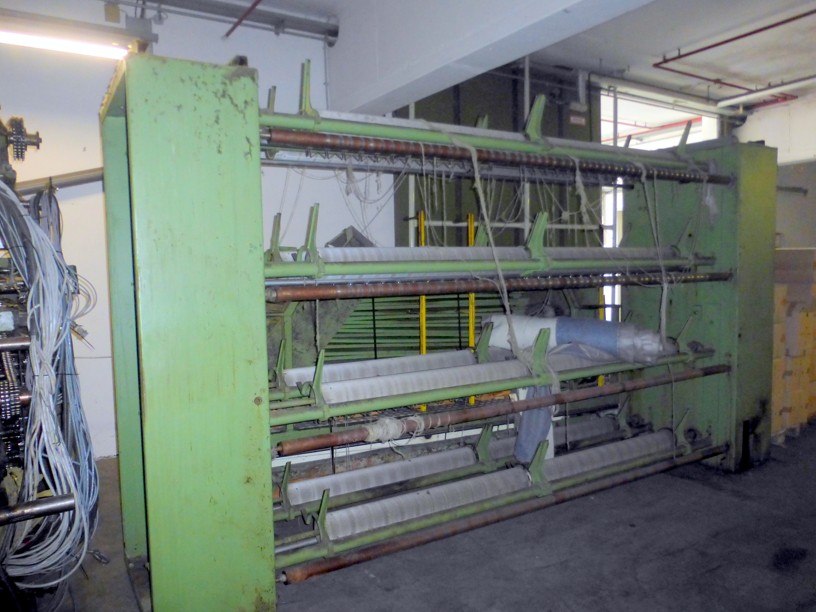

HDB, 128 good ends, ww 3.000 mm

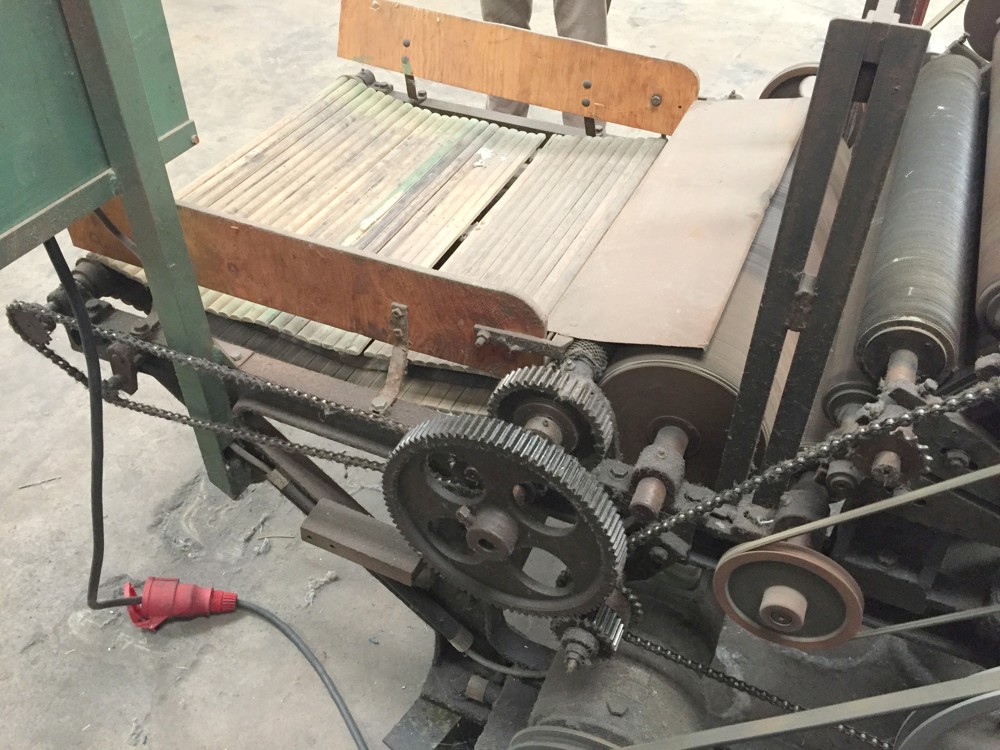

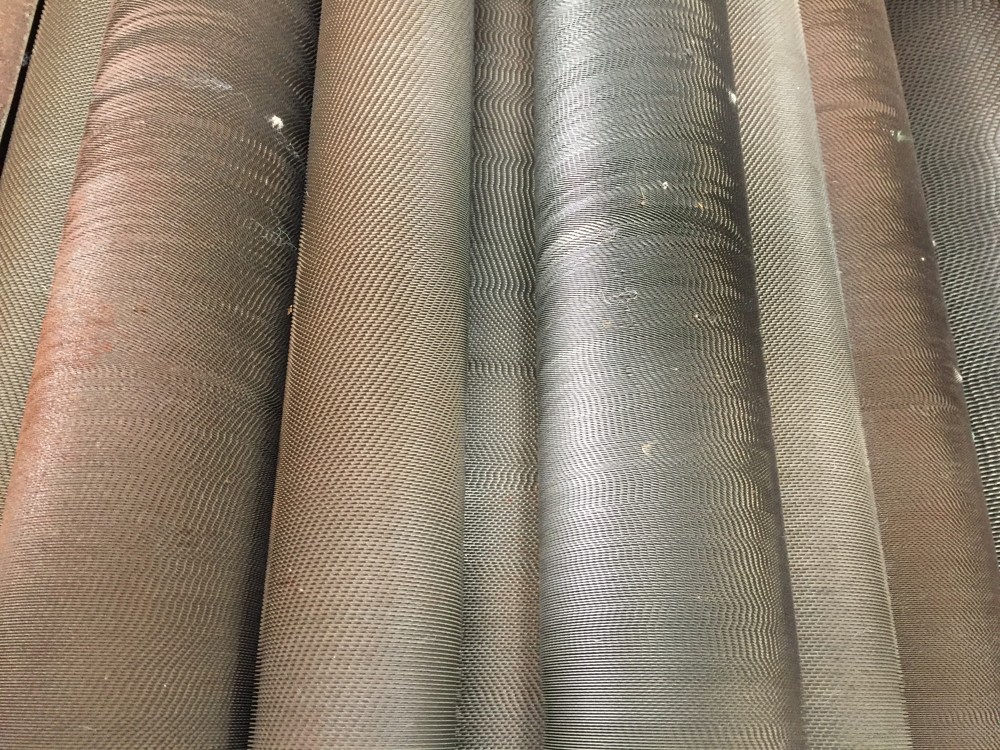

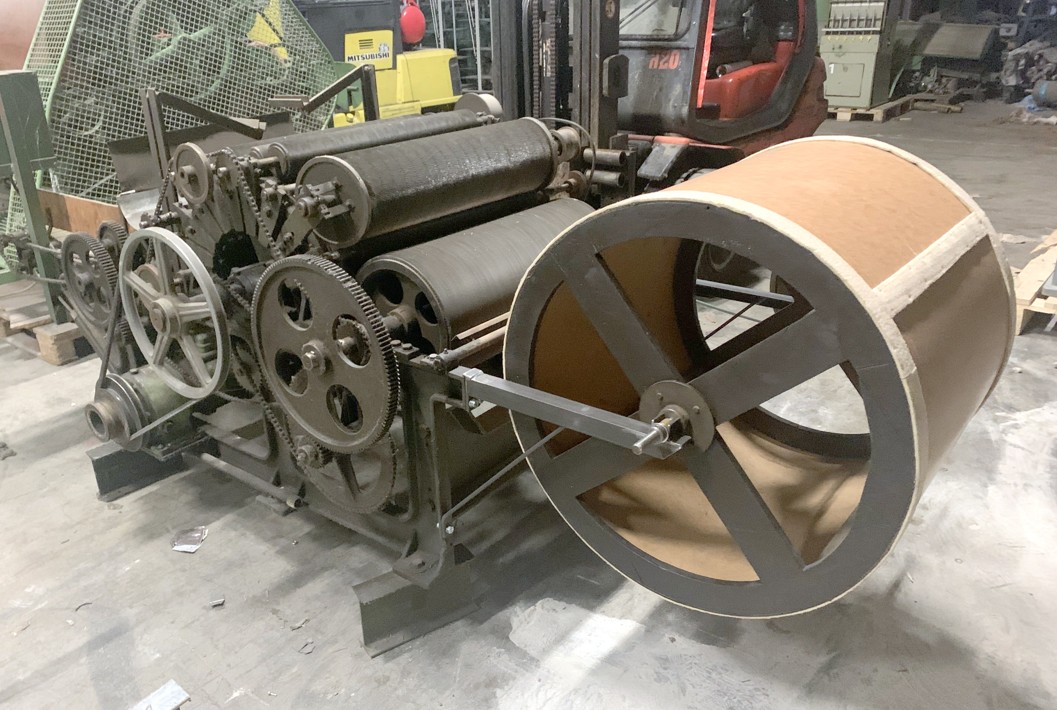

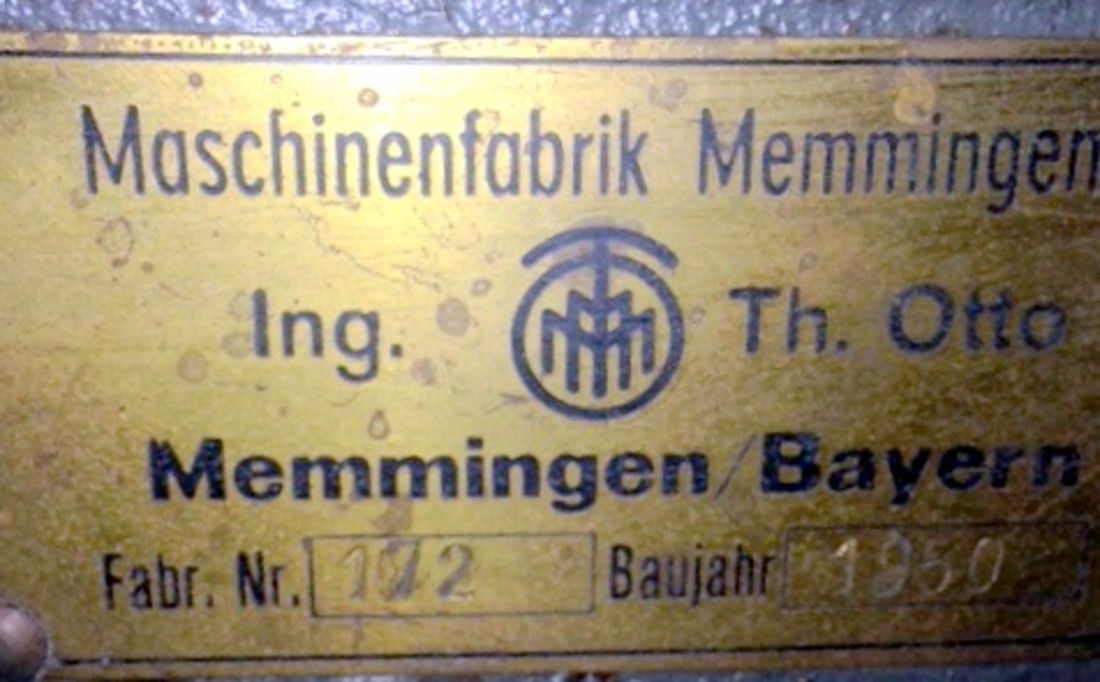

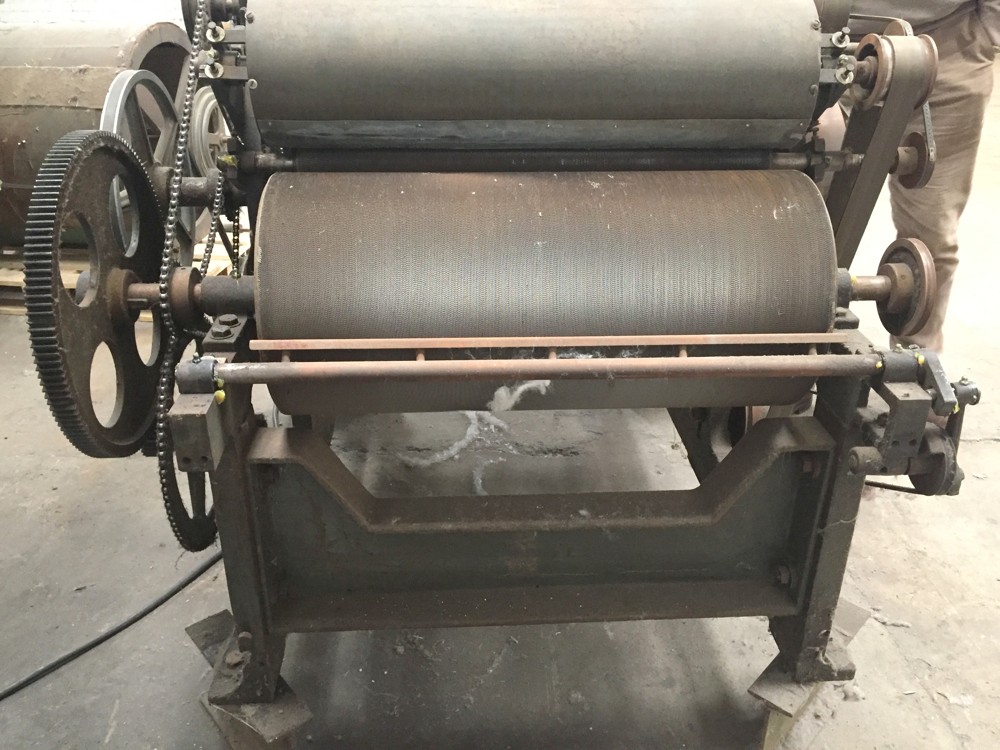

Specification:

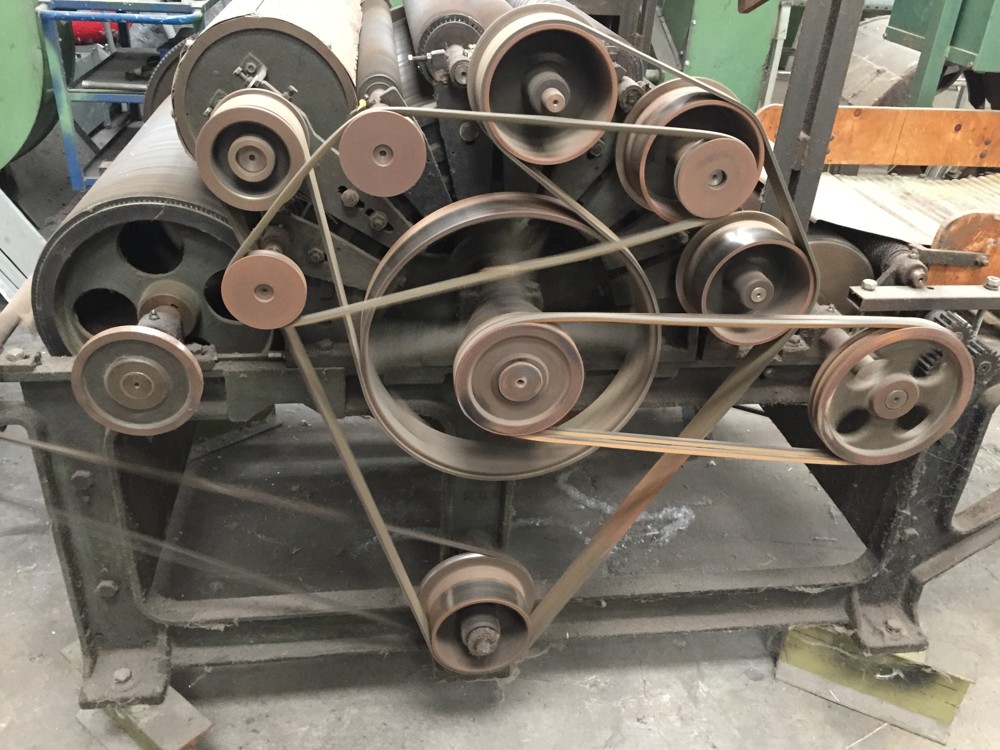

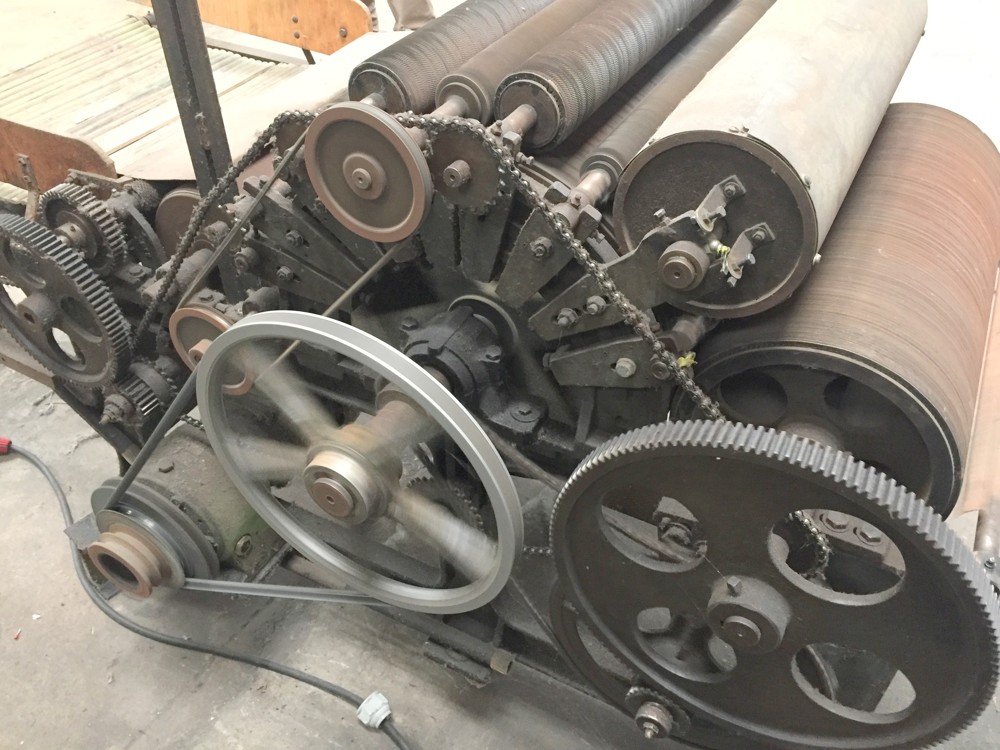

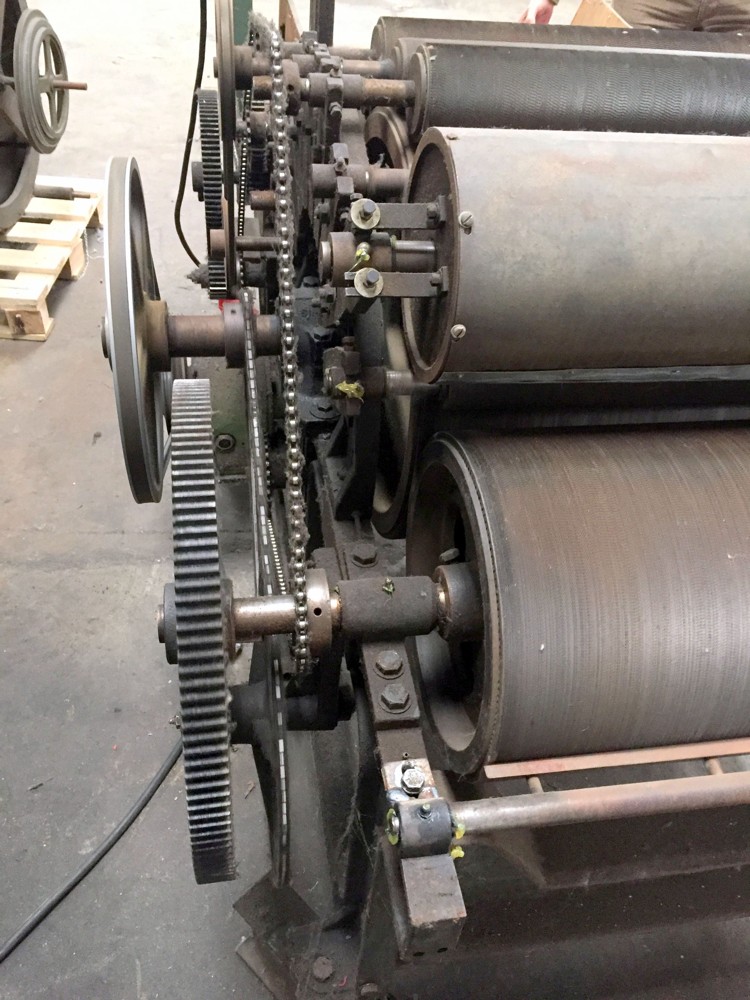

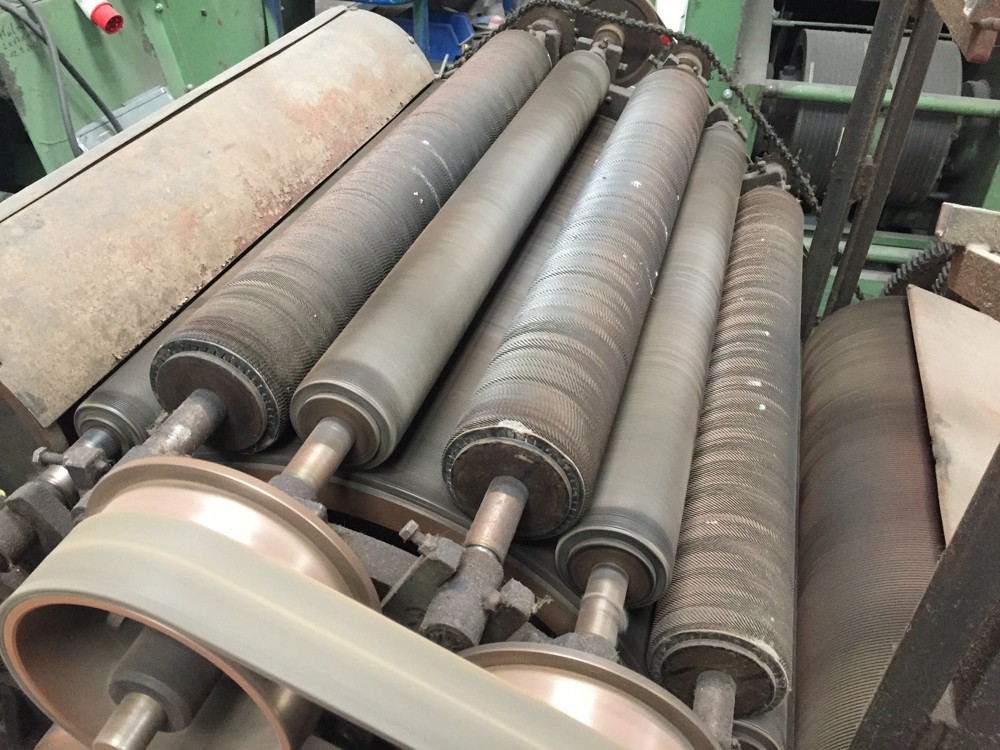

 working width 700 mm, with feeding conveyor
3 pairs worker and stripper, main drum,

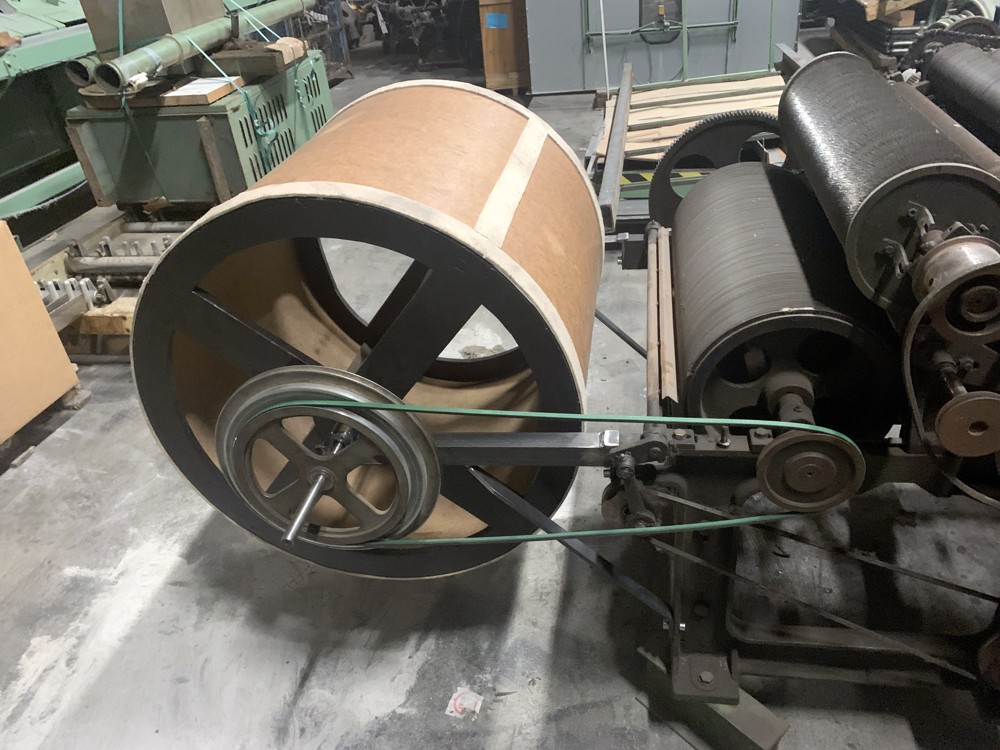

fancy roller, doffer and drum for upwinding the pile

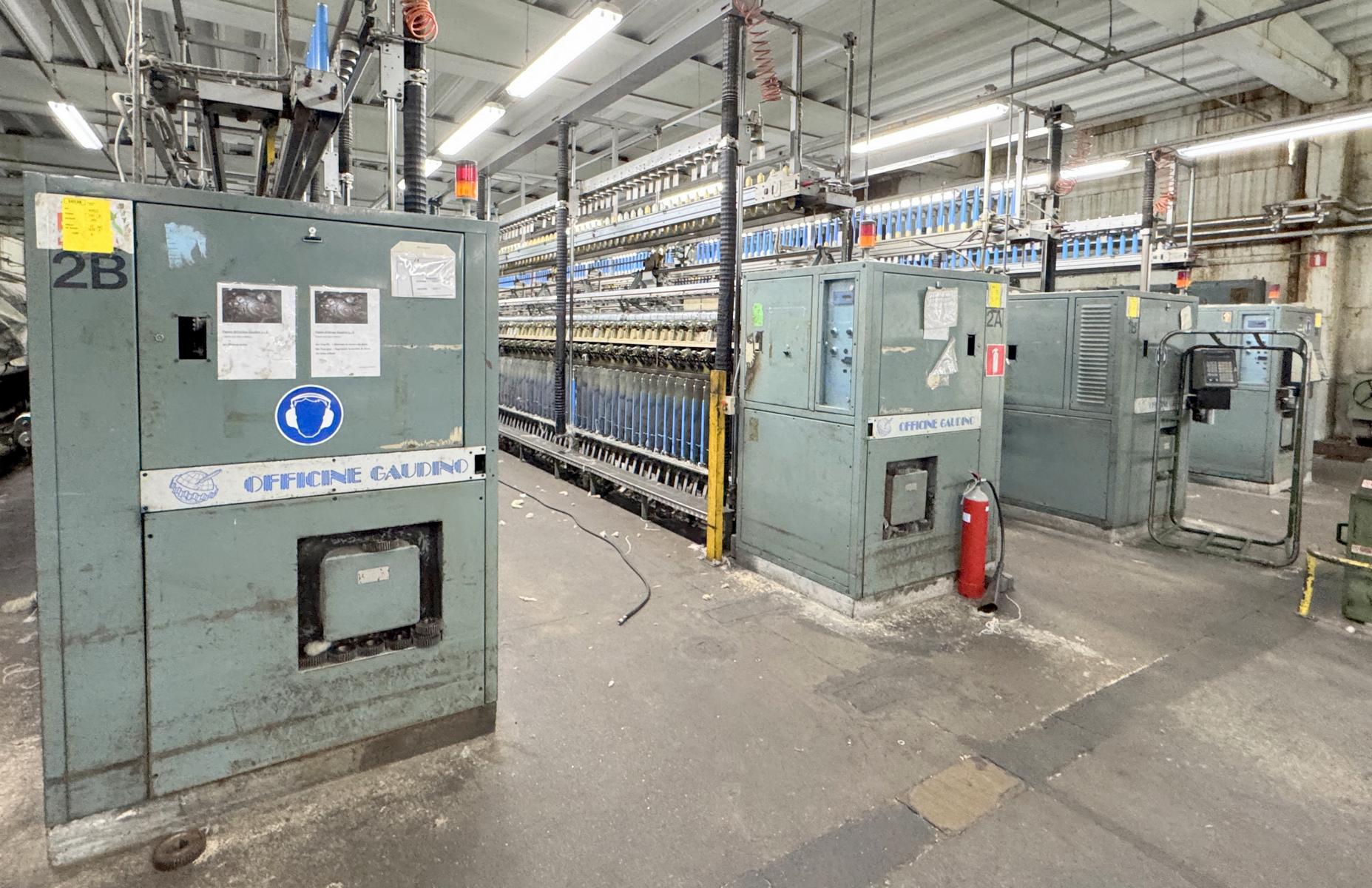

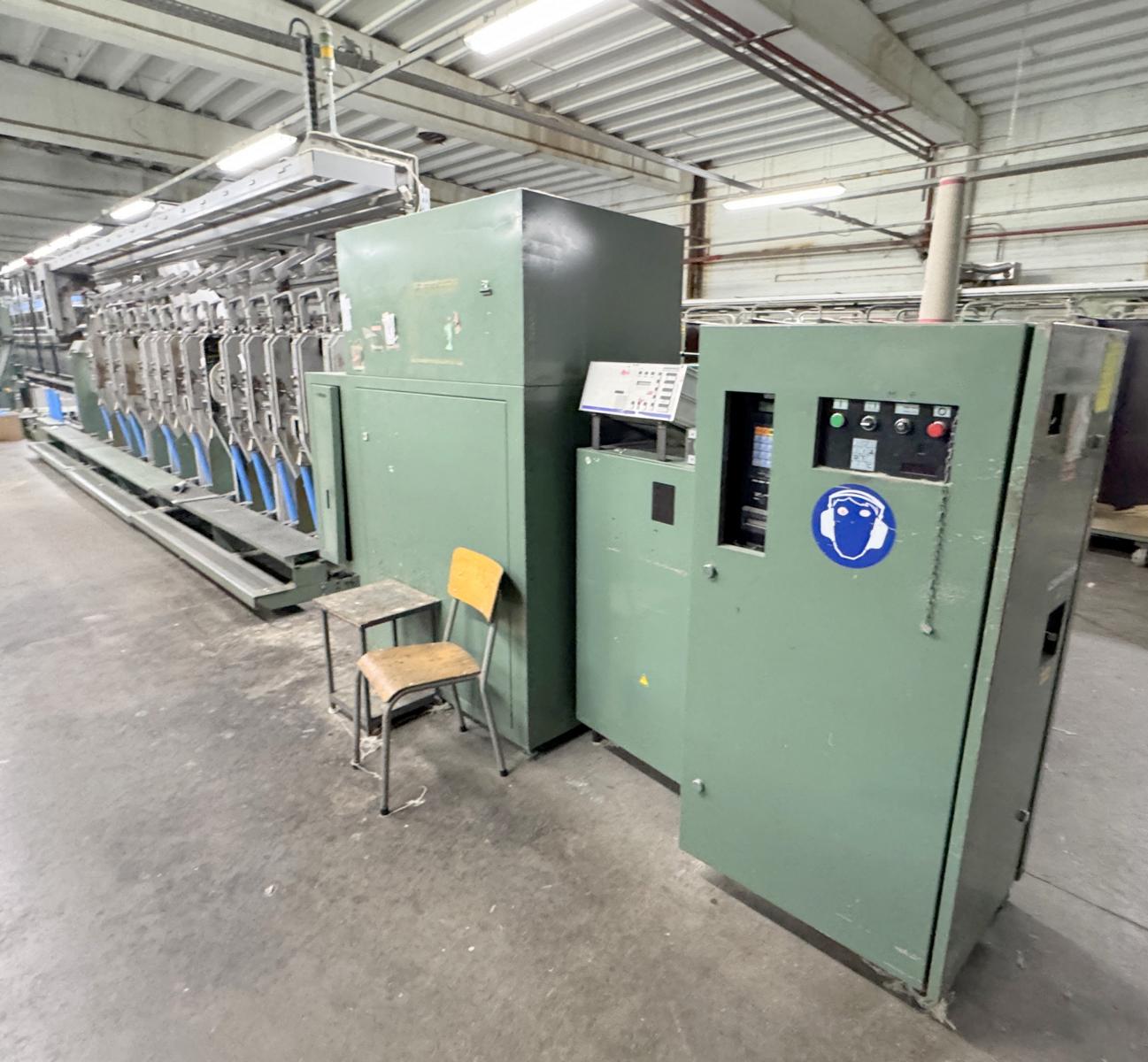

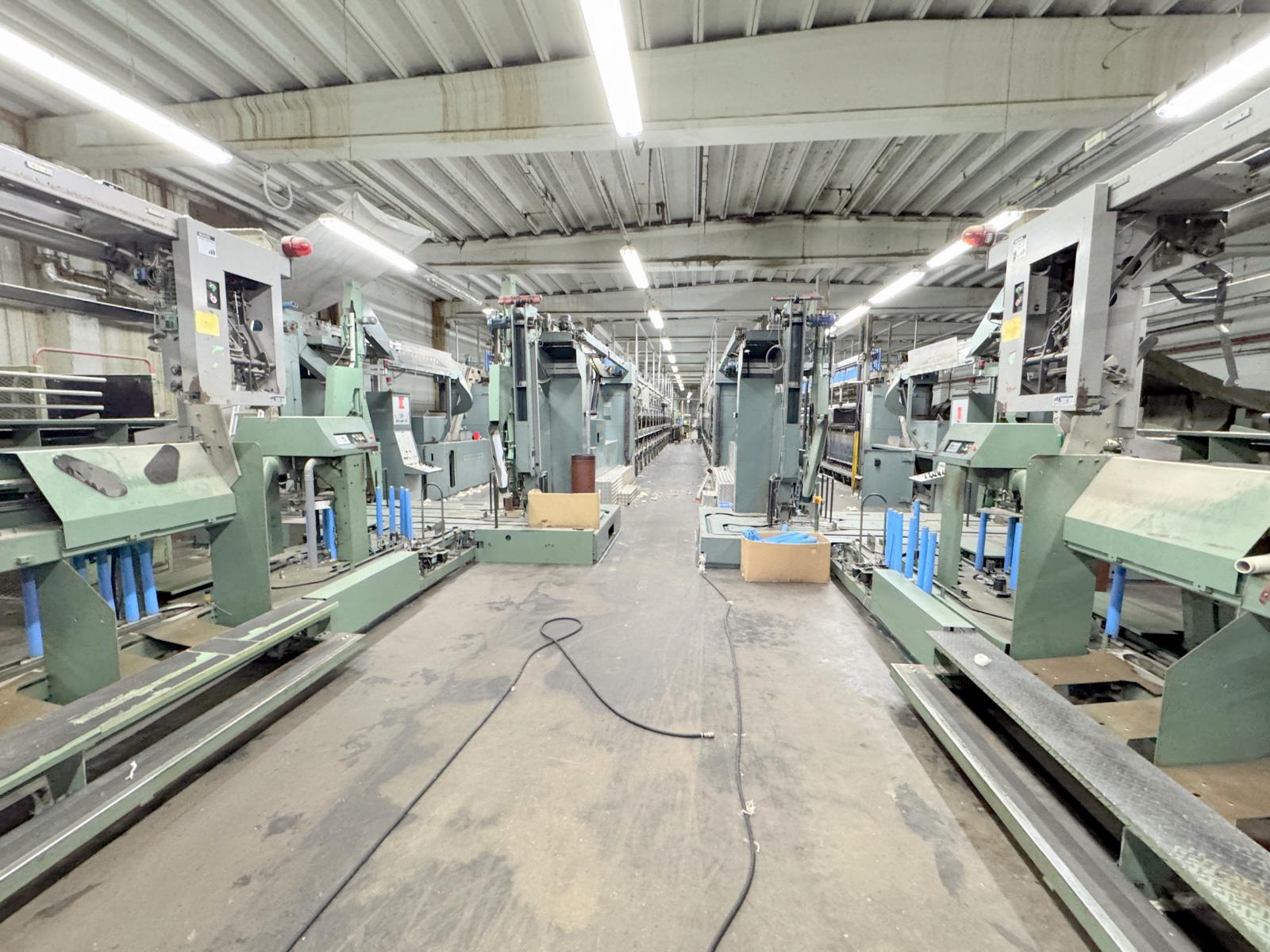

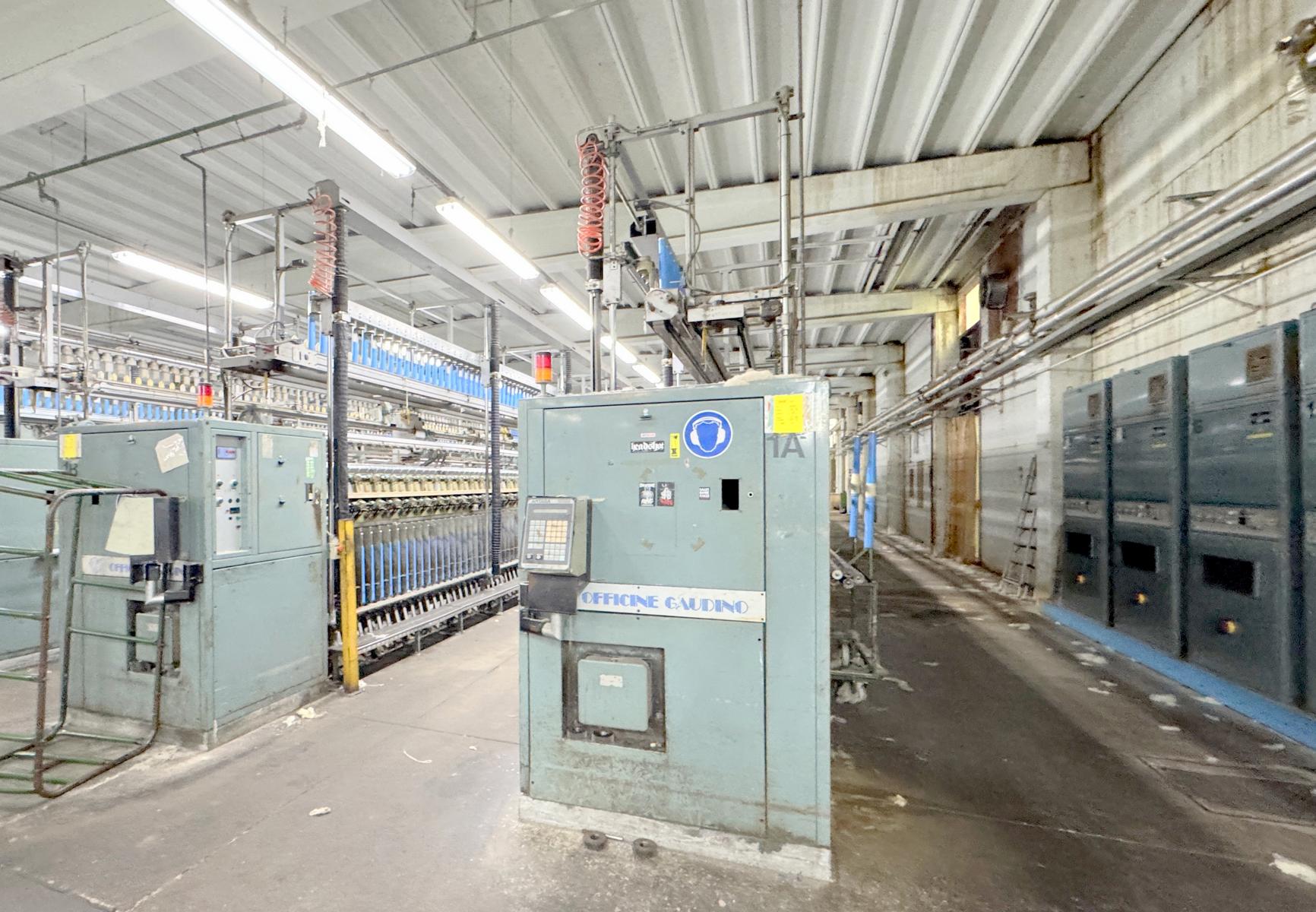

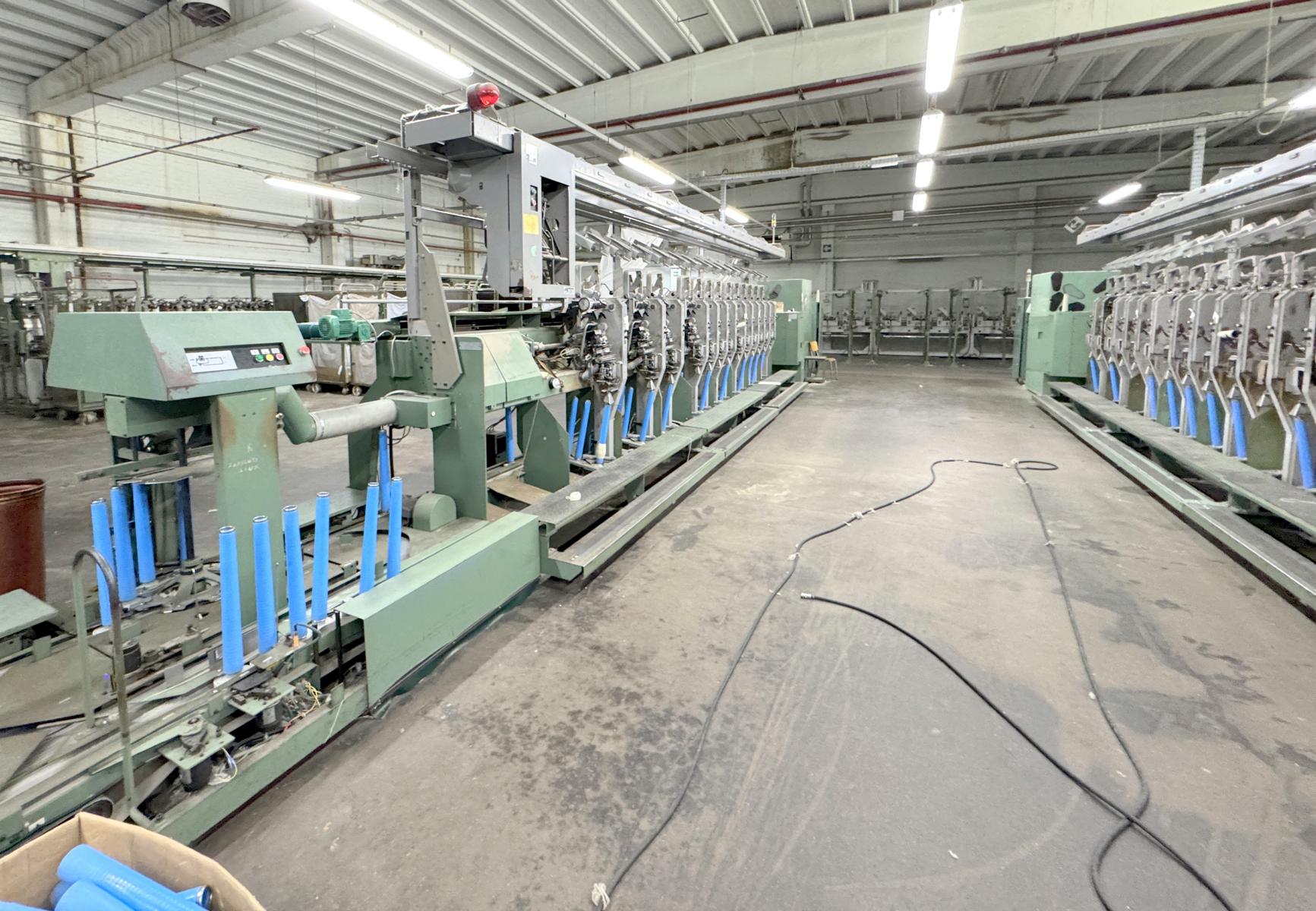

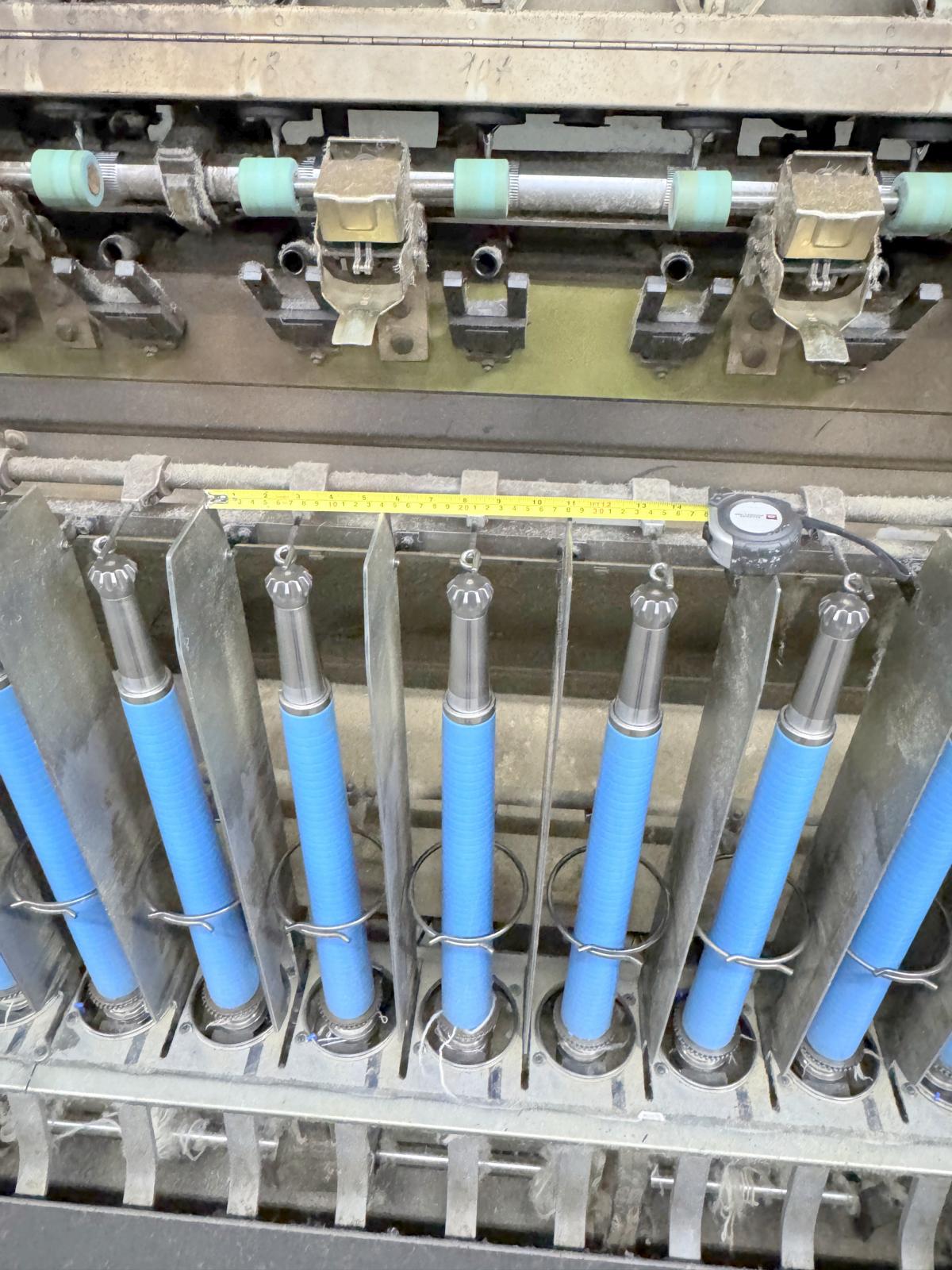

Specification:

general re-errected and overhault in 2018
with new bearing, 128 spindles, pitch 165 mm,
ring-dia. 127 mm, tubes 600 mm.

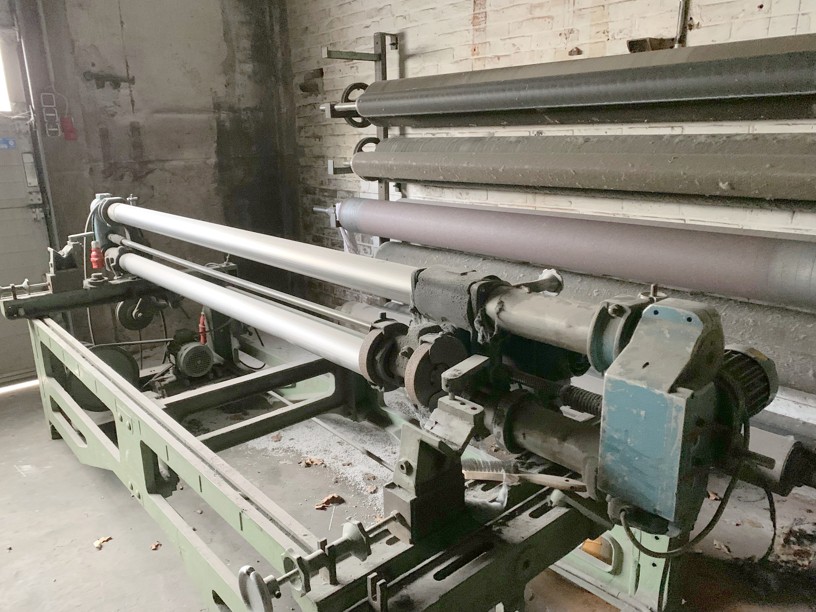

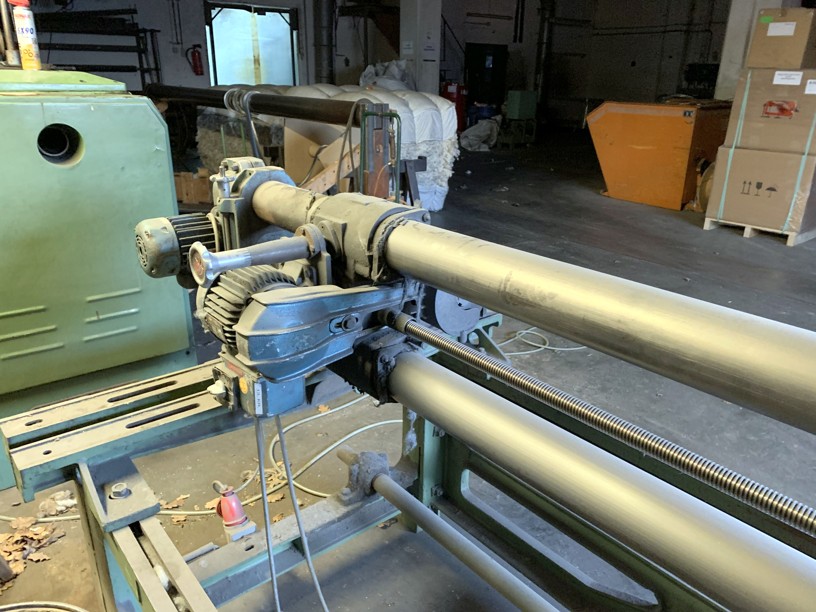

Specification:

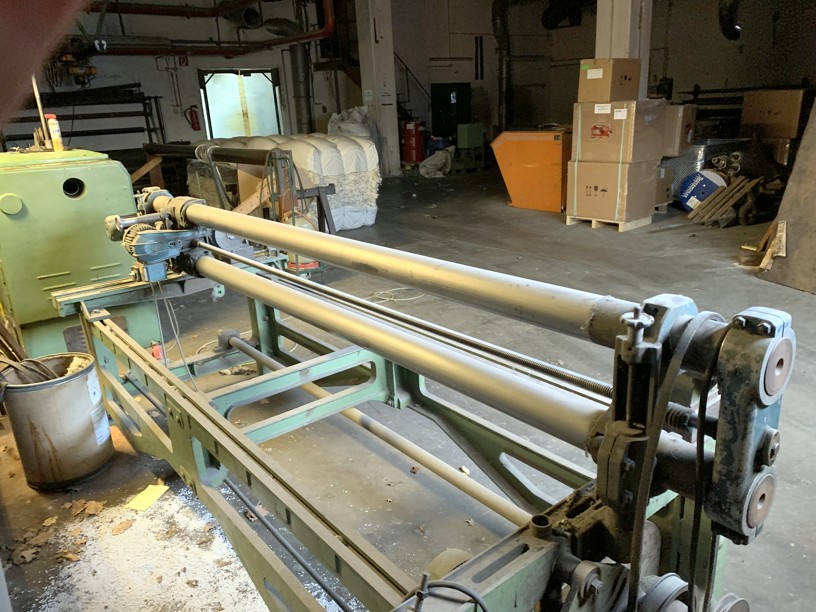

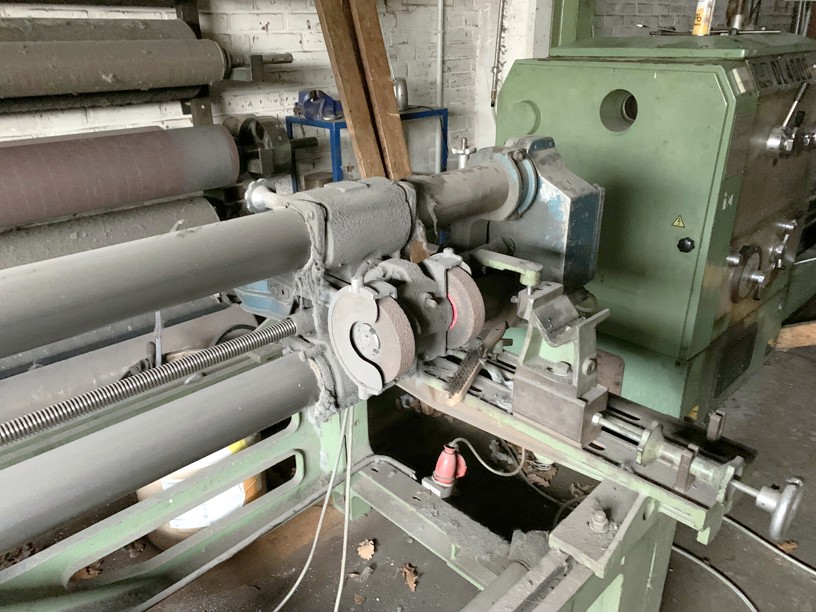

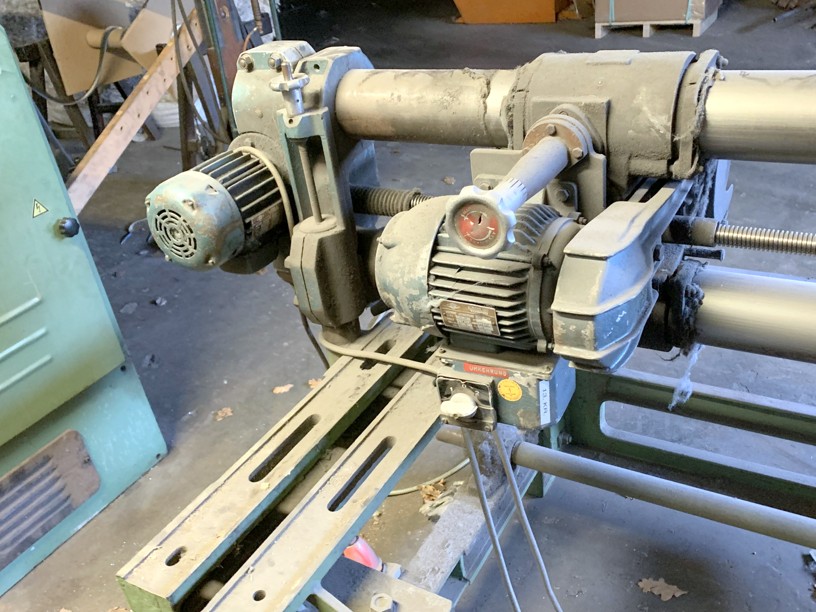

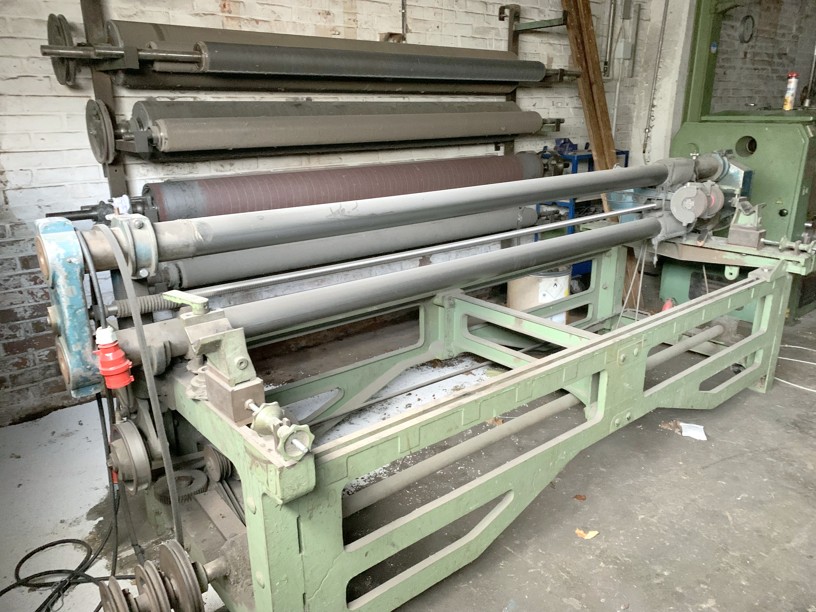

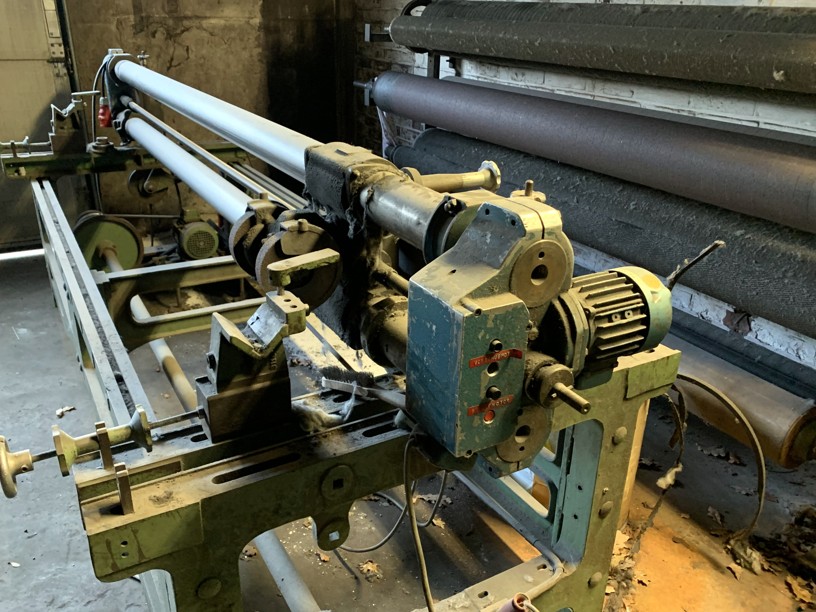

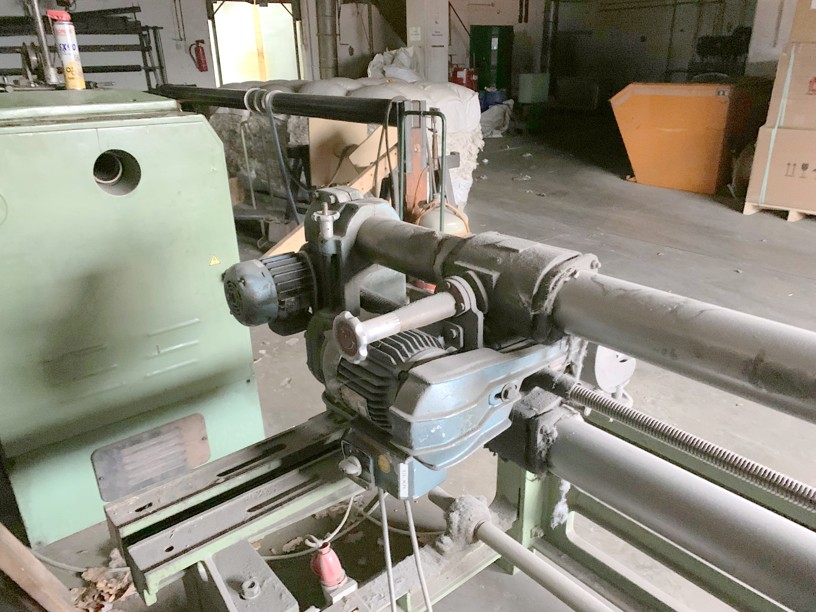

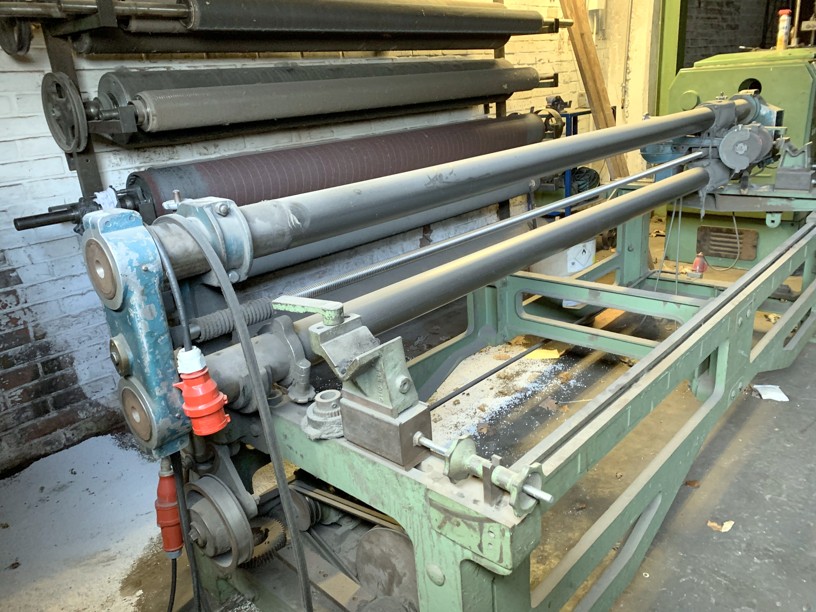

ca.1975 for grinding of carding rollers with flexible clothes and rigid wires,working width 2.500mm, traversing, with 2 grinding stones

Specification:

Wolters, ww 2.500 mm, with support

Specification:

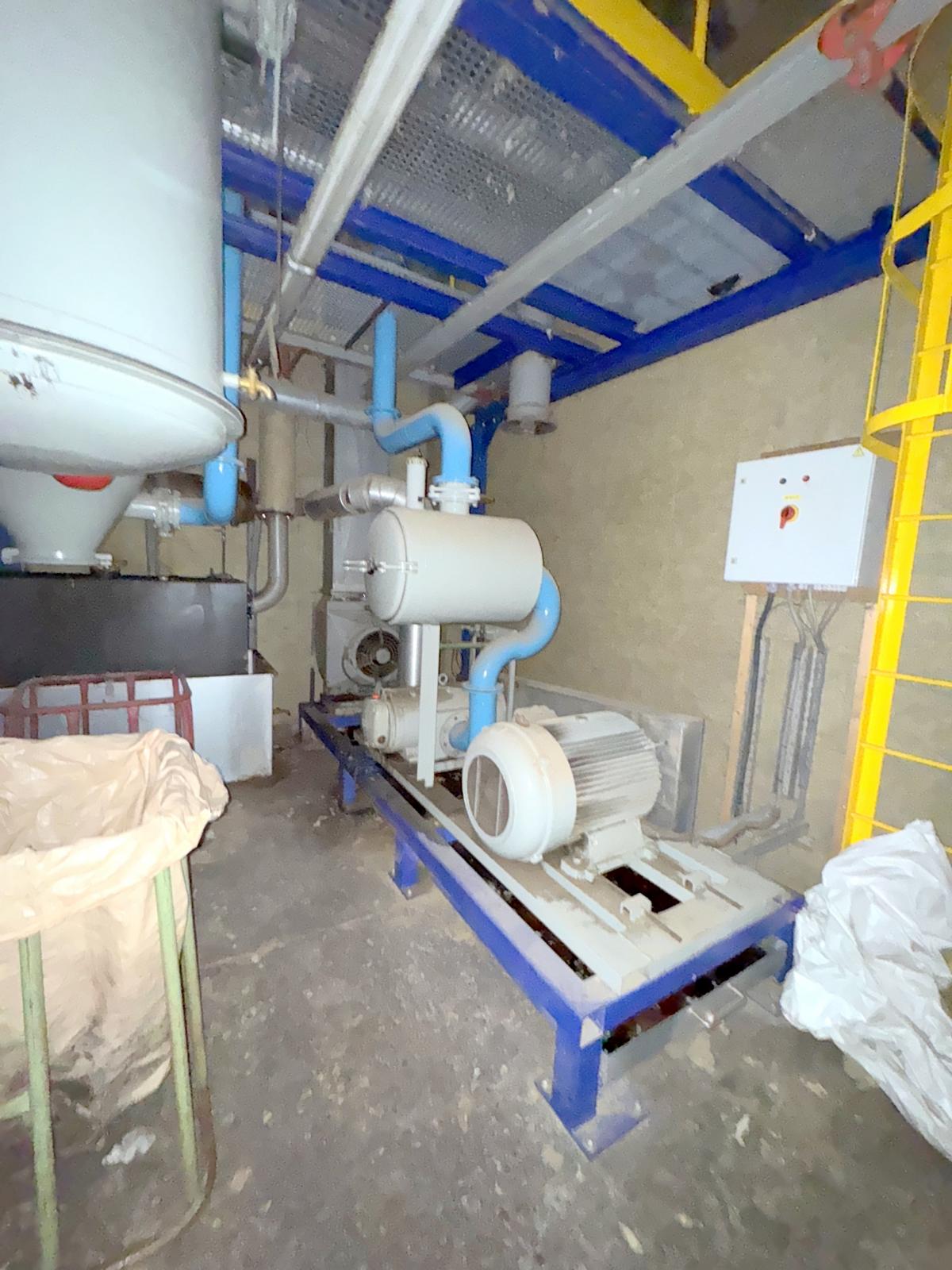

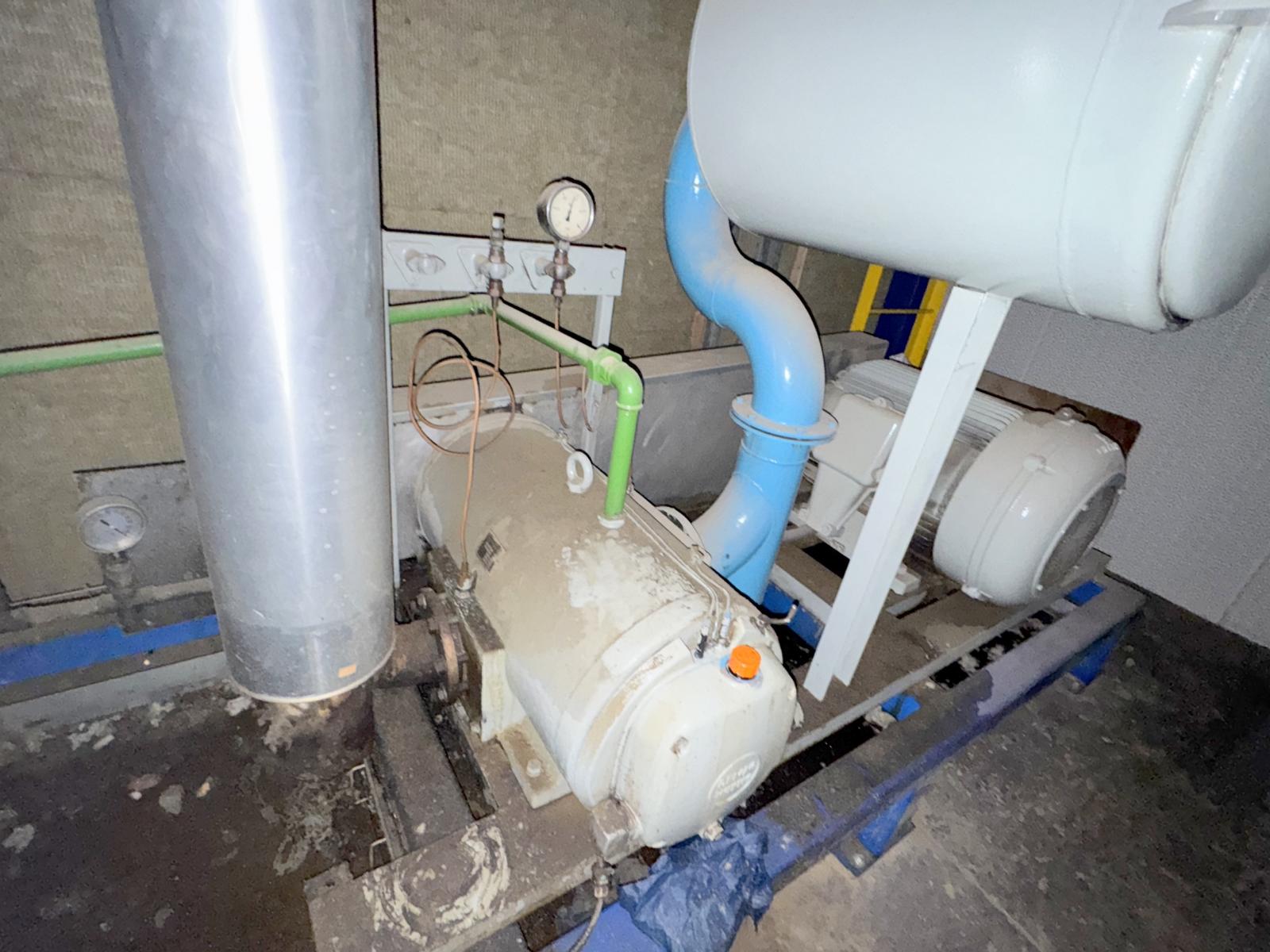

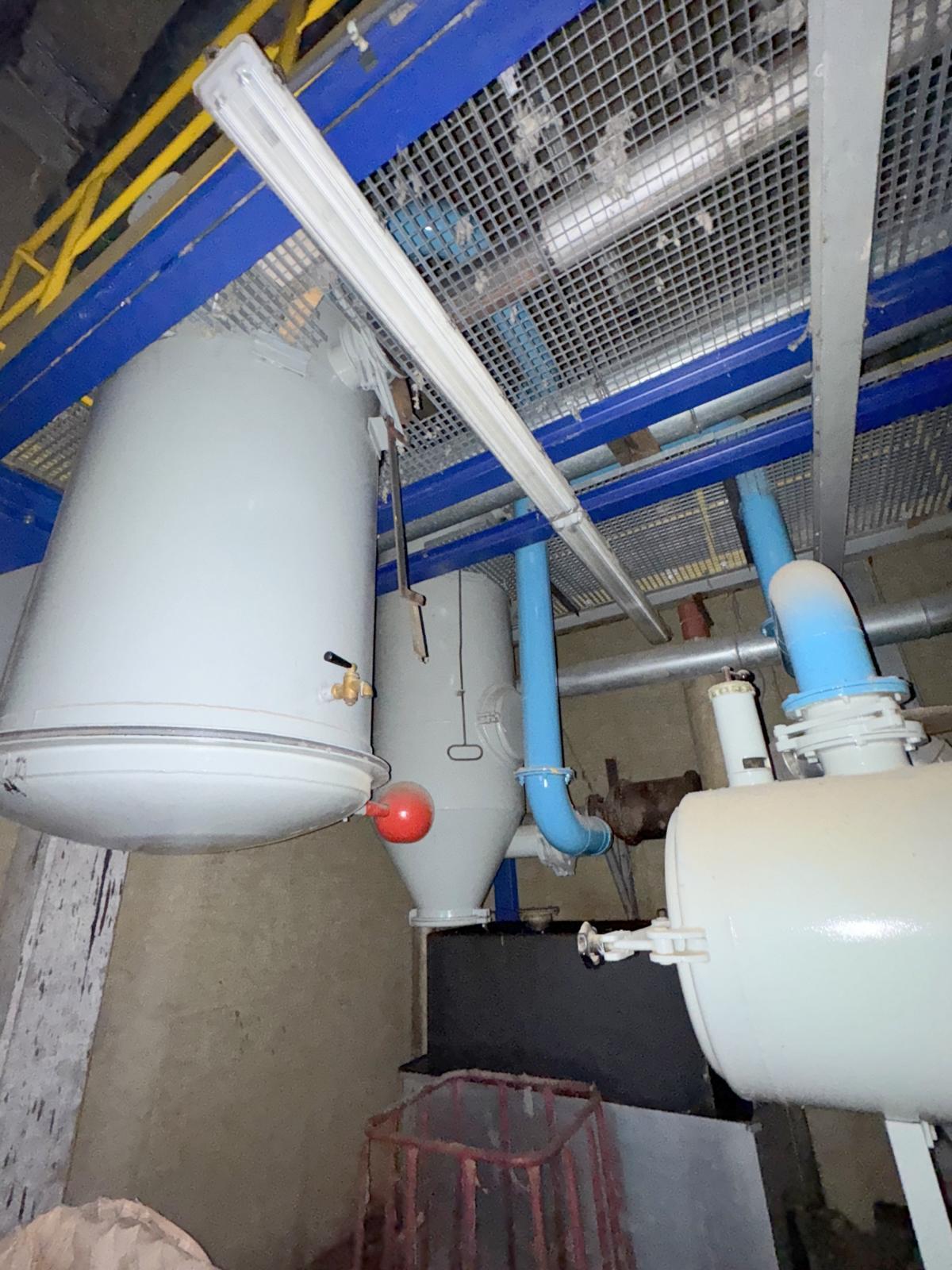

With:1 Vakuumpump Jacobi, year 1997, type Dingo WN 150AV, capacity: 1608 cbm/h, vakuum:600 mbar, with motor kW30, 380V/3Ph/50Hz in sound absorbing box1 filter tank3 waste tanksComplete with pipes, switches and controlbox

Specification:

With electr. Drive, Wolters

Specification:

Ø inside top/bottom x length45/57 x 500 mm – for Houget 180 mm pitch, 29/39,5 x 400 mm – for Spinnbau (paper and plastic)45/55 x 450 mm – for Houget 180 mm pitch, 37/49 x 500 mm – for Houget, 3 colours
