Reeling machines:
Haspel-Maschinen

Specification:

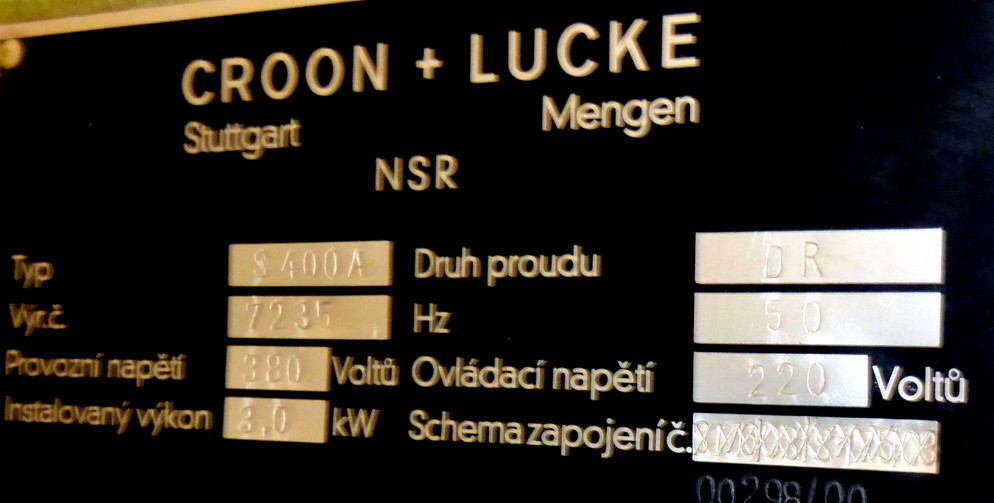

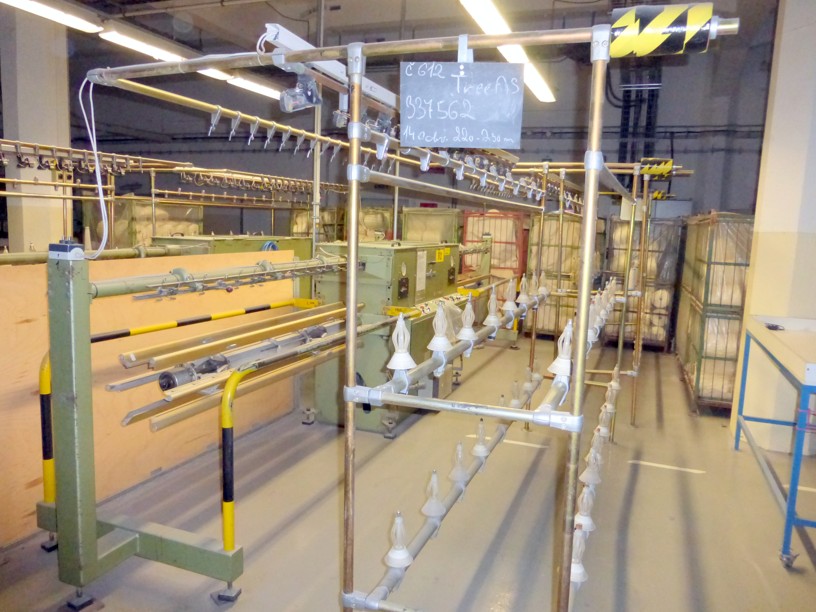

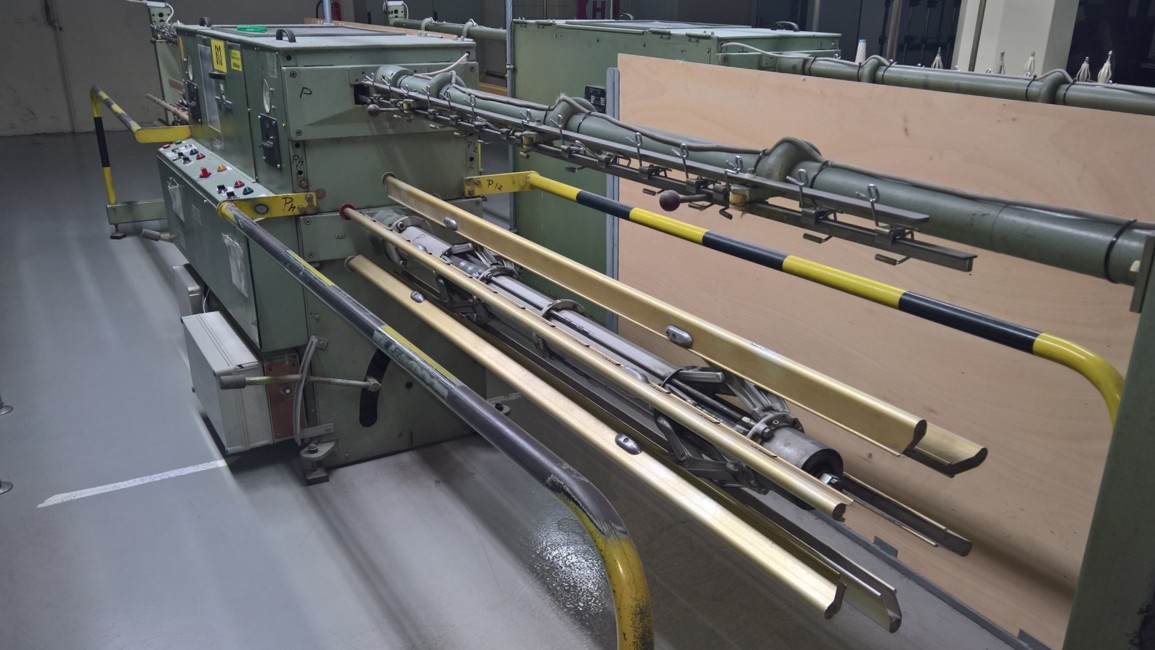

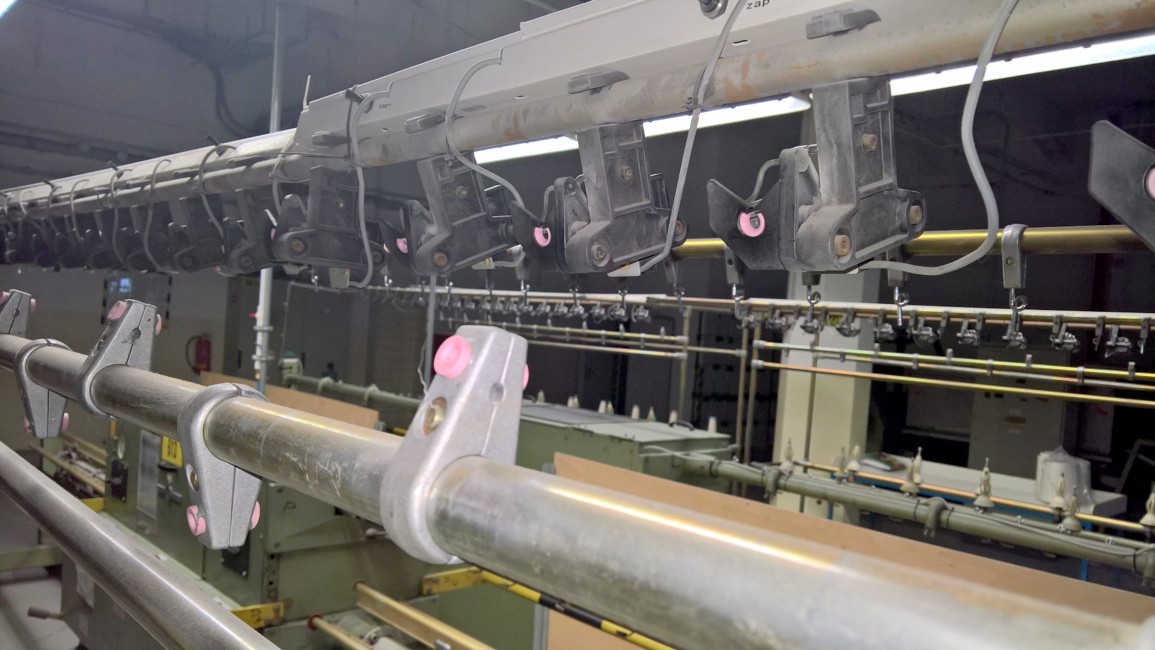

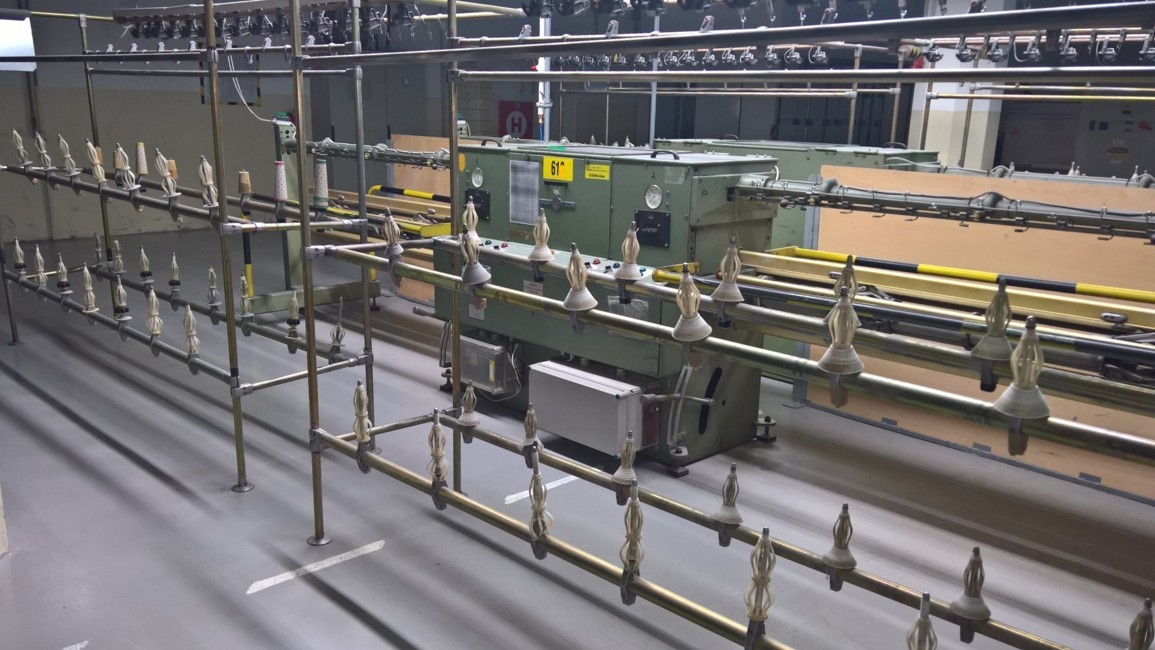

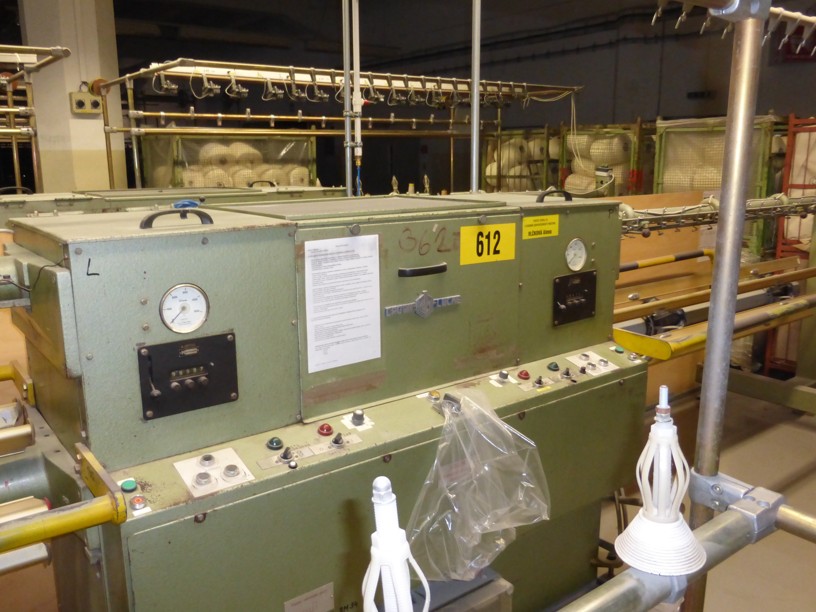

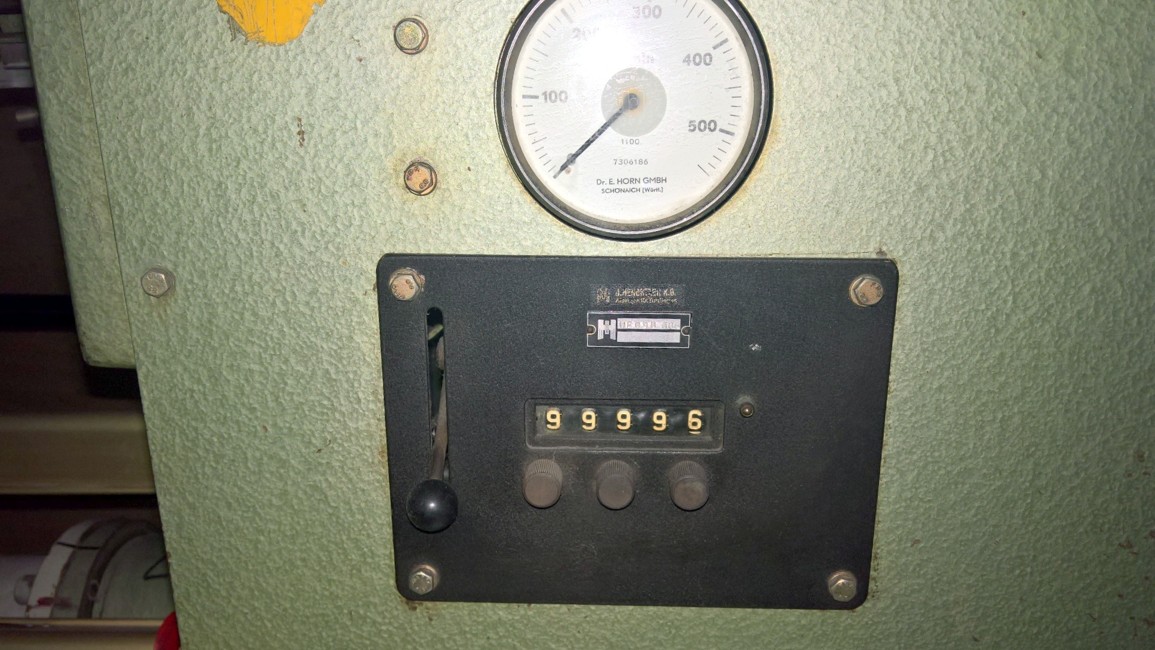

Croon & Lucke, ca. 1980, type S400A, with 2 reels, for each 15 hanks 20-1000 gr, circumference 1.400 until 1.900 mm, metercounter, 1 main motor each reel, gear motor for automatic opening and closing of reels, 15 electronic sensors each reel for yarnbreak control, very good condition, machine is still in production, 380V/50Hz.

Specification:

for 25 hanks, pitch 115 mm, circumference ca. 1,20 – 1,80 m
counter, 380V/3 Ph/ 50 Hz, good condition

Specification:

With 2 reels, for each 5 hanks until 3-4 kg, width 300 mm, circumference until 2.400 mm,Metercounter 1 main motor each reel, gear motor for automatic openingand closing of reels,380V/50Hz

Specification:

For 2 x 8 = 16 Jumbo-hanks until 3-4 kg, conic and cylindric,Circumference 1,60 – 2,30 m, width 200 – 400 mm380V/3Ph/50HzMachine is in good condition and still in running position.

Specification:

For 5 Jumbo-hanks until 3-4 kg each side conic (copsform) and cylindricCircumference 1500-2337 mm,Pitch 475 mm for hanks until 400 mm width, porcellan traverse rollers,Traverse 220 mm, variable speed, gear motor for opening and closing of reel,Meter counter, 2 carts to pull out the hanks in untied form.The reel can start again prompty.During the reel is running, the hanks on the cart can be tied up.

Specification:

For 5 Jumob.hanks until 3-4 kg each side conic (copsform) and cylindricCircumference 1300-1900 mm,Pitch 475 mm for hanks until 400 mm width, porcellan traverse rollers,Meter counter, 2 carts to pull out the hanks in untied form.The reel can start again promptly.During the reel is running, the hanks on the cart can be tied up.
